Cisco Catalyst 9200CX 12-Port PoE+ Compact Switch, 240W, Network Advantage

VENDOR: CISCO Mfg Part#: C9200CX-12P-2X2G-A UPC#: 889728447119
  • CATALYST 9000 COMPACT SWITCH 12 PORT POE+, 240W, ADV
1 1

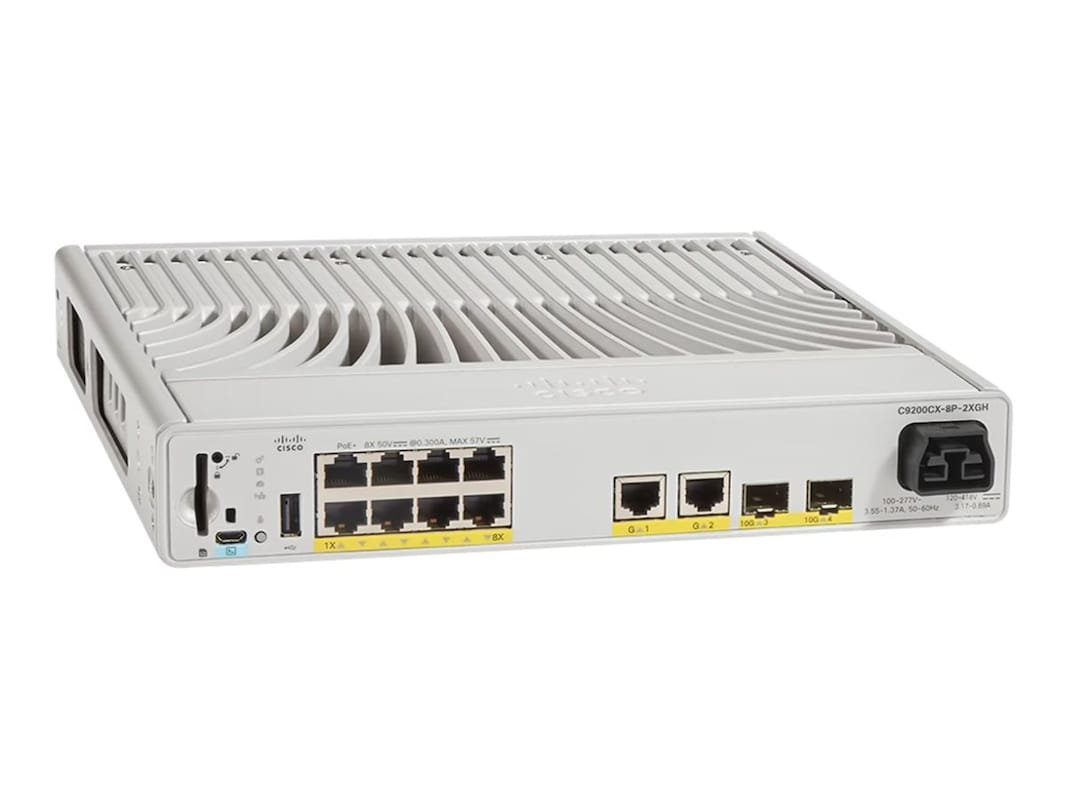

Photo is for illustration purposes only. Actual product may be different.
$1,825.45
$1,825.45
Sale Sold out
MSRP: $2,677.32
Shipping calculated at checkout.
  • - 12-port 1G Ethernet with PoE+ and 240W power budget
  • - 2x 10G SFP+ and 2x 1G copper uplink ports for high-speed connectivity
  • - Layer 2 and Layer 3 support including OSPFv3, RIPv1/v2, and IPv6 routing
  • - 4GB RAM and 8GB flash memory for advanced features and updates
  • - Jumbo frame support up to 9198 bytes and MAC table for 32,000 entries
  • - Compact 1U design with fanless operation and operating temperature range from -5°C to 45°C

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Enterprise-ready feature set including Cisco IOS XE, SNMP management, and AES encryption for scalable and secure deployments
  • - Compact, fanless form factor suitable for edge environments with silent operation and temperature tolerance
  • - High MTBF of 704,430 hours and limited lifetime warranty ensures long-term reliability and outstanding ROI

Product Overview

The Cisco Catalyst 9200CX Compact Series switch offers a high-performance, compact networking solution for enterprise edge deployments. With 12 1G PoE+ ports and 240W power budget, it supports a wide range of network devices. It runs on Cisco IOS XE and supports Layer 2 and Layer 3 protocols including OSPFv3 and RIPv2. AES encryption and remote management protocols such as SNMP and DHCP enable secure and streamlined operations.

Equipped with 2x10G SFP+ and 2x1G copper uplinks, the switch supports high-speed connections and scalability. It features 4GB RAM, 8GB flash memory, jumbo frame support, and is compliant with multiple IEEE standards. The fanless design fits in constrained environments while maintaining silent operation. With a high MTBF of 704,430 hours and limited lifetime warranty, it ensures dependable uptime and ROI across critical deployments.

Specifications

CATALYST 9000 COMPACT SWITCH 12 PORT POE+, 240W, ADV
Network Device Type Switch
Model C9200CX-12P-2X2G-A
Form Factor 1U
Connectivity Technology Wired
Data Transfer Rate 10 Gbps
Data Link Protocol Gigabit Ethernet
Power Over Ethernet (PoE) Support Yes
PoE Power Consumption 240W
MAC Address Table Size 32000
Interfaces 12-port 1G, 2x10G and 2x1G, PoE+
Jumbo Frame Support 9198 bytes
Remote Management Protocol SNMP
Remote Management Protocol Syslog
Remote Management Protocol DHCP
Routing Protocol IPv4, IPv6, RIPv1, RIPv2,OSPFv3
Encryption Algorithm AES
SFP+ Ports 2
Status Indicators LED indicators
RAM / Total Installed Size 4 GB
Flash Memory / Installed Size 8 GB
SFP+ Ports 2
Interfaces 12-port 1G, 2x10G and 2x1G, PoE+
Networking Compliant Standards IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3bt
Power / Device Type Power Supply
Media Layer Supported Layer 2 and Layer 3
Power / Provided (W) 315 Watt
Uplink Port 2x 1G copper, 2x 10G SFP+ fixed uplinks, Micro USB connector
Power / Voltage Required 100 to 240 VAC, 50 to 60 Hz
MTBF 704430 hours
Width 10.6 Inch
Depth 9.6 Inch
Height 1.73 Inch
Weight 6.6 lbs.
Features Plug and Play (PnP) enabled; Cisco IOS XE;
Service & Support Type Limited Lifetime Warranty
Min Operating Temperature -5 celsius
Max Operating Temperature 45 celsius (1500m);
Min Storage Temperature -40 celsius
Max Storage Temperature 70 celsius
COO MEXICO
TAA compliance Yes
