Cisco Catalyst 9300 24-Port UPOE Network Advantage Switch

VENDOR: CISCO Mfg Part#: C9300-24UXB-A UPC#: 889728255820
  • Catalyst 9300 Deep Buffer 24p m
1 1

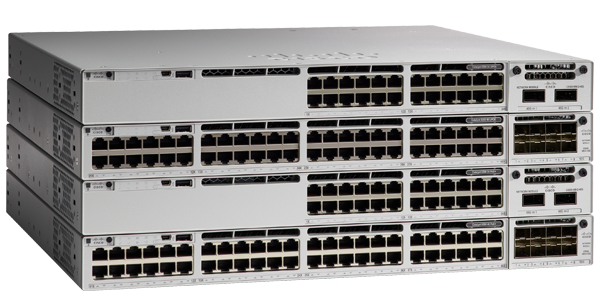

Photo is for illustration purposes only. Actual product may be different.
$12,500.94
$12,500.94
Sale Sold out
MSRP: $18,334.72
Shipping calculated at checkout.
  • 24-port multigigabit UPOE support with 100/1000/2.5G/5G/10GBase-T interfaces
  • 560W PoE power budget with optional redundant hot-plug power supply
  • Layer 3 managed, stackable design with Cisco StackWise-480 and StackPower technologies
  • Advanced routing protocols: OSPF, RIP, PIM, VRRP, policy-based routing
  • Switching capacity of 640 Gbps (1.12 Tbps with stacking) and forwarding up to 833.33 Mpps
  • Robust Layer 2/3 features, 64MB packet buffer, and full Cisco IOS Universal OS support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-density UPOE connectivity for power-demanding deployments like Wi-Fi 6 and IoT
  • Scalable architecture with StackWise-480 and StackPower enables flexible growth and power redundancy
  • Network Advantage license supports enterprise-grade routing, traffic segmentation, and monitoring

Product Overview

The Cisco Catalyst 9300 Deep Buffer 24-Port Managed Switch (C9300-24UXB-A) is purpose-built for enterprise-grade access layer networks requiring scalable and secure multilayer switching. It offers 24 multigigabit UPOE ports supporting up to 10GBase-T, delivering both power and bandwidth over a single connection—ideal for high-density deployments like Wi-Fi 6 access points, surveillance systems, and IoT devices. With a generous 560W PoE budget and hot-swappable power supplies, this model ensures high availability and minimal downtime.

Underpinned by Cisco's Network Advantage licensing, this switch includes advanced Layer 3 routing capabilities such as OSPF, PIM, and VRRP, along with Flexible NetFlow monitoring, ACL scalability, and policy-based routing. With a switching capacity of 640 Gbps (up to 1.12 Tbps with stacking) and a forwarding rate of up to 833.33 Mpps, it ensures strict performance standards under heavy workloads. Integrated Cisco StackWise-480 and StackPower technologies allow seamless scalability and power redundancy across the stack.

Security and automation are built-in, supporting protocols like 802.1X authentication, SNMP, and RESTCONF. Managed via Cisco IOS Universal, it’s designed for long-term reliability with a 64MB packet buffer, 64K MAC address table, and robust compliance to environmental standards—all in a compact 1U rack-mountable unit.

Specifications

Product Overview
Product Type Managed Layer 3 Stackable Switch
Form Factor 1U Rack-mountable
Weight 18.19 lbs
Power Requirements AC 120/230 V (50 - 60 Hz)
Power Redundancy Optional
Power Provided 1100 Watt
Power Supply Type Internal hot-plug
MTBF 288.520 hours
PoE Type UPOE
PoE Budget 560 W
Installed Power Supply Units 1
Max Supported Power Supply Units 2

Cloud Management & Licensing
Management Software Cisco IOS Universal
Network Advantage Licensing Included
Management Interface CLI, SNMP, RMON, RESTCONF, NETCONF

Routing & Performance Features
Routing Protocols Supported OSPF, IS-IS, RIP-1/2, IGMP, VRRP, PIM-SM/SSM, OSPFv3, RIPng, PBR
IPv4 Routing Table Entries 64000
IPv6 Routing Table Entries 32000
Flexible NetFlow Entries 256000
VLAN IDs Supported 4094
Switched Virtual Interfaces (SVIs) 2000
QoS Scale Entries 18000

Compliance & Origin
Compliant Standards IEEE 802.3, 802.1D/Q/p/x/s/w/x, 802.3af/at/u/ab/ad, CISPR 22/24, UL 60950-1, RoHS, FCC Part 15 Class A, EN 60950-1, VCCI Class A, CAN/CSA-C22.2 No. 60950-1
Country of Origin China / United States
TAA Compliance Yes

Interfaces
Total Ethernet Ports 24 x 100/1000/2.5G/5G/10GBase-T (UPOE)
Interface Type 10 Gigabit Ethernet
Expansion Slots 1 (total) / 1 (free) x expansion slot
USB Ports 1 x USB 2.0
Switching Capacity 640 Gbps
Switching Capacity with Stacking 1.12 Tbps
Forwarding Rate (Standalone) 476.19 Mpps
Forwarding Rate (Stacked) 833.33 Mpps
MAC Address Table Size 64K entries
Jumbo Frame Support 9198 bytes

Advanced Security Features
Encryption 128-bit AES
Authentication 802.1X
Access Control Lists (ACL) Yes (18000 ACL scale entries)
Private VLAN Support Yes
CoPP (Control Plane Policing) Yes

Physical & Environmental
Width 17.5 in
Depth 18.5 in
Height 1.7 in
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Operating Humidity Range 5 - 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Storage Humidity Range 5 - 90% (non-condensing)
Cooling Fans 3 integrated fans
