| Product Type | Managed Layer 3 Stackable Switch |
| Model | Cisco Catalyst 9300L-24UXG-4X-A |
| Form Factor | Rack-mountable |
| Number of Ports | 24 x 10/100/1000 (UPOE) + 4 x 10G SFP+ uplinks |
| PoE Type | UPOE (Universal Power over Ethernet) |
| PoE Budget | 880 W |
| Switching Capacity | 272 Gbps (592 Gbps with stacking) |
| Forwarding Rate | 202.38 Mpps (440.47 Mpps with stacking) |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| MTBF | 332,640 hours |
| Power Supply | Internal hot-plug power supply |
| Power Provided | 1100 Watt |
| Redundant Power Support | Yes (optional) |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
Cisco Catalyst 9300L 24-Port UPOE Switch, Network Advantage

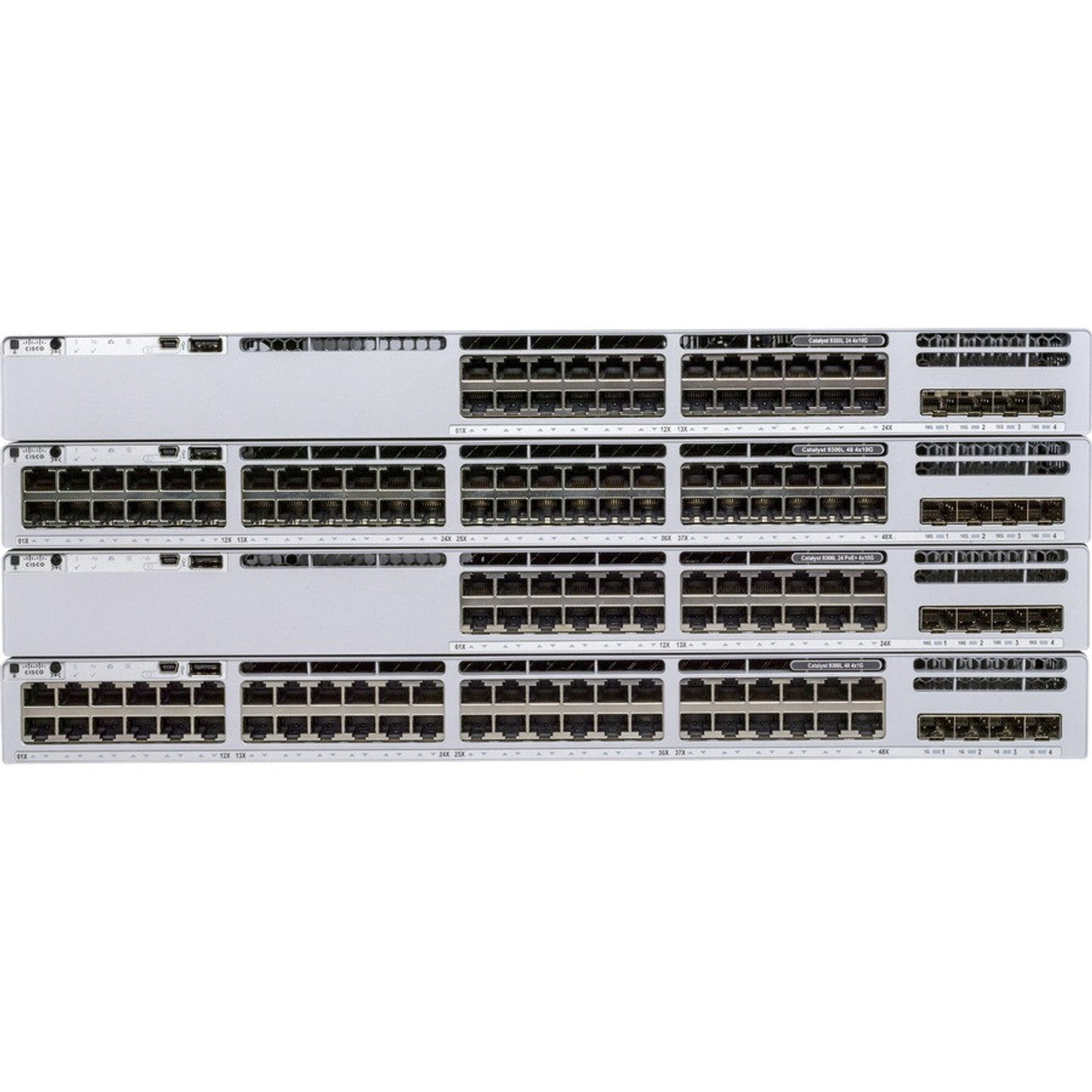

Photo is for illustration purposes only. Actual product may be different.
Regular price
$6,893.39
Regular price
Sale price
$6,893.39
Unit price
per
MSRP: $10,110.30
Shipping calculated at checkout.
Couldn't load pickup availability
- 24 x 10/100/1000 UPOE ports with 880W PoE budget for high power delivery
- 4 x 10 Gigabit SFP+ uplink ports for high-speed connectivity
- Switching capacity of 272 Gbps (592 Gbps with stacking)
- Support for advanced L3 routing protocols including OSPF, EIGRP, and PIM
- Remote management via SNMP, NETCONF, RESTCONF, gRPC, and more
- Enhanced security with MACsec encryption, secure boot, and Cisco Trust Anchor module
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Designed for high-density enterprise access with 880W UPOE PoE budget to power multiple devices
- StackWise-320 support and Network Advantage licensing provide investment protection and scalability
- Industry-leading reliability with 332,640-hour MTBF and a limited lifetime replacement warranty
Product Overview
The Cisco Catalyst 9300L-24UXG-4X-A is a managed layer 3 switch built for scalability, high performance, and secure enterprise networking. As part of Cisco’s Catalyst 9300 Series, this model supports 24 UPOE-enabled multi-Gigabit (mGig) ports and four 10G SFP+ uplinks, offering up to 272 Gbps switching capacity—592 Gbps with stacking. Featuring Network Advantage licensing, it enables advanced policy-based and secure networking capabilities.
Designed for high-density access layers, this switch includes a robust 880 W PoE budget, Cisco StackWise-320 compatibility, and a broad range of L3 routing protocols. Security and manageability are enhanced via support for MACsec encryption, secure boot, and remote administration through modern protocols such as gRPC, SNMPv3, and YANG.
Built with enterprise reliability in mind, the unit is rack-mountable, offers optional redundant power, and withstands temperatures from 23°F to 113°F. With extensive standards compliance and a limited lifetime warranty, this switch is a future-ready networking investment for growth-driven organizations.
Specifications
Product Overview
Wireless Features
| Wi-Fi Certification | Wi-Fi CERTIFIED 6 (for ecosystem interoperability) |
Compliance & Origin
| Country of Origin | China / Mexico / Vietnam |
| TAA Compliant | Yes |
| Certifications | UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, FCC Part15 Class A, VCCI, ICES-003, EN 55032 Class A, CISPR 32 Class A, EN 300 386 |
| Standards Compliance | IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.1p, 802.1Q, 802.3ad, 802.1D, 802.1W, 802.1X, 802.1AE, 802.1s, 802.3bt, IEEE 1588v2 |
Advanced Security Features
| MACsec Encryption | Yes (802.1AE with AES-128/256) |
| Secure Boot | Yes |
| Cisco Trust Anchor | Yes |
| Access Control Lists (ACL) | Yes |
| 802.1X Authentication | Yes |
| Policy-Based Routing (PBR) | Yes |
| Private VLAN Support | Yes |
Interfaces
| 10/100/1000 UPOE Ports | 24 |
| 1G/2.5G/5G/10G MultiGig Ports | 8 |
| 10G SFP+ Uplink Ports | 4 |
| Stacking Port | 1 |
| Management (LAN) Port | 1 x RJ-45 |
| Console Port | 1 |
| USB Ports | 1 x USB 2.0 |
| Maximum Jumbo Frame Size | 9198 bytes |
Physical & Environmental
| Width | 17.5 in |
| Depth | 1.7 in |
| Height | 19.2 in |
| Weight | 15.72 lbs |
| Operating Temperature Range | 23 °F to 113 °F |
| Storage Temperature Range | -40 °F to 158 °F |
| Operating Humidity | 5 - 90% (non-condensing) |
| Storage Humidity | 5 - 90% (non-condensing) |
Cloud Management & Licensing
| Management Interface Support | CLI, SNMPv1/v2c/v3, RMON, NETCONF, RESTCONF, gRPC, YANG |
| Cloud Initiated Configuration | ZTP (Zero Touch Provisioning) |
| License Type | Cisco Network Advantage |
| Stacking Technology | Cisco StackWise-320 |
| Blue Beacon LED | Yes |
