HP Aruba 8360-24XF2C 10GbE 26-Port Switch Bundle (JL711A#AKM)

VENDOR: HP Mfg Part#: JL711A#AKM UPC#: 190017406398
1 3

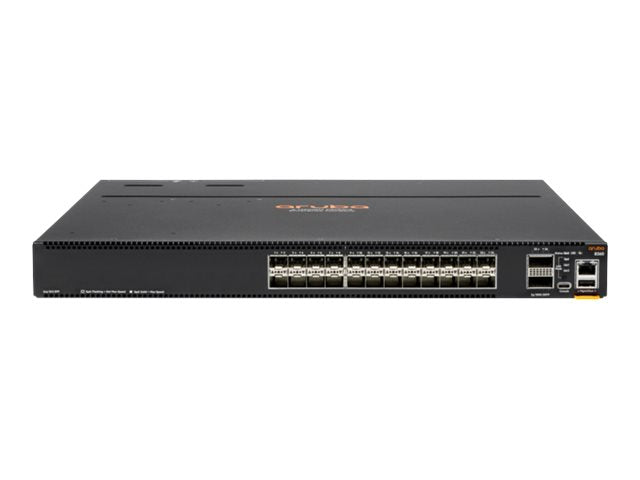

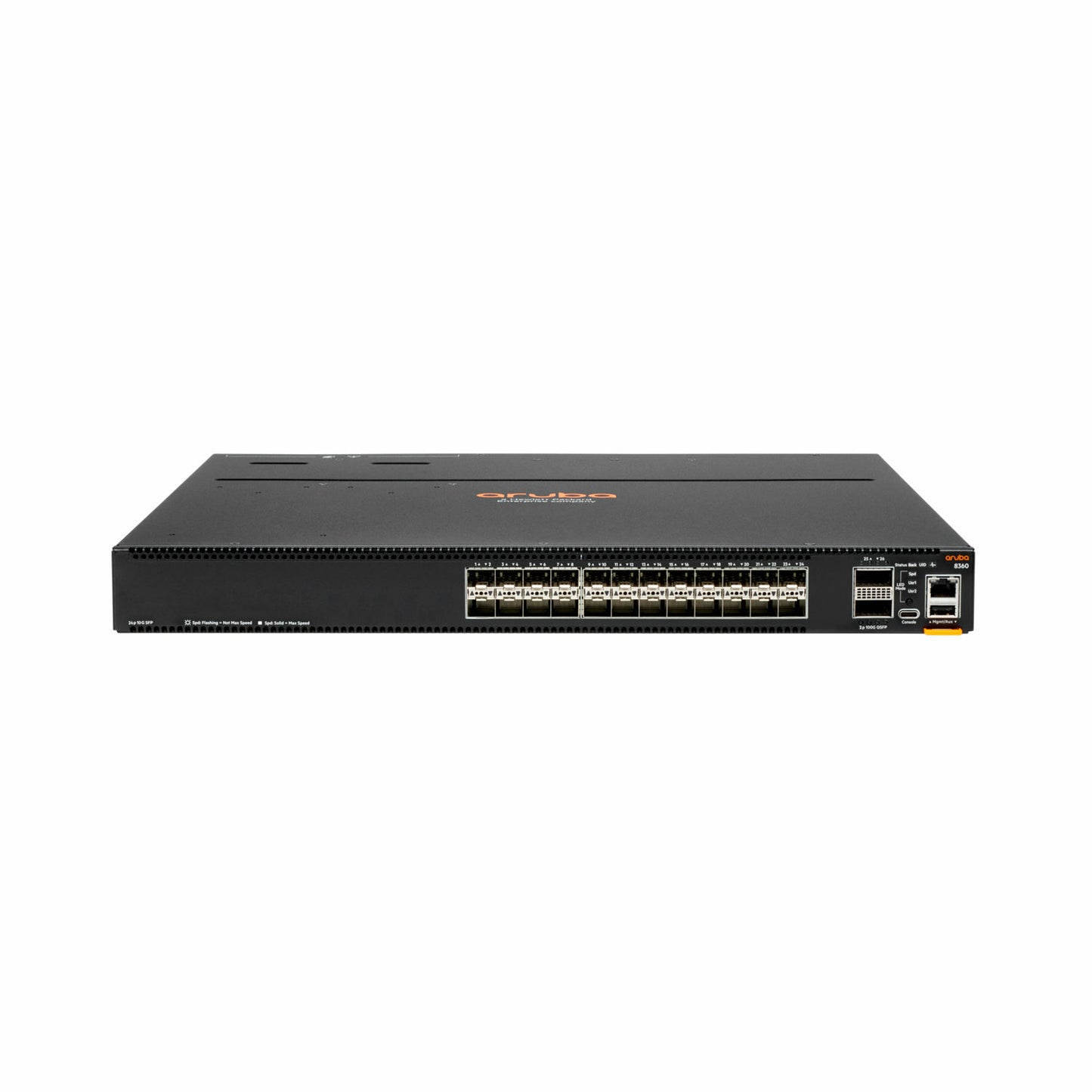

Photo is for illustration purposes only. Actual product may be different.
$25,061.24
$25,061.24
Sale Sold out
MSRP: $31,655.00
Shipping calculated at checkout.
  • 26 wired ports with 10 Gigabit Ethernet support
  • Memory configuration: 16GB RAM, expandable to 32GB
  • Supports TAA compliance for secure government applications
  • Designed and manufactured in Singapore
  • Part of HP's high-performance Aruba networking family

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprises needing high-speed 10GbE connectivity across 26 ports
  • TAA-compliant design supports government and federal use cases with regulatory assurance
  • Expandable memory to 32GB allows for optimized performance and future scalability

Product Overview

The HP Aruba 8360-24XF2C is an enterprise-class 10 Gigabit Ethernet switch offering 26 wired ports, tailored for data-intensive networking environments. The switch delivers exceptional performance, making it ideal for medium to large organizations that need robust data center interconnectivity. With support for 10Gbps throughput and a configurable port layout, it enables high-speed switching capacity across complex infrastructures.

This JL711A#AKM bundle ensures TAA compliance and is manufactured in Singapore, including 16GB of memory and support for up to 32GB, ensuring smooth operation and future-proof scalability. Designed by HP within the Aruba product family, the 8360 switch supports advanced traffic management and automation, making it an ideal investment for forward-thinking enterprise networks.

Specifications

Product Overview
Product Type Enterprise-class Layer 3 Switch
Model Aruba 8360-24XF2C
Part Number JL711A#AKM
Form Factor 1U Rack-mountable
Weight 7.7 kg (16.97 lb)
Power Supply Type Dual Hot-swappable Power Supplies (AC)
Power Consumption (Maximum) 146.1 Watts
Switching Capacity 1.2 Tbps
Forwarding Rate 595 Mpps
Memory 16 GB system memory
Maximum Memory Supported 32 GB
Flash Memory 16 GB

Cloud Management & Licensing
Cloud Management Platform Aruba Central (optional)
Local Management Interface Web GUI, CLI, REST API
Included Licensing ArubaOS-CX base software included
Automation & Orchestration Yes, via Aruba Network Analytics Engine

Physical & Environmental
Dimensions (W x D x H) 43.99 x 43.69 x 4.36 cm (17.32 x 17.2 x 1.72 in)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% (non-condensing)
Acoustic Power 59.7 dB
Cooling Front-to-back airflow; field-replaceable fans

Interfaces
Total Ports 26
10GbE SFP+ Ports 24
40/100GbE QSFP28 Ports 2
Console Port 1 x RJ-45
Management Port 1 x RJ-45 Ethernet
USB Port 1 x USB Type-A
Data Transfer Rate up to 10 Gbps per SFP+ port

Advanced Security Features
Access Control 802.1X, MAC Authentication, Web Authentication
Security Policies User- and identity-based policy enforcement
Dynamic Segmentation Supported
Policy-based Routing Yes
Encrypted Management Access SSH, HTTPS

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CE, FCC Class A, ICES, VCCI, BSMI, CCC, RoHS
Energy Efficient Ethernet (EEE) Supported
Regulatory Compliance REACH, WEEE, IEEE 802.3az
