HP Aruba 8360-24XF2C 26-Port 10GbE Switch JL711A#AC4

VENDOR: HP Mfg Part#: JL711A#AC4 UPC#: 190017406299
1 3
Photo is for illustration purposes only. Actual product may be different.
$25,061.24
$25,061.24
Sale Sold out
MSRP: $31,655.00
Shipping calculated at checkout.
  • 26 networking ports for high-density connectivity
  • Supports 10 Gigabit Ethernet for high-speed data transmission
  • TAA-compliant for use in regulated government environments
  • 16GB onboard memory, expandable to 32GB
  • Country of origin: Singapore

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for high-throughput enterprise environments needing 10GbE networking
  • TAA compliance ensures suitability for government and public sector networks
  • Expandable memory supports flexible scaling and sustained performance

Product Overview

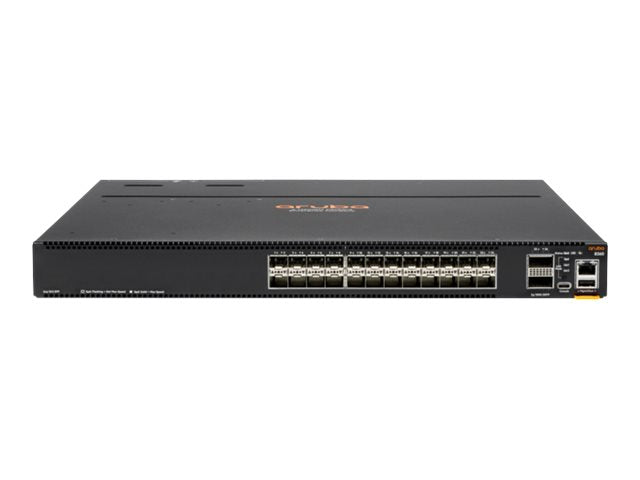

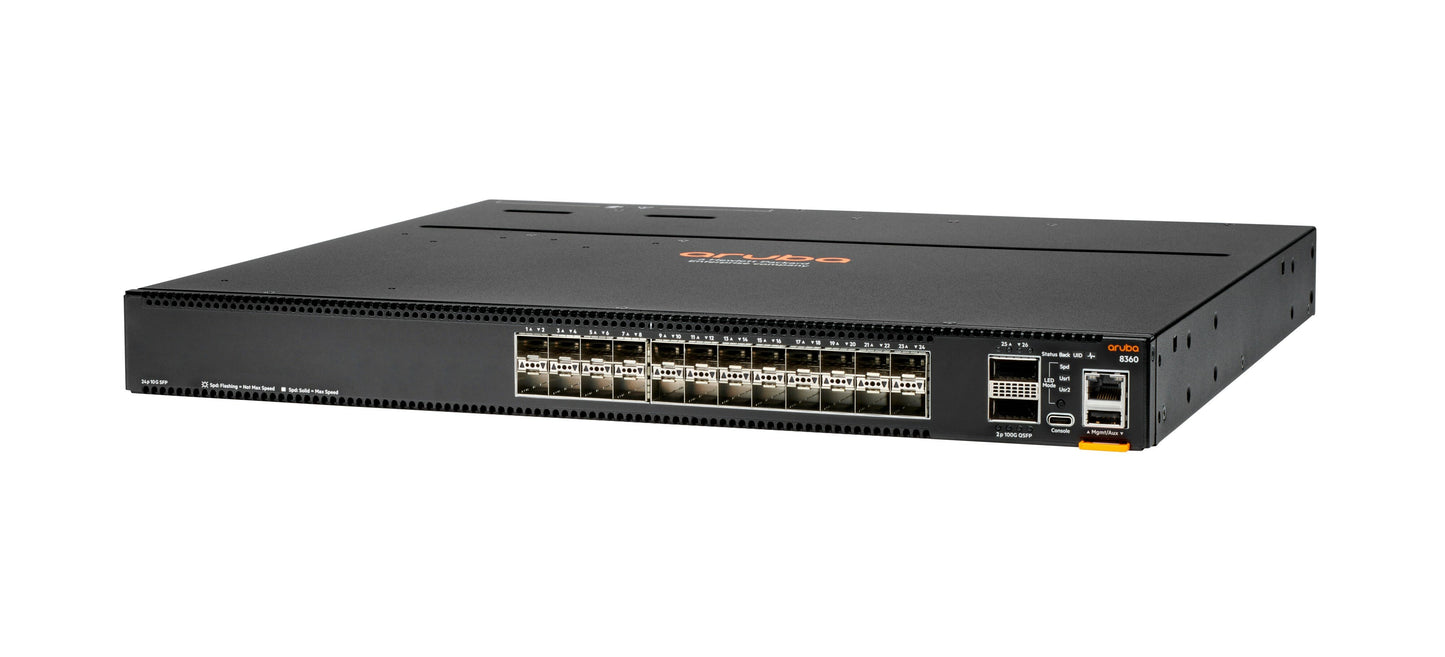

The HP Aruba 8360-24XF2C is a high-performance wired switch designed to meet the networking demands of modern enterprise infrastructures. Featuring a total of 26 ports with support for 10 Gigabit Ethernet, this switch enables ultra-fast data transmission across your network. With its TAA compliance, the JL711A#AC4 model is suitable for regulated environments. It comes equipped with 16GB of onboard memory and supports up to 32GB, ensuring efficient routing performance. Made in Singapore, this device offers manufacturing quality and deployment confidence in mission-critical applications.

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Model Number JL711A#AC4
Series Aruba CX 8360 Series
Form Factor 1U Rack-mountable
Processor Dual-core ARM Cortex-A72
System Memory 16 GB DDR4 SDRAM
Flash Memory 16 GB
Maximum Memory Supported 32 GB
Power Supply Dual hot-swappable power supplies (AC included)
Power Consumption Up to 160 W
Weight 8.77 lbs (3.98 kg)

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL/CSA 60950-1, EN 60950-1, IEC 60950-1, EN 55032 Class A, EN 55024
RoHS Compliance Yes
Green Compliance ENERGY STAR® qualified

Advanced Security Features
Access Control 802.1X, MAC Authentication, Web Authentication
MACsec Encryption Yes (on selected ports)
DHCP Snooping Yes
Dynamic ARP Protection Yes
Port Security Yes
RADIUS/TACACS+ Yes
ACL Support Layer 2/3/4 ACLs

Interfaces
Total Ports 26
10G SFP+ Ports 24
40G QSFP+ Ports 2
Management Ports 1x RJ-45 serial console, 1x RJ-45 out-of-band management
USB Ports 1x USB Type-A
Ethernet Port Speed 10/40 Gigabit Ethernet
Packet Buffer Size 42 MB
Forwarding Rate 960 Mpps
Switching Capacity 1.28 Tbps
Stacking Capability Virtual Switching Extension (VSX)
MAC Address Table Size 128,000 entries
VLAN Support 4,096 VLANs

Physical & Environmental
Dimensions (W x D x H) 17.5 x 17.5 x 1.7 in (44.45 x 44.45 x 4.39 cm)
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 95% (non-condensing)
Noise Level 59.6 dB(A)
Cooling Front-to-back airflow with field-replaceable fans

Cloud Management & Licensing
Management Interface Aruba AOS-CX CLI, Web GUI, REST API, Aruba Central Cloud Management
Cloud-based Management Supported via Aruba Central
Included Licensing Base OS included; advanced licenses sold separately
Telemetry & Analytics Integrated Network Analytics Engine (NAE)
