HP Aruba 8360-24XF2C Switch Bundle JL710A#B2E, 24xSFP+, 2xQSFP, 550W

VENDOR: HP Mfg Part#: JL710A#B2E UPC#: 190017406220
1 3

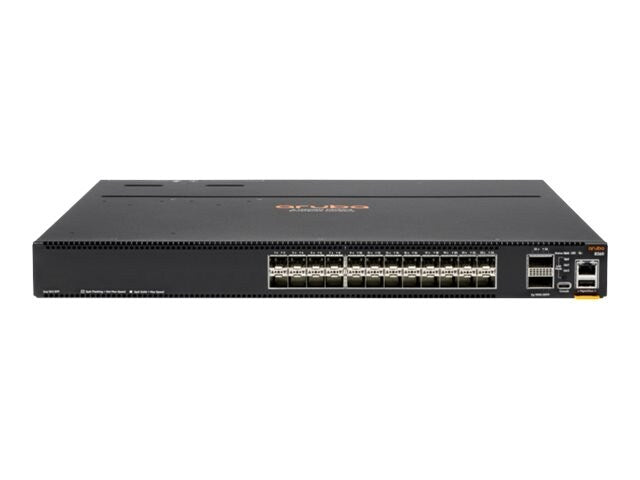

Photo is for illustration purposes only. Actual product may be different.
$25,061.24
$25,061.24
Sale Sold out
MSRP: $31,655.00
Shipping calculated at checkout.
  • 24 SFP/SFP+ ports supporting 1GbE/10GbE connectivity
  • 2 QSFP+/QSFP28 uplink ports with 40/100GbE capability
  • Advanced Layer 3 routing protocols supported
  • 32 GB of installed flash memory
  • Supports optional SFP/SFP+ transceivers and breakout cables
  • Power-efficient design with 550W consumption and wide voltage range

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed switching with 100GbE uplinks, catering to bandwidth-heavy enterprise needs
  • TAA compliance and limited lifetime warranty make it ideal for government and regulated industry deployments
  • Flexible port configuration and breakout support offer investment protection and future scalability

Product Overview

The HP Aruba 8360-24XF2C Prt2Pwr3F2PS Bdl JL710A#B2E is a high-performance advanced Layer 3 switch ideal for enterprise campus and data center networks. It features 24 SFP/SFP+ ports for 1/10GbE connectivity and 2 QSFP+/QSFP28 ports supporting 40/100GbE, delivering scalable bandwidth for high-density environments. Adaptable with breakout cable support and optional transceivers, it is powered within a 550W envelope on dual voltage input and ensures network durability with 32GB flash storage and TAA compliance. Its limited lifetime warranty and enterprise-grade build make it suitable for robust, mission-critical setups.

Specifications

Product Overview
Product Type Managed Switch
Model Aruba CX 8360-24XF2C
Series Aruba CX 8360 Series
Form Factor 1U Rack-mountable
Power Supply Type Internal PSU
Power Consumption (Max) 550 Watt
Power Requirements 100-127 and 200-240 VAC
Flash Memory Installed 32 GB
Switch Fabric Capacity 2.0 Tbps
Forwarding Rate 1,428 Mpps
Weight 17.8 lbs.

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CSA, CB, FCC Class A, VCCI, CE, RoHS, WEEE
MTBF 252,752 hours

Advanced Security Features
Access Control 802.1X authentication, MAC authentication, Web-based authentication
MACsec Support Yes (IEEE 802.1AE)
DHCP Snooping Yes
Dynamic ARP Inspection (DAI) Yes
IP Source Guard Yes
RADIUS Accounting Yes

Interfaces
Total Ports 26
SFP/SFP+ Ports 24 x 1/10GbE (SFP/SFP+)
QSFP+/QSFP28 Ports 2 x 40/100GbE (QSFP+/QSFP28)
Breakout Support Yes, 4x10G/25G via breakout cables
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet, 10-Gigabit Ethernet, 40-Gigabit Ethernet, 100-Gigabit Ethernet
Layer Support Layer 2 and Layer 3
MAC Address Table Size 128,000 entries
Jumbo Frame Support Yes (up to 9216 bytes)
Packet Buffer Size 32 MB

Physical & Environmental
Width 1.73 in (4.39 cm)
Depth 17.4 in (44.2 cm)
Height 16 in (40.6 cm)
Operating Temperature Range 32°F to 113°F (0°C to 45°C)
Storage Temperature Range -40°F to 158°F (-40°C to 70°C)
Operating Humidity Range 5% to 95% (non-condensing)
Cooling Type Front-to-back airflow with fan tray
Noise Level 53 dB (typical)

Cloud Management & Licensing
Management Interface Aruba Network Analytics Engine (NAE), Web GUI, CLI, REST API
Cloud-Enabled Yes, via Aruba Central (subscription required)
Licensing Model Software features available via subscription or perpetual license
Included Licenses Switch software, base OS included
