| Manufacturer | HP |
| Product Name | HP Aruba CX 8360-16Y2C V2 Switch |
| Manufacturer Part Number | JL702C#ABA |
| Product Type | Managed Layer 3 Switch |
| Form Factor | 1U |
| Weight | 17 lbs. |
| Processor Type | Quad-Core 1.8 GHz |
| RAM Installed | 16 GB |
| Flash Memory | 32 GB |
| Power Consumption (Max) | 325 Watt |
| Power Supply Type | Redundant Hot-swappable Internal AC Power Supplies (2 included) |
| Voltage Required | 100-127VAC, 200-240VAC |
HP Aruba CX 8360-16Y2C V2 Switch, 16x25GbE, 2x100GbE, JL702C#ABA

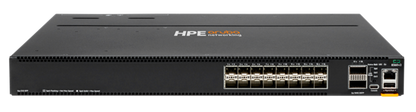

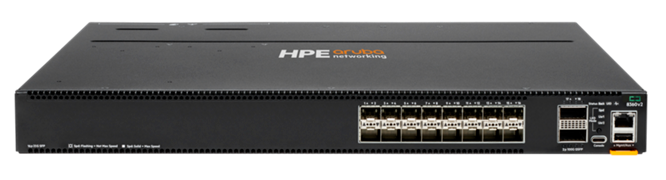

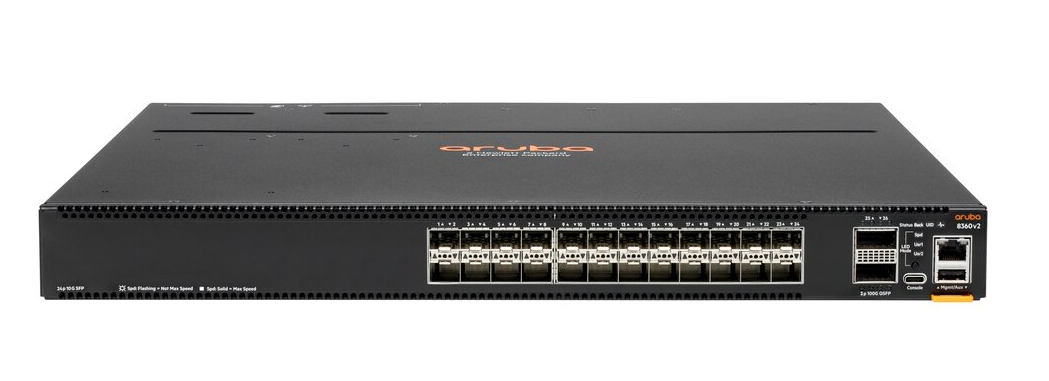

Photo is for illustration purposes only. Actual product may be different.
Regular price
$23,715.35
Regular price
Sale price
$23,715.35
Unit price
per
MSRP: $29,955.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 16x 1GbE/10GbE/25GbE SFP/SFP+/SFP28 ports and 2x 40GbE/100GbE QSFP+/QSFP28 ports
- Advanced Layer 3 routing with MACsec secured connectivity
- Quad-core 1.8 GHz 64-bit processor with 16 GB RAM and 32 GB flash memory
- Redundant dual power supplies with max 325W power consumption
- Compact 1U form factor for space-efficient deployment
- Operating temperature range from 0°C to 45°C with limited lifetime warranty
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- High-density port configuration allows versatile connectivity options for modern network topologies.
- Built-in MACsec security provides encrypted protection across untrusted network domains.
- Redundant power and enterprise-grade build quality ensure long-term durability with lifetime warranty support.
Product Overview
The HP Aruba CX 8360-16Y2C v2 Switch Series, model JL702C#ABA, is purpose-built for performance-driven enterprise and edge data centers. It features Layer 3 advanced routing, a quad-core 1.8 GHz processor, and includes 16 GB RAM with 32 GB flash storage. The 1U chassis accommodates 16 SFP+/SFP28 ports and 2 QSFP+/QSFP28 uplinks, supporting up to 100Gbps with breakout capability.
The switch utilizes MACsec security and includes redundant power supplies, ensuring high availability while maintaining efficient 325W max power draw. With a robust temperature range and TAA compliance, this unit guarantees reliability in stringent environments. Perfect for flexible enterprise networking across core or TOC deployment scenarios.
Specifications
Product Overview
Advanced Security Features
| MACsec Support | Yes (802.1AE) |
| Access Control Lists (ACLs) | Yes |
| DHCP Snooping | Yes |
| Dynamic ARP Inspection | Yes |
| IP Source Guard | Yes |
| Secure Shell (SSH) | Yes |
| RADIUS / TACACS+ Authentication | Yes |
Compliance & Origin
| Country of Origin | Singapore |
| TAA Compliant | Yes |
| Certifications | UL, CB, cTUVus, FCC, VCCI, BSMI, CE, EN 55032 Class A |
| RoHS Compliance | Yes |
Interfaces
| Total Number of Ports | 18 |
| Port Configuration | 16x SFP/SFP+/SFP28, 2x QSFP+/QSFP28 |
| Supported Port Speeds | 1GbE, 10GbE, 25GbE, 40GbE, 100GbE |
| Port Breakout Support | Yes (4x10G/25G on QSFP) |
| Data Link Protocols | Ethernet, Fast Ethernet, Gigabit Ethernet, 10-Gigabit Ethernet, 25-Gigabit Ethernet, 40-Gigabit Ethernet, 100-Gigabit Ethernet |
| Routing Protocols | Static, OSPF, BGP, RIP, IS-IS, PIM, VRRP |
Physical & Environmental
| Width | 17.4 Inch |
| Depth | 16 Inch |
| Height | 1.73 Inch |
| Operating Temperature Range | 0°C to 45°C |
| Storage Temperature Range | -40°C to 70°C |
| Humidity Range (Operating) | 5% to 95% non-condensing |
| Acoustic Noise | 53.3 dB (typical) |
Cloud Management & Licensing
| Management Interface | Aruba Central, CLI, Web GUI, REST APIs |
| Supported OS | Aruba AOS-CX |
| Licensing | Advanced licensing for services via Aruba Central (subscription-based) |
| Zero Touch Provisioning (ZTP) | Yes |
| Switch Software Features | VXLAN, EVPN, BGP, eCMP, NetFlow, sFlow, NTP, SNMP v2/v3 |
