HP Aruba CX 8360 v2 Switch R9G15A#ABA, 12C/100GbE, MACsec, 110W

VENDOR: HP Mfg Part#: R9G15A#ABA UPC#: 190017598161
1 2

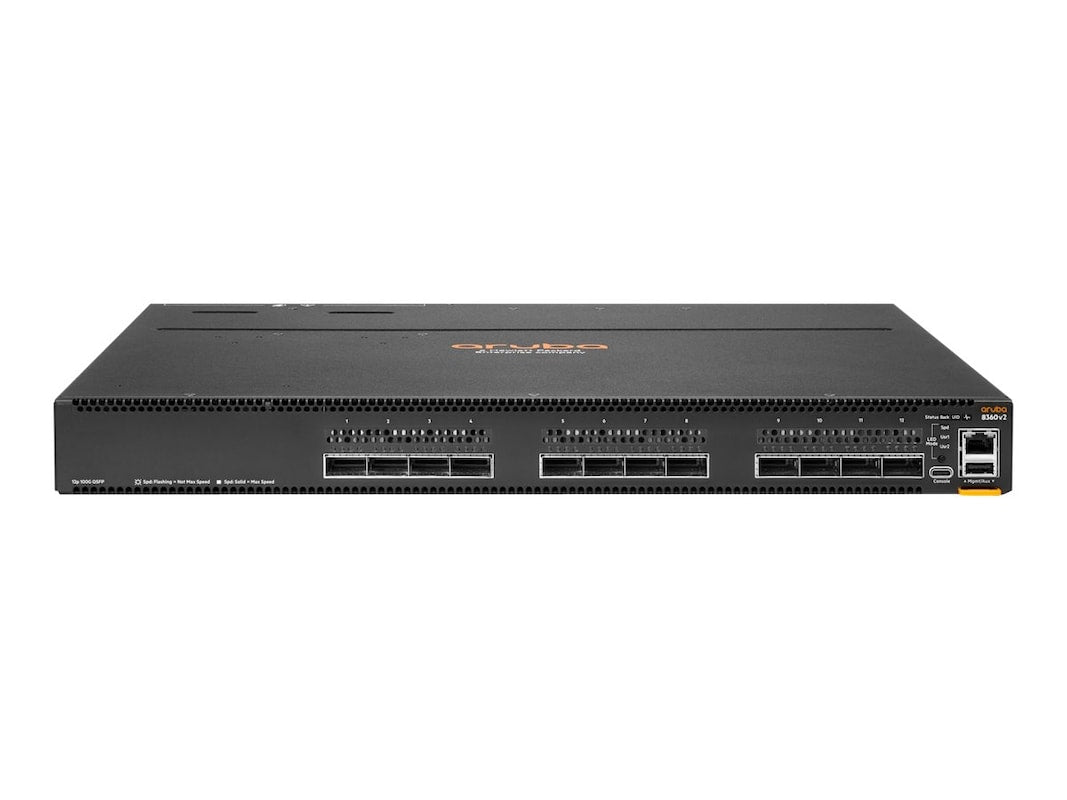

Photo is for illustration purposes only. Actual product may be different.
$24,998.08
$24,998.08
Sale Sold out
MSRP: $32,735.00
Shipping calculated at checkout.
  • 1. 1.8 GHz quad-core 64-bit CPU with 16 GB RAM and 32 GB flash storage
  • 2. MACsec secured connectivity over untrusted domains
  • 3. Configurable interfaces with up to 12 x 100GbE (QSFP+/QSFP28) ports
  • 4. Supports breakout cables for flexible port configurations (10G/25G)
  • 5. Advanced Layer 3 routing protocol support
  • 6. Low 110W operational power usage; TAA-compliant design

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Highly adaptable port configuration supports modern enterprise bandwidth requirements including breakout capabilities.
  • Built-in MACsec encryption ensures secure data transmission, ideal for sensitive or untrusted environments.
  • Includes a limited lifetime warranty and low 110W power draw, reducing total cost of ownership.

Product Overview

The HP Aruba CX 8360 v2 Switch Series delivers scalable, secure, and high-performance networking for enterprise environments. With a 1.8 GHz quad-core CPU, 16 GB RAM, and 32 GB flash, it manages high data flow efficiently. Interface flexibility includes up to 12 x 100GbE QSFP28 ports, 48 x 10GBASE-T, and various SFP/SFP+ options, allowing organizations to adapt to evolving network demands. It supports MACsec encryption and Layer 3 advanced routing for added security and functionality. This switch uses only 110W power and carries a limited lifetime warranty, making it a cost-efficient and dependable solution.

Specifications

Product Overview
Type Managed Layer 3 Ethernet Switch
Form Factor 1U Rack-mountable
Processor Quad-core 1.8 GHz ARM CPU
Memory (RAM) 16 GB
Flash Memory 32 GB
Power Consumption (Operational) 110 Watt
Max Power Consumption 110 Watt
Weight 23.65 lbs.

Wireless Features
Wireless Support

Compliance & Origin
Certifications UL, CSA, CB, CE, FCC, VCCI, BSMI, RCM
TAA Compliant Yes
Country of Origin Singapore
Environmental Standards RoHS, WEEE, REACH
Energy Efficiency Energy Efficient Ethernet (EEE)

Advanced Security Features
MACsec Encryption Yes, IEEE 802.1AE 256-bit
Secure Boot Yes
Access Control Lists (ACLs) Support for standard and extended ACLs
Role-Based Access Control Yes
DHCP Snooping Yes
Dynamic ARP Protection Yes
IP Source Guard Yes
802.1X Network Access Control Yes
Encrypted Management Access HTTPS, SSH

Interfaces
QSFP+/QSFP28 Ports 12 x 40/100GbE
Breakout Support (QSFP28) 4x10G/25G per port
SFP/SFP+ Ports Up to 24 x 1/10GbE
SFP Compatibility SFP, SFP+, 1GBASE-T SFP, 10GBASE-T SFP+
10GBASE-T Ports Up to 48 x 100M/1G/10G
Additional QSFP+/QSFP28 Ports 2 x 40/100GbE
Maximum Port Speed 100Gbps
Port Speed Support 100M/1G/10G/25G/40G/100GbE
Switching Capacity Up to 2.4 Tbps
Forwarding Rate Up to 1,190 Mpps

Physical & Environmental
Dimensions (WxDxH) 17.42 x 19.53 x 1.73 in (442.4 x 496 x 44 mm)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Acoustic Output 63.6 dB (typical), 67.5 dB (maximum)
Airflow Front-to-back and back-to-front airflow options
Power Supply Internal, redundant power supplies supported
Cooling Redundant fan trays

Cloud Management & Licensing
Management Interface Aruba AOS-CX CLI, Web GUI, REST API
Cloud Management Aruba Central (optional)
Switch OS Aruba AOS-CX
Licensing Model Feature-based, includes base OS; advanced features licensed separately
