HP Aruba CX 8400 Switch 32x10GbE 6x100GbE JL376A#B2E

VENDOR: HP Mfg Part#: JL376A#B2E UPC#: 190017097602
1 2

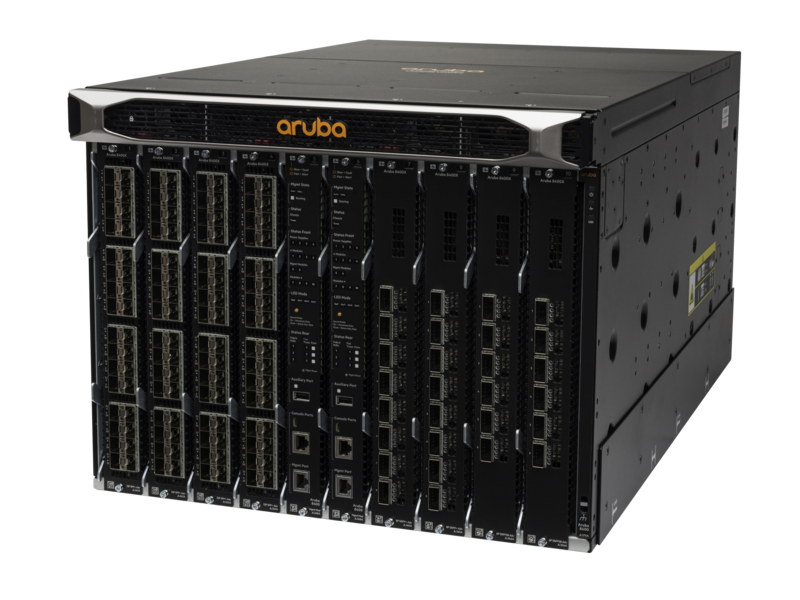

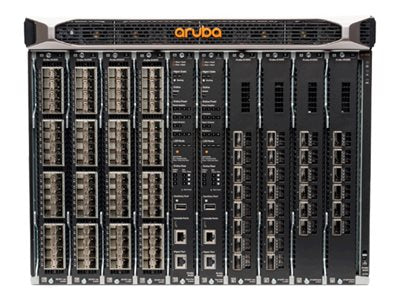

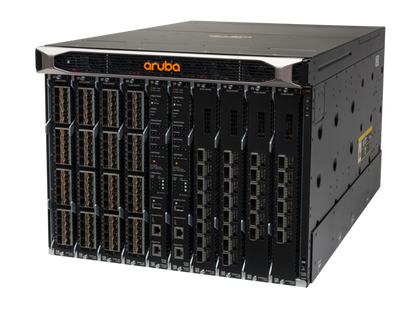

Photo is for illustration purposes only. Actual product may be different.
$90,914.78
$90,914.78
Sale Sold out
MSRP: $114,835.00
Shipping calculated at checkout.
  • Modular design with 8 I/O module slots supporting flexible expansion
  • Comes with 32 x 10GbE (SFP/SFP+) and 6 x 40/100GbE (QSFP28) ports
  • Delivers 19.2 Tbps switching capacity for high-throughput networks
  • Supports Layer 3 Advanced routing protocols for enterprise switching
  • Power-efficient design with operational requirement of 2750W across global voltage range
  • Includes 5-year warranty and TAA compliant for government procurement

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise and data center environments requiring high port density and performance
  • Flexible I/O architecture allows scalable expansion as network demands grow
  • Backed by a 5-year warranty and TAA compliance, providing long-term value and regulatory alignment

Product Overview

The HP Aruba CX 8400 Switch (JL376A#B2E) is a modular core and aggregation switch designed for high-performance enterprise networks. With 8 I/O module slots supporting up to 256 10GbE or 48 100GbE ports, this platform delivers exceptional scalability and flexibility. It offers 19.2 Tbps switching capacity, advanced Layer 3 routing, and SNMP remote management for intelligent network control. The switch operates with 2750W power consumption and supports global voltage input, tailored for power-dense environments. TAA compliance and a 5-year warranty further make it a smart choice for mission-critical deployment.

Specifications

Product Overview
Type Modular Core and Aggregation Switch
Model Aruba CX 8400 Switch Series
Form Factor 19U Rack-Mountable Chassis
Power Consumption (Typical) 2750 Watt
Max Power Consumption 2750 Watt
Power Requirements 90–140 / 180–264 VAC
Switching Capacity 19.2 Tbps
Forwarding Rate 7.14 Bpps
Connectivity Technology Wired
Network Device Type Switch
Routing Protocol Layer 3 Advanced
Warranty 5-Year Warranty

Cloud Management & Licensing
Management Interface ArubaOS-CX CLI, Web GUI, REST API
Remote Management Protocols SNMP v1/v2c/v3, Syslog, SSH, HTTPS
Included Cloud Features Support for Aruba Network Analytics Engine (NAE), Aruba Central (optional)

Physical & Environmental
Width 13 in (33 cm)
Depth 17.4 in (44.2 cm)
Height 26 in (66 cm)
Weight 164 lbs (74.4 kg)
Cooling Front-to-back airflow; redundant fans
Operating Temperature Range 0°C to 45°C (32°F to 113°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity Range 5% to 95% non-condensing

Interfaces
I/O Module Slots 8
Pre-installed Ports 32 x 10GbE (SFP/SFP+), 6 x 40/100GbE (QSFP28)
Maximum Port Configuration 256 x 10GbE or 64 x 40GbE or 48 x 100GbE
Interface Types Supported SFP, SFP+, QSFP+, QSFP28
Data Link Protocols Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
Data Transfer Rate Up to 100 Gbps per port

Advanced Security Features
Access Control 802.1X, MAC Authentication, Port Security
Network Security ARP Protection, DHCP Snooping, Dynamic Segmentation
Secure Management Role-based access control, RADIUS, TACACS+, SSH
Traffic Filtering Access Control Lists (ACLs)

Compliance & Origin
Country of Origin Singapore
Certifications UL, FCC Class A, ICES Class A, VCCI, BSMI, CCC, CE, RoHS
TAA Compliance Yes
