Products Memory, Storage and Components APC EASY UPS 3S 20kVA 208V ...

APC EASY UPS 3S 20kVA 208V 3:3 for Internal Batteries, E3SUPS20KFBS

VENDOR: APC Mfg Part#: E3SUPS20KFBS
1 1

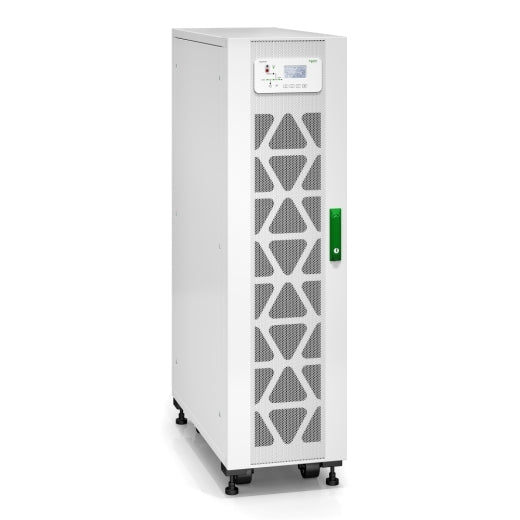

Photo is for illustration purposes only. Actual product may be different.
$27,666.72
$27,666.72
Sale Sold out
MSRP: $41,355.00
Shipping calculated at checkout.
  • 20 kW / 20,000 VA online double-conversion UPS
  • 208V 3-phase input/output for internal battery applications
  • Compact desktop form factor with white RAL 9003 enclosure
  • Operating temperature from 0°C to 40°C with humidity up to 95%
  • TAA compliant and RoHS certified for regulatory use
  • Includes 1-year on-site service with authorized startup

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers 20 kVA of clean, consistent power through online double-conversion technology, ideal for mission-critical systems.
  • TAA compliance and RoHS certification make it suitable for government and enterprise installations.
  • Includes factory-authorized 5x8 startup service and a 1-year on-site repair/replacement plan, reducing deployment risk.

Product Overview

The APC EASY UPS 3S 20 kVA 208V 3:3 UPS, model E3SUPS20KFBS, is a high-capacity online power protection solution built for businesses requiring uninterrupted, clean energy. Its 20,000 VA/20 kW output and true online double-conversion architecture ensure reliability for sensitive systems. Measuring 14.96" W x 37.8" D x 55.12" H, this solution features a desktop-style form factor suited for indoor deployments. Engineered for 0–40°C operations and compliant with TAA and RoHS, the unit includes a 1-year on-site service contract with factory-authorized startup. With origin in Canada and internal battery compatibility, it offers a robust foundation for scalable power resilience strategies.

Specifications

Product Overview
Product Type Uninterruptible Power Supply (UPS)
Model E3SUPS20KFBS
UPS Topology Online Double Conversion
Form Factor Tower
Rated Power (W) 20000 W
Rated Power (VA) 20000 VA
Waveform Type Sine wave
Input Voltage 208 V
Output Voltage 208 V
Input Frequency 40 - 70 Hz
Output Frequency 50/60 Hz auto-sensing
Battery Type Internal battery (sold separately)
Number of Phases 3-phase
Efficiency at Full Load Up to 96%
Bypass Type Internal static bypass
Nominal Output Current 66.5 A
Nominal Input Current 62.2 A

Physical & Environmental
Width 14.96 in (380 mm)
Depth 37.8 in (960 mm)
Height 55.12 in (1400 mm)
Weight (without batteries) 445 lb (202 kg)
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -25°C to 55°C
Relative Humidity Range (Operating) 0 to 95% non-condensing
Operating Elevation 0 - 1000 m without derating
Audible Noise at 1m from Surface 67 dB
Cooling Type Forced air

Cloud Management & Licensing
Remote Monitoring APC EcoStruxure Ready via optional Network Management Card
Software Support Compatible with PowerChute Network Shutdown
Included Services 1-year on-site repair with factory-authorized startup

Interfaces
Communication Interfaces 1 x RJ45 10/100 Ethernet, 1 x USB, 1 x RS-232
SmartSlot Expansion Slots 1
Signaling Ports Dry contact I/O

Compliance & Origin
Country of Origin Canada
TAA Compliant Yes
RoHS Compliant Yes
Certifications UL 1778, CSA, IEC 62040-1, FCC Part 15 Class A

Advanced Security Features
Password Protection Yes
Event Logging Yes
SNMP Monitoring Supported with optional card
