APC NetShelter Rack PDU Advanced 34.6KW 3PH 415V 60A 42-Outlet

VENDOR: APC Mfg Part#: APDU10450ME
1 1

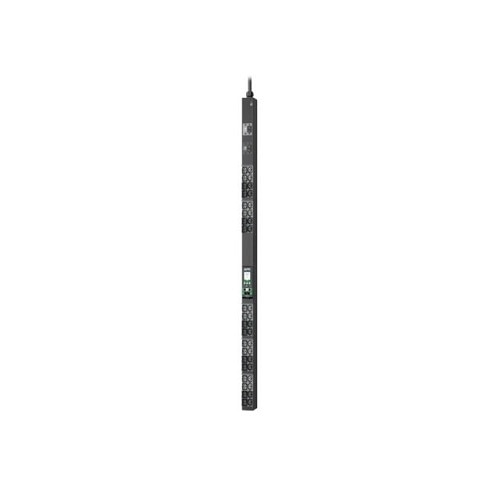

Photo is for illustration purposes only. Actual product may be different.
$3,368.28
$3,368.28
Sale Sold out
MSRP: $4,985.00
Shipping calculated at checkout.
  • Vertical 0U form factor conserves rack space for IT equipment
  • Delivers 34.6KW of power from a 415V 3-phase, 60A input
  • Equipped with 42 outlets (C13, C15, C19, C21) for flexible device support
  • Integrated metering for real-time power monitoring
  • IEC 60309 input connector ensures secure high-capacity connection
  • TAA-compliant and made in the United States with a 3-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers consistent 34.6KW high-capacity power output for densely-configured environments
  • Designed with 42 mixed outlets to accommodate varied power needs within one unit
  • Includes integrated metering and a 3-year warranty for operational visibility and long-term reliability

Product Overview

The APC NetShelter Rack PDU Advanced (APDU10450ME) is a vertical 0U power solution providing up to 34.6KW from a 415V 3-phase 60A input. Outfitted with 42 mixed outlets (C13, C15, C19, C21), it supports varied equipment loadouts. The IEC 60309 60A connector ensures high-capacity input, while integrated metering aids in power monitoring and efficiency management. Its TAA compliance, U.S. manufacturing origin, and 3-year warranty highlight its reliability and compliance for enterprise use. The 0U form factor maintains rack space for IT gear, making the unit a smart fit for high-density data center deployments.

Specifications

Product Overview
Type Power Distribution Unit
Model APDU10450ME
Form Factor Vertical (0U)
Power Capacity 34.6 kW
Input Voltage 415 V 3 phase
Output Voltage 240 V
Input Current 60 A
Color Black
Power Consumption (Max) 34.6 kW
Mounting Style Rack-mountable
Rack Units 0U
Warranty 3 Year Warranty

Cloud Management & Licensing
Remote Monitoring Interface Web, SNMP, Telnet, SSH
Remote Management Capabilities Yes
Cloud Portal Access EcoStruxure IT Ready
Management Software Included APC Data Center Expert compatible
Licensing Required No (basic monitoring included)

Physical & Environmental
Height 71.89 Inch
Width 2.2 Inch
Depth 2.95 Inch
Weight 29.76 lb (13.5 kg)
Minimum Operating Temperature 0 °C
Maximum Operating Temperature 60 °C
Maximum Operating Humidity 95% (non-condensing)
Minimum Operating Humidity 5%

Interfaces
Input Connector Type IEC 60309 60 A 3P + N + PE
Output Connectors 21 C13, C15, C19, C21 (Mixed)
Total Number of Outlets 42
PDU Type Metered
Display Type Digital Current Meter
Network Interface Ethernet (RJ-45), Serial

Advanced Security Features
User Authentication Password protection, RADIUS, LDAP
Data Encryption HTTPS, SSH
Event Logging Yes
Access Control Role-based user access

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 60950-1, CE, CSA, RoHS
Environmental Standards RoHS compliant
