APC NetShelter SX 42U 750mm Wide Enclosure AR3150X610

VENDOR: APC Mfg Part#: AR3150X610 UPC#: 731304293750
1 2
Photo is for illustration purposes only. Actual product may be different.
$2,279.52
$2,279.52
Sale Sold out
MSRP: $3,310.00
Shipping calculated at checkout.
  • 42U height provides significant internal space for server and equipment housing
  • Width of 29.53 inches and depth of 42.13 inches for optimized equipment fit
  • Open-ended design without doors for enhanced airflow customization
  • Five-year repair or replace warranty ensures long-term reliability
  • RoHS and TAA compliance supports regulatory and government deployments
  • Manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Robust 42U rack height and depth allow for scalable IT infrastructure deployments.
  • Made in the United States, compliant with RoHS and TAA for government and commercial contracts.
  • Backed by a 5-year warranty, ensuring product durability and service assurance over time.

Product Overview

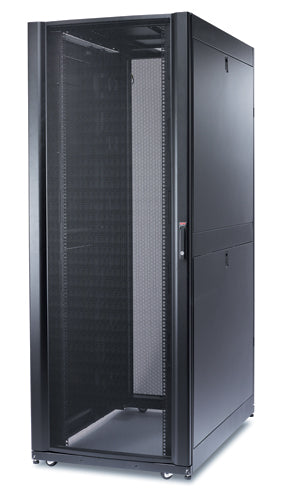

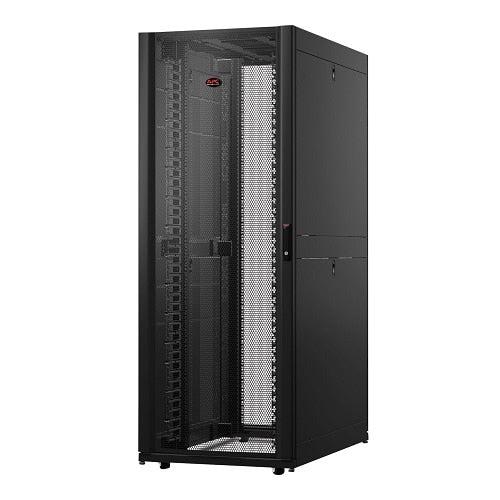

The APC NetShelter SX 42U AR3150X610 server rack enclosure is a high-performance infrastructure solution tailored for demanding IT installations. Measuring 29.53 inches wide, 42.13 inches deep, and 78.39 inches high, this server cabinet provides ample internal space to house a wide range of equipment. Without pre-installed doors, it enhances airflow and supports configuration flexibility.

Built with an industrial-grade black finish, the rack is both RoHS and TAA compliant, and manufactured in the United States. A five-year repair/replace warranty emphasizes APC's reliability. Ideal for data centers or edge network deployments, this enclosure offers robust performance and scalability where it matters most.

Specifications

Product Overview
Product Type Server Rack Enclosure
Form Factor Freestanding
Rack Units 42U
Weight Capacity (Static) 3000 lbs (1363.64 kg)
Weight Capacity (Dynamic) 2250 lbs (1022.73 kg)
Product Color Black
Material Steel
Power Requirements Not applicable (passive enclosure)
Warranty 5 year repair or replace

Physical & Environmental
Width 29.53 Inch
Depth 42.13 Inch
Height 78.39 Inch
Weight 372.00 lbs (168.73 kg)
Operating Temperature 5 - 45 °C (41 - 113 °F)
Non-Operating Temperature -15 - 65 °C (5 - 149 °F)
Operating Humidity 5 - 85% non-condensing
Non-Operating Humidity 5 - 95% non-condensing

Cloud Management & Licensing
Remote Management Capability Supported with optional APC NetBotz monitoring systems
Management Interface Not included; available via optional accessories
Licensing Requirements None (physical enclosure)

Interfaces
Cable Access Top and bottom cable entry openings
Mounting Rails Adjustable vertical mounting rails
Rack Mount Width 19 inches
Side Panels Removable with locks
Rear Panel Supports various door types (not included)
Front Doors Not included (optional)

Compliance & Origin
RoHS Yes
TAA Compliance Yes
Country of Origin United States
Certifications UL 2416, EIA-310-E, REACH compliant
ETSI Compatibility Yes
Seismic Rating Zone 4 compliant (with optional kit)

Advanced Security Features
Lockable Side Panels Yes
Front and Rear Door Lock Compatibility Yes (doors sold separately)
Padlock Compatibility Yes, padlock slot on side panels
Tool-less Accessories Mounting Supported with Zero U mounting option
