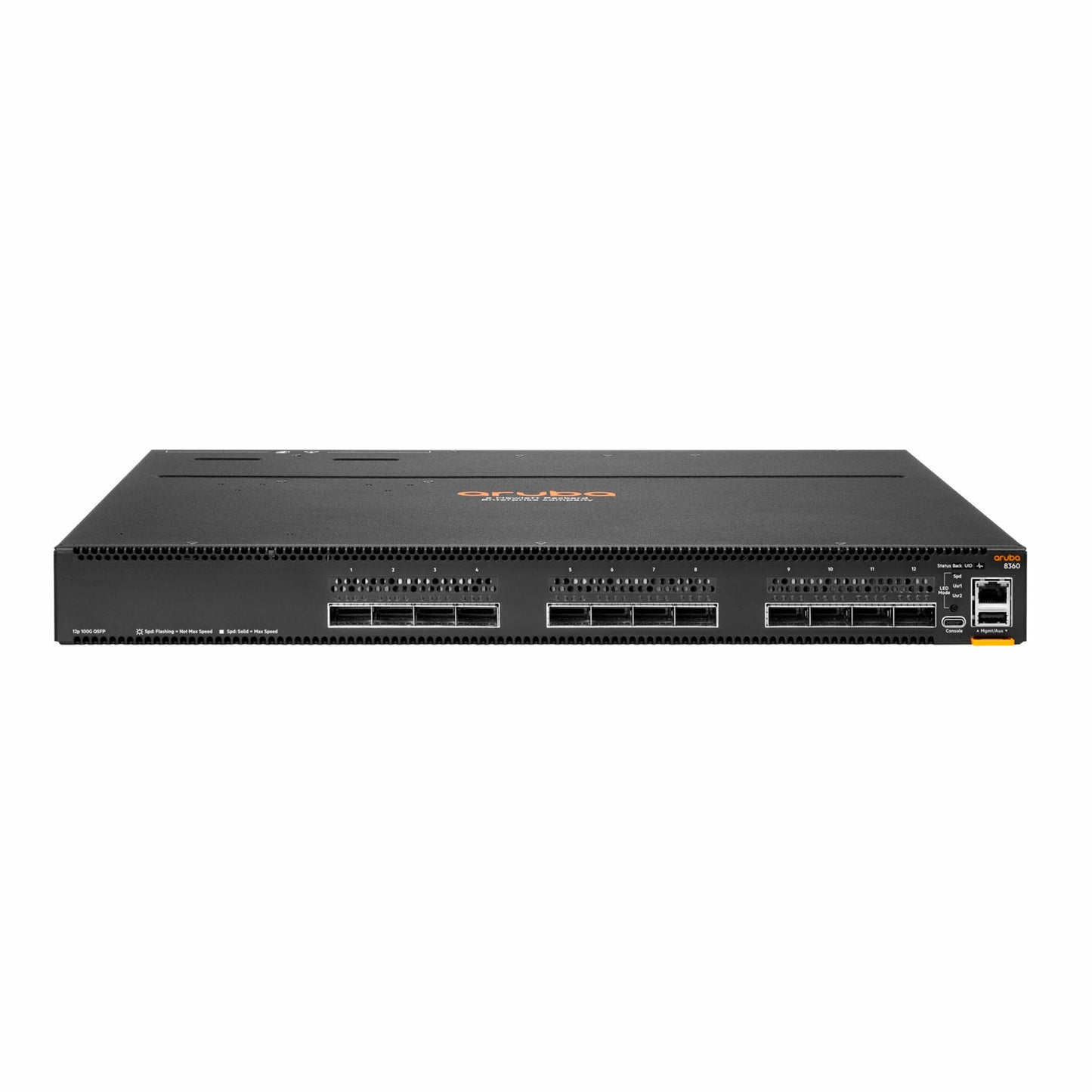

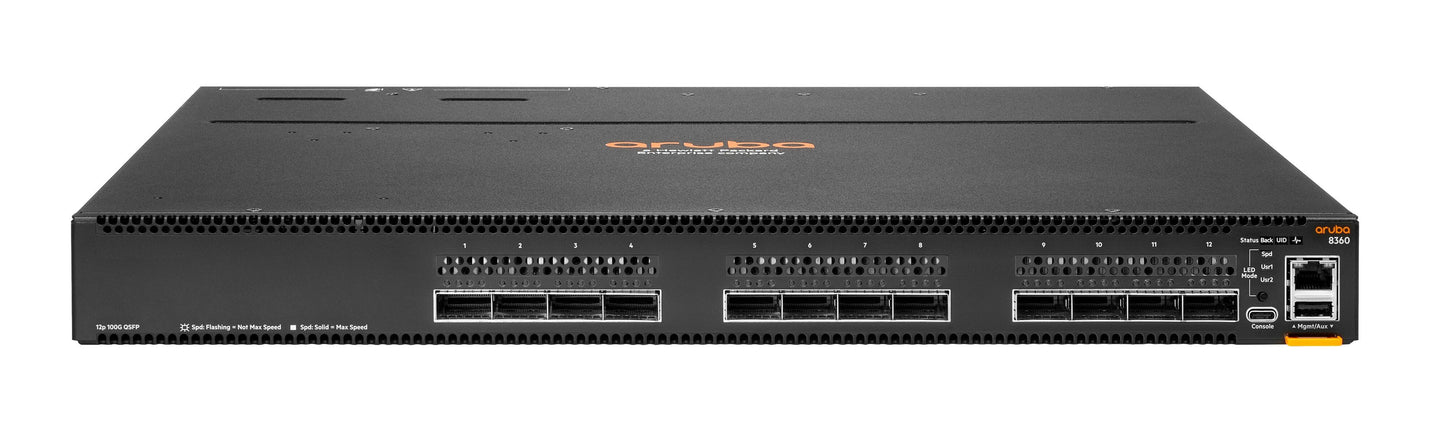

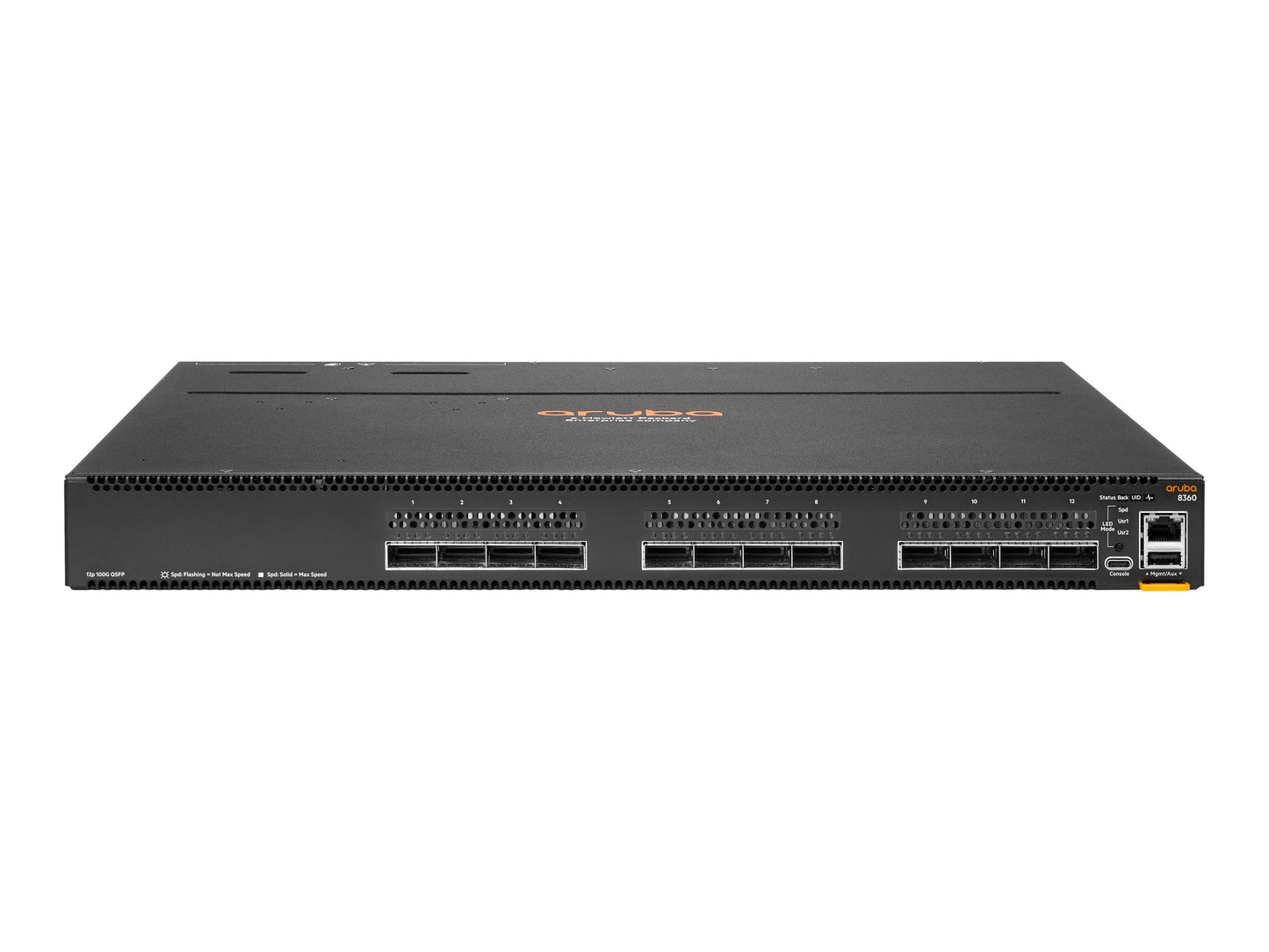

Aruba 8360-12C Switch, 12-Port, 40GbE, 16GB RAM, JL709A#AKM

VENDOR: HP Mfg Part#: JL709A#AKM UPC#: 190017405933
1 4
Photo is for illustration purposes only. Actual product may be different.
$28,513.05
$28,513.05
Sale Sold out
MSRP: $36,015.00
Shipping calculated at checkout.
  • 12-port 40 Gigabit Ethernet switch for high-speed connectivity
  • 16GB installed memory, expandable to 32GB
  • TAA compliant, suitable for U.S. federal contracts
  • Manufactured in Singapore ensuring quality standards

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers 40Gbps wired throughput per port—ideal for high-demand enterprise workloads
  • TAA-compliance enables use in public sector and regulated industries
  • Expandable memory and modular architecture future-proof critical network investments

Product Overview

The Aruba 8360-12C (model JL709A#AKM) is a high-performance wired switch offering 12x 40GbE ports to support intensive enterprise networking demands. With 16GB RAM (expandable to 32GB), it delivers strong routing capacity and throughput. TAA-compliant and manufactured in Singapore, it fits federal procurement standards. This model is ideal for high-density data centers and organizations seeking scalable, reliable network infrastructure within a programmable framework.

Specifications

Product Overview
Product Type Managed Ethernet Switch
Model Number JL709A#AKM
Series Aruba CX 8360 Series
Processor Dual-core ARM Cortex A9 CPU
System RAM 16 GB
RAM Expandability Up to 32 GB
Flash Memory 16 GB
Form Factor 1U Rack-mountable
Weight 9.3 kg (20.5 lbs)
Power Supply Dual hot-pluggable power supplies (AC)
Power Consumption (Max) 131 W

Cloud Management & Licensing
Management Interface Aruba AOS-CX, Web GUI, CLI, REST API
Cloud Management Support Aruba Central (optional license)
Included Licenses Limited Lifetime Warranty with basic software
Zero Touch Provisioning (ZTP) Supported

Physical & Environmental
Dimensions (W x D x H) 43.9 x 48.3 x 4.4 cm (17.3 x 19.0 x 1.73 in)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Maximum Altitude 4,572 m (15,000 ft)
Acoustic Noise 49.1 dB (typical), 64.6 dB (max)
Cooling Front-to-back or back-to-front airflow options

Interfaces
Total Ports 12
Port Type QSFP+ (40GbE)
Data Transfer Rate 40 Gbps per port
Switching Capacity 960 Gbps
Throughput 714.2 Mpps
Expansion Slots 2 (for power supplies or fans)
Console Port 1x RJ-45 or USB-C
Management Ports 1x RJ-45 out-of-band management

Advanced Security Features
Access Control MAC-based, 802.1X, and Web-based authentication
Policy Enforcement Firewall Yes, role-based
Dynamic Segmentation Supported with Aruba ClearPass
DHCP Snooping Yes
IP Source Guard Yes
ARP Protection Yes

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CSA, CE, FCC Class A, VCCI, BSMI
Green Compliance RoHS, WEEE
