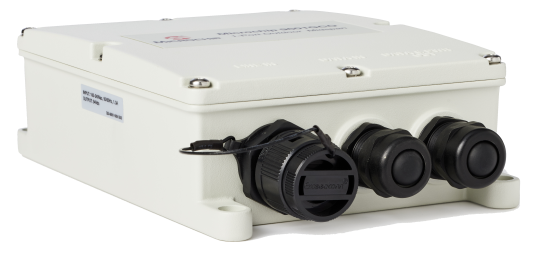

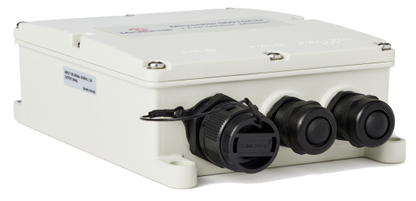

BOSCH 90W Outdoor IEEE 802.3bt PoE Adapter, 100–240VAC Input, TAA

VENDOR: BOSCH Mfg Part#: NPD-9001-EBT UPC#: 800549625098
1 2
Photo is for illustration purposes only. Actual product may be different.
$561.00
$561.00
Sale Sold out
Shipping calculated at checkout.
  • Delivers up to 90W PoE power via IEEE 802.3bt single port
  • Supports input voltage range of 100–240VAC for global compatibility
  • Outdoor-rated design for rugged environmental conditions
  • Compliant with IEEE 802.3bj data link protocol standard
  • TAA-compliant for government and federally funded deployments
  • Manufactured in Israel, supporting traceable supply chains

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports high-power PoE applications like PTZ cameras and wireless APs with its 90W output
  • Ensures regulatory compliance for government use through TAA certification
  • Outdoor construction guarantees performance in harsh environments, reducing maintenance costs

Product Overview

90W IEEE 802.3BT SINGLE PORT 100-240 VAC INPUT OUTDOOR TAA COMPLIANT

Specifications

Product Overview
Manufacturer BOSCH
Product Name 90W Outdoor IEEE 802.3bt PoE Adapter
Manufacturer Part Number NPD-9001-EBT
Type Power over Ethernet (PoE) Injector
Form Factor Outdoor, Wall Mountable
Power Output 90W
Power Input 100–240V AC, 50/60Hz
Maximum Output Voltage 56V DC
Product Category Media Converter
PoE Standard Supported IEEE 802.3bt (Type 4)
Output Power Modes IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Israel
TAA Compliance Yes
Certifications FCC Class A, ICES-003, CE, UL/cUL listed
Environmental Compliance RoHS, REACH

Advanced Security Features
Built-in Security Features Port overload and short-circuit protection
Authentication Mechanism
Firewall Capabilities
Intrusion Detection/Prevention

Interfaces
Data Link Protocol IEEE 802.3bj
Network Ports 2 x RJ-45 (1 Input, 1 Output)
Data Transfer Rate 10/100/1000 Mbps
Cable Type Supported CAT5e or better (up to 100m)
Pin Assignment 4-pair powering over standard Ethernet cable
Surge Protection Line to Ground 6kV
Isolation Voltage >= 1500 VRMS

Physical & Environmental
Dimensions 90 x 100 x 230 mm (3.5 x 3.9 x 9.1 in)
Weight 1.2 kg (2.65 lbs)
Enclosure Rating IP66/IP67
Mounting Options Wall Mount
Operating Temperature -40 °C to +65 °C (-40 °F to +149 °F)
Storage Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Operating Humidity 10% to 95% (non-condensing)
Cooling Type Passive (fanless)
Color Gray

Cloud Management & Licensing
Cloud Management
Licensing Requirement No licensing required
Remote Management Features
