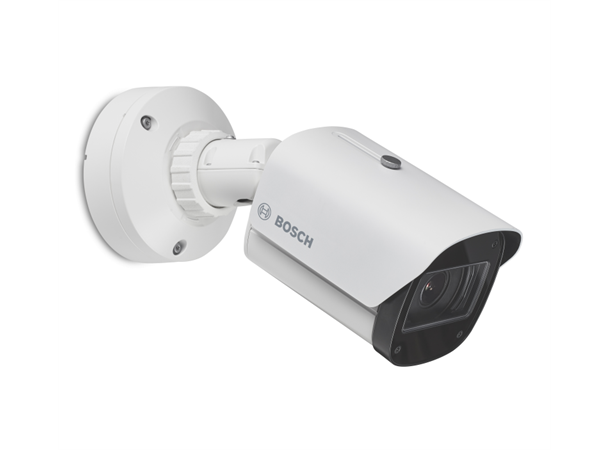

BOSCH BULLET 2MP HDR X 4.7-10MM IP66/67 IK10 Security Camera

VENDOR: BOSCH Mfg Part#: NBE-7702-ALX UPC#: 800549984591
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,901.00
$1,901.00
Sale Sold out
Shipping calculated at checkout.
  • 2MP HDR imaging sensor for high-clarity video in dynamic lighting
  • 4.7–10mm lens supports variable focal length applications
  • IP66/67-rated enclosure provides protection against dust and water
  • IK10-rated rugged housing for anti-vandal protection
  • TAA compliant origin (Portugal)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • HDR imaging ensures better visibility and detail in mixed-light environments
  • Weatherproof and vandal-resistant construction suits critical outdoor installations
  • TAA compliance makes it eligible for government and regulatory-sensitive projects

Product Overview

The BOSCH BULLET 2MP HDR X 4.7-10MM IP66/67 IK10, model NBE-7702-ALX, delivers robust surveillance capabilities packaged for outdoor installation. Equipped with a 2MP HDR image sensor and a 4.7–10mm lens, it ensures clarity across challenging lighting conditions. With an IP66/67 weatherproof and IK10 vandal-resistant housing, it's built for high-risk environments. TAA compliance and Portuguese origin make it suitable for governmental or critical deployments.

Specifications

Product Overview
Manufacturer BOSCH
Model NBE-7702-ALX
Product Type IP Bullet Camera
Image Sensor 1/2.8" progressive scan CMOS
Effective Pixels 1920 x 1080 (2MP)
Lens Type Motorized varifocal
Focal Length 4.7–10 mm
Aperture Range F1.6 – F2.9
Day/Night Functionality True Day/Night with IR-cut filter
Minimum Illumination 0.017 lux (color), 0 lux (IR on)
IR Illumination Distance Up to 50 m (164 ft)
Digital Zoom 16x
High Dynamic Range (HDR) Yes, up to 120 dB
Form Factor Bullet
Power Requirements PoE (802.3af Class 3), 12 VDC
Power Consumption Up to 10 W

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Portugal
TAA Compliant Yes
ONVIF Compliance Profile S, G, T
Certifications FCC, UL, CE, RoHS, WEEE
Environmental Standards ISO/IEC 14001

Advanced Security Features
Video Analytics Essential Video Analytics (IVA)
Motion Detection Intelligent motion detection
Privacy Masking Up to 8 programmable zones
Tamper Detection Yes
Secure Boot Yes
Data Encryption HTTPS, TLS, SRTP, 802.1x

Interfaces
Network Interface RJ-45 10/100BASE-T Ethernet
Video Compression Formats H.265, H.264, MJPEG
Audio Interface 1 Input / 1 Output
Alarm I/O 2 Inputs / 1 Output
Edge Storage microSD slot (up to 2 TB, SDXC)

Physical & Environmental
Housing Material Aluminum with polycarbonate window
Ingress Protection IP66 / IP67
Vandal Resistance IK10
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Operating Humidity 5% to 93% RH, non-condensing
Dimensions (L x W x H) 253 x 90 x 90 mm (9.96 x 3.54 x 3.54 in)
Weight 1.2 kg (2.65 lb)
Mount Type Universal wall/ceiling mount bracket included

Cloud Management & Licensing
Remote Management Bosch Video Management System (BVMS), Video Security App
Web Interface Built-in web server via HTTPS
Firmware Upgrade Remote over network
Licensing Requirements BVMS or third-party VMS license may be required
