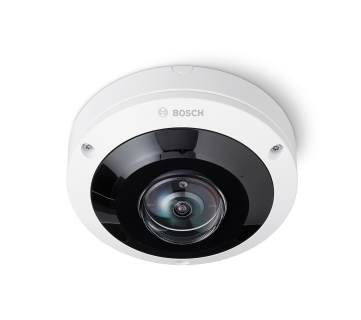

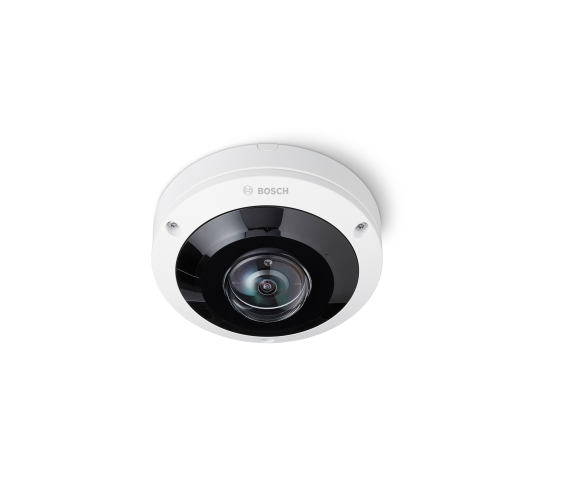

BOSCH NDS-5703-F360LE-GOV Fixed Dome 6MP 360° IP66 IR Gov Camera

VENDOR: BOSCH Mfg Part#: NDS-5703-F360LE-GOV UPC#: 800549374811
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,078.00
$1,078.00
Sale Sold out
Shipping calculated at checkout.
  • 6MP resolution for high-definition imaging
  • 360-degree surveillance coverage
  • IP66-rated weatherproof housing for harsh environments
  • Built-in infrared (IR) functionality for night vision
  • TAA compliant, suitable for government use
  • Manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for government and secured facilities requiring TAA-compliant surveillance
  • 360-degree coverage reduces the need for multiple cameras, lowering installation costs
  • Weatherproof IP66 construction ensures dependable performance in outdoor deployments

Product Overview

The BOSCH NDS-5703-F360LE-GOV fixed dome camera delivers 6MP resolution and 360-degree wide-angle coverage, engineered to provide complete situational awareness with a single camera unit. This high-definition surveillance solution is suitable for both indoor and outdoor environments, benefiting from its IP66-certified weather-resistant housing that protects against dust and heavy rain.

Equipped with infrared (IR) functionality, this model captures clear images even in low-light or nighttime scenarios, enhancing round-the-clock monitoring capabilities. The device's compliance with Trade Agreements Act (TAA) standards underscores its appropriateness for use in government and mission-critical installations where sourcing and security are paramount considerations.

Manufactured in Taiwan with a BOSCH pedigree, the NDS-5703-F360LE-GOV offers robust infrastructure protection and simplifies deployment by minimizing blind spots. With a dome form factor, the system offers discreet yet diligent coverage, enhancing security without sacrificing aesthetics.

Specifications

Product Overview
Type Fixed Dome Network Camera
Form Factor Dome
Resolution 6 Megapixel
Image Sensor 1/1.8" CMOS
Lens Type Fisheye lens for 360° panoramic view
Day/Night Function Yes with mechanical IR cut filter
Minimum Illumination (Color) 0.04 lux
Minimum Illumination (B/W) 0 lux with IR on
Infrared Illumination Distance Up to 25 meters (82 feet)
IR LEDs Yes, built-in
Wide Dynamic Range (WDR) 120 dB
Power Supply Options PoE (IEEE 802.3af Class 3), 12 VDC
Power Consumption 9.5 W max
Weight 730 g (1.61 lb)

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Environmental Certification RoHS, WEEE
Certifications CE, FCC, UL, CSA, EN 60950-1

Advanced Security Features
Data Encryption HTTPS, SRTP, TLS 1.2/1.3, AES encryption
Access Control Multi-user support with password protection and user access levels
Secure Boot Yes

Interfaces
Ethernet Interface 1 x RJ45 10/100 Mbps
Audio Input/Output 1 x Audio In, 1 x Audio Out
Alarm I/O 1 input, 1 output
Video Compression H.265, H.264, MJPEG
Streaming Capacity Four (4) configurable streams
Local Storage microSDXC card slot (up to 2 TB)

Physical & Environmental
Housing Type Outdoor-rated dome with vandal resistance
Ingress Protection IP66
Impact Protection IK10
Operating Temperature -30°C to +50°C (-22°F to +122°F)
Operating Humidity 5% to 93% RH, non-condensing
Dimensions (Ø x H) 149.5 mm x 54.7 mm (5.89 x 2.15 in.)

Cloud Management & Licensing
Remote Management Bosch Video Management System (BVMS), Bosch Project Assistant, or ONVIF Profile S
ONVIF Compliance Profile S, G, T
Licensing Requirement No license required for basic operation
