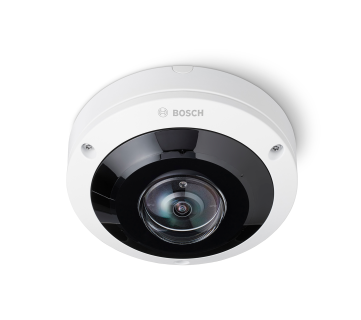

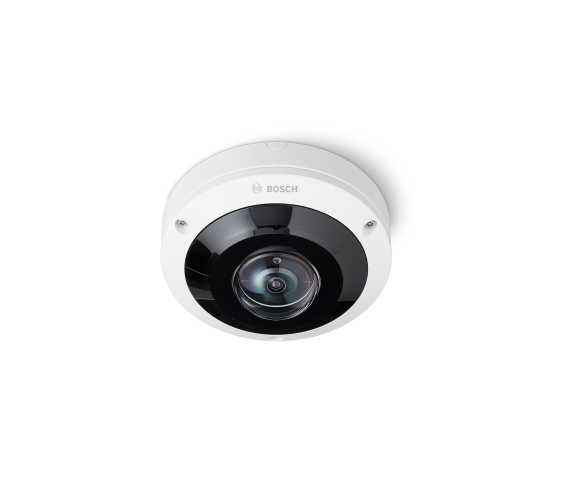

BOSCH NDS-5704-F360LE-GOV Fixed Dome 12MP 360° IP66 IR Camera

VENDOR: BOSCH Mfg Part#: NDS-5704-F360LE-GOV UPC#: 800549374828
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,311.00
$1,311.00
Sale Sold out
Shipping calculated at checkout.
  • High-resolution 12MP CMOS sensor for detailed imaging
  • 360-degree fixed dome coverage eliminates blind spots
  • IP66-rated enclosure for outdoor and harsh environment use
  • Infrared functionality for effective night-time surveillance
  • TAA compliant and manufactured in Taiwan for government use
  • Supports 1–30 frames per second video streaming

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Optimized for full 360-degree security coverage, minimizing the need for multiple cameras
  • Rugged IP66 design ensures longevity and reliable operation in outdoor or industrial environments
  • TAA compliance makes it ideal for U.S. federal and governmental procurement requirements

Product Overview

Fixed dome 12MP 360 IP66 IR Gov - Dome - CMOS - 12MP - 1-30

Specifications

Product Overview
Product Type Fixed Dome IP Camera
Form Factor Dome
Image Sensor Type CMOS
Image Sensor Size 1/1.8 inch
Megapixels 12 MP
Lens Type Fisheye
View Type 360° panoramic
Day/Night Functionality Yes with IR cut filter
Infrared Illumination Yes
Maximum IR Range 20 meters (65.6 ft)
Minimum Illumination 0.04 lux (Color), 0 lux (IR on)
Dynamic Range 120 dB Wide Dynamic Range (WDR)
Power Requirements PoE (IEEE 802.3af Class 3), 12 VDC
Power Consumption 12 W (maximum)
Weight Approx. 650 g (1.4 lb)

Wireless Features
Wi-Fi Support

Compliance & Origin
TAA Compliance Yes
Country of Origin Taiwan
Certifications FCC, CE, UL, RoHS
ONVIF Compliance Yes (Profile S, G, T)

Advanced Security Features
Video Encryption AES 256-bit
Secure Boot Yes
User Authentication Password protection, IEEE 802.1x
Firmware Update Security Signed firmware validation
Privacy Masking Yes
Video Analytics Intelligent Video Analytics (IVA)

Interfaces
Ethernet Ports 1 x RJ-45 10/100Base-T
Audio Input/Output 1 in / 1 out
Alarm Input/Output 1 in / 1 out
Video Compression Formats H.265, H.264, MJPEG
Maximum Resolution 4000 x 3000 @ 30 fps
Edge Storage microSD, microSDHC, microSDXC (up to 2 TB)

Physical & Environmental
Housing Material Aluminum and polycarbonate
IP Rating IP66
Tamper Detection Yes (camera shake, open housing)
IK Rating IK10 impact-resistant
Operating Temperature -40°C to +50°C (-40°F to +122°F)
Operating Humidity 10% to 90% (non-condensing)
Dimensions (W x H x D) 149 x 57 mm (5.87 x 2.24 in)
Mounting Options Ceiling, surface, wall, pendant

Cloud Management & Licensing
Web Interface Yes (browser-based configuration)
Remote Management Yes (via Bosch Video Management System)
Mobile App Support Yes (Bosch Video Security App)
Cloud Storage Support Yes (via integration with Bosch Cloud VMS)
