Brother TJ4520TNC 4.5" Thermal Printer w/Cutter, 300dpi, LAN/USB/Ser

VENDOR: BROTHER Mfg Part#: TJ4520TNC UPC#: 700908007872
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,850.47
$1,850.47
Sale Sold out
MSRP: $2,840.00
Shipping calculated at checkout.
  • 300 dpi resolution for sharp, scannable label output
  • Print speed up to 12 inches per second for rapid batch processing
  • Supports LAN, USB, Serial, and Dual Host-USB interfaces for versatile connectivity

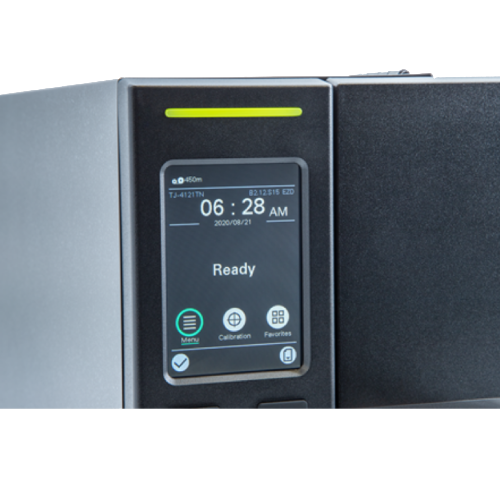

  • Color LCD for intuitive user interaction and status feedback
  • Integrated cutter enhances workflow efficiency for varied label sizes
  • TAA compliant and manufactured in Taiwan, suitable for government use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports high-speed, high-resolution thermal printing for demanding industrial use cases
  • Multiple connectivity options ensure easy integration with existing systems and reduce compatibility issues
  • Comes with a 2-year Premier Warranty, offering extended coverage and improved ROI over time

Product Overview

The Brother TJ4520TNC industrial thermal printer delivers 300 dpi high-resolution output at 12 ips speed, ideal for high-volume label production. It features a 4.5-inch print width with an integrated cutter and a color LCD for straightforward operation. With multiple interfaces (LAN, USB, Serial, Dual Host-USB), it integrates seamlessly into diverse IT environments. Its 2-Year Premier Warranty ensures peace of mind in intensive use cases. Certified for TAA compliance and built in Taiwan, it meets strict industrial and governmental standards.

Specifications

Product Overview
Product Type Industrial Thermal Label Printer
Model Brother TJ4520TNC
Print Technology Thermal Transfer / Direct Thermal
Max Print Resolution 300 dpi
Maximum Print Speed 12 inches per second (ips)
Maximum Print Width 4.5 inches
Display Color LCD
Cutter Type Automatic Cutter
Ribbon Type Ink-side out
Ribbon Length Supported up to 600 meters
Ribbon Width Range 40 mm to 120 mm
Media Type Roll, Fanfold, Die-cut, Continuous, Black Mark, Notch
Media Sensors Transmissive, Reflective
Form Factor Desktop / Industrial
Power Supply Internal Universal Power Supply
Power Input 100–240V AC, 50–60Hz
Warranty 2 Years Premier Warranty

Physical & Environmental
Dimensions (W x D x H) 271 mm x 502 mm x 308 mm
Weight ~13.7 kg (30.2 lbs)
Operating Temperature 41°F to 104°F (5°C to 40°C)
Storage Temperature -40°F to 140°F (-40°C to 60°C)
Operating Humidity 25% to 85% non-condensing
Storage Humidity 10% to 90% non-condensing
Housing Material Metal chassis with industrial-grade cover

Cloud Management & Licensing
Remote Management Protocols b-PAC, Brother Web Connect, BRAdmin Professional
Driver Support Windows, Linux
Brother SDK/API Yes

Interfaces
USB Interface USB 2.0 Type B
Serial Interface RS-232C
LAN Interface 10/100/1000Base-T Ethernet
Dual Host-USB Interface Yes
GPIO Port Yes, 6-pin mini-DIN
Emulations Supported ZPL II, DPL, EPL, FBPL

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL, cUL, FCC Class B, CE, RoHS

Advanced Security Features
SNMP Support v1, v2c, v3
Secure Protocols HTTPS, FTPS, SSL/TLS
