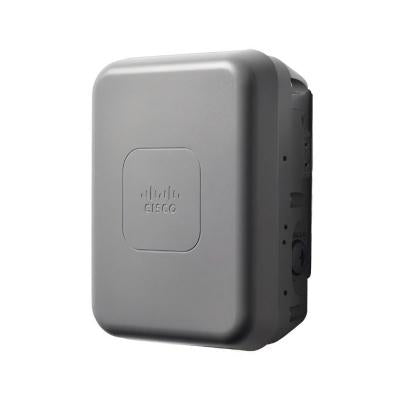

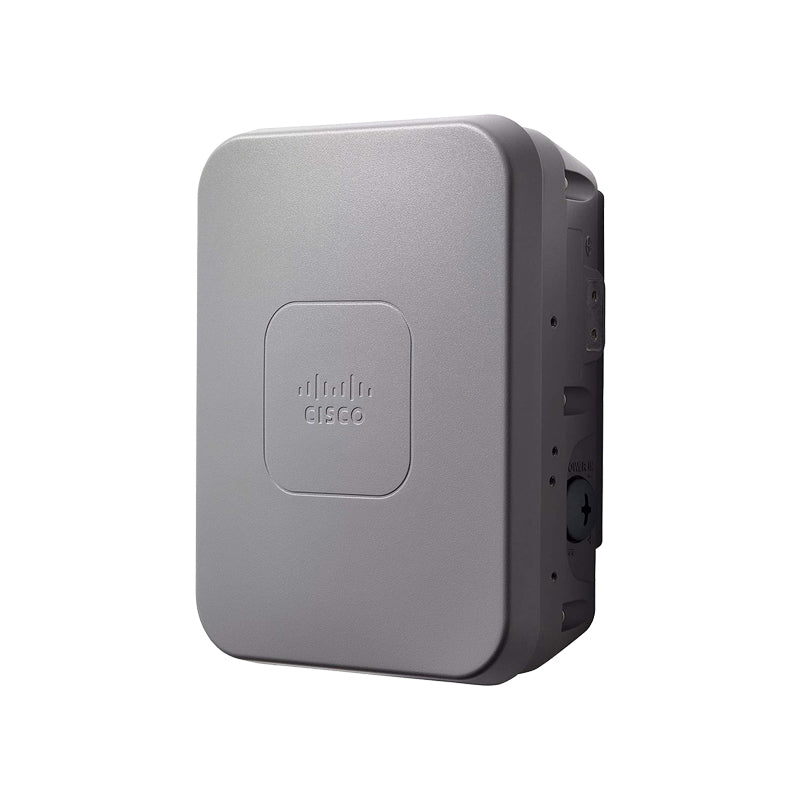

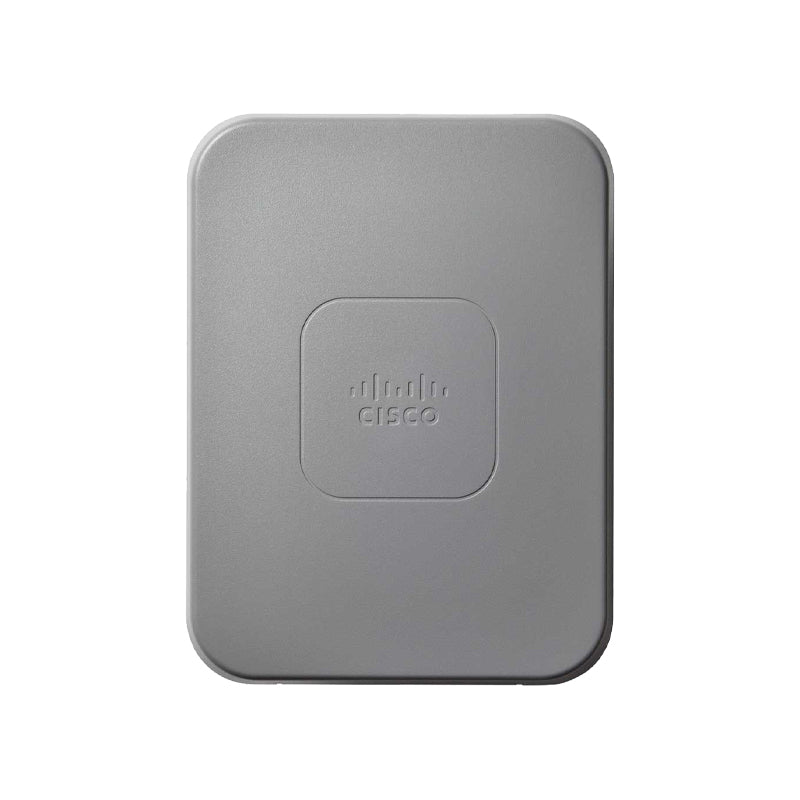

CISCO AIR-AP1562I-S-K9 802.11ac W2 Outdoor AP with Internal Antenna

VENDOR: CISCO Mfg Part#: AIR-AP1562I-S-K9
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,738.10
$1,738.10
Sale Sold out
MSRP: $2,549.23
Shipping calculated at checkout.
  • Supports 802.11ac Wave 2 wireless standard
  • Low-profile design with internal antenna for seamless outdoor installation
  • TAA compliant for government and regulated industry procurement
  • Manufactured in China or Mexico
  • Part of Cisco’s professional Networking family

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for outdoor wireless coverage in campuses and public spaces with integrated internal antenna
  • TAA compliance makes it suitable for government or public sector projects
  • Part of Cisco’s robust networking family, ensuring support and lifecycle continuity

Product Overview

The CISCO AIR-AP1562I-S-K9 is a Wave 2 802.11ac compliant low-profile outdoor access point designed for dependable performance in challenging outdoor environments. With internal antennas integrated into a compact chassis, this device ensures streamlined deployment with consistent signal performance. Ideal for public spaces and enterprise campuses, it supports high-reliability applications where aesthetics and performance are both priorities.

TAA compliance allows for inclusion in public sector projects, and a country of origin of China or Mexico aligns with common global sourcing standards. While detailed technical specs are not available, its classification within Cisco’s Networking family indicates its place within a scalable and secure network architecture. The device is tied to Cisco’s broader maintenance/support structure, ensuring longevity and minimal downtime for critical deployments.

Specifications

Product Overview
Product Type Wireless Access Point
Model Number AIR-AP1562I-S-K9
Series Cisco Aironet 1560 Series
Wireless Standard 802.11ac Wave 2
Deployment Outdoor
Antenna Type Internal Antennas
Form Factor Low-profile outdoor unit
Mounting Options Pole and wall mount
Weight 2.5 kg (5.5 lbs)
Power Options 802.3at PoE+, DC input, or Cisco Power Injector (AIR-PWRINJ1500-2=
Maximum Power Consumption 25.5W (PoE+)

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac Wave 2
Radios Dual-band concurrent radio (2.4 GHz and 5 GHz)
2.4 GHz Throughput 450 Mbps
5 GHz Throughput 1.3 Gbps
Number of Spatial Streams 4 per radio
Beamforming Yes
Antenna Gain 4 dBi (2.4 GHz), 6 dBi (5 GHz)

Compliance & Origin
TAA Compliant Yes
Country of Origin China / Mexico
Certifications UL 60950-1, UL 60950-22, FCC Part 15.407, ICES-003
Safety Compliance UL, cUL, CB
Environmental Compliance RoHS

Advanced Security Features
Security Standards 802.11i, WPA, WPA2, WPA3
Authentication Methods 802.1X, RADIUS, MAC filtering
Wireless Intrusion Detection Yes
Guest Access Control Yes
Access Control Lists (ACLs) Yes
Management Frame Protection 802.11w
Rogue Access Point Detection Yes

Interfaces
Number of Gigabit Ethernet Ports 2
Port Type 10/100/1000BASE-T autosensing (RJ-45)
Console Port Yes (RJ-45)
Data Transfer Rate Up to 1.3 Gbps (5 GHz), Up to 450 Mbps (2.4 GHz)
Uplink Port Support 1 x PoE-in
MIMO 4x4 MU-MIMO
Maximum Associated Clients 400+ per access point

Physical & Environmental
Dimensions (H x W x D) 10.6 x 8.9 x 4.4 in. (270 x 226 x 112 mm)
Enclosure Rugged, IP67-rated
Operating Temperature Range -40°C to 65°C (-40°F to 149°F)
Storage Temperature Range -50°C to 70°C (-58°F to 158°F)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Shock and Vibration IEC 60068-2-27; IEC 60068-2-64

Cloud Management & Licensing
Management Options Cisco Mobility Express, Cisco Wireless Controller, Cisco DNA Center
License Requirements Smart Licensing via Cisco DNA or traditional per-AP licensing
Management Interface Web-based GUI, CLI, SNMP
