Cisco Catalyst 9000 Compact Switch C9200CX-8UXG-2X-E, 8 UPoE Ports, 240W

VENDOR: CISCO Mfg Part#: C9200CX-8UXG-2X-E UPC#: 889728447201
  • Catalyst 9000 Compact Switch 8-Port UPoE with 4xmGig,240W,E
1 1

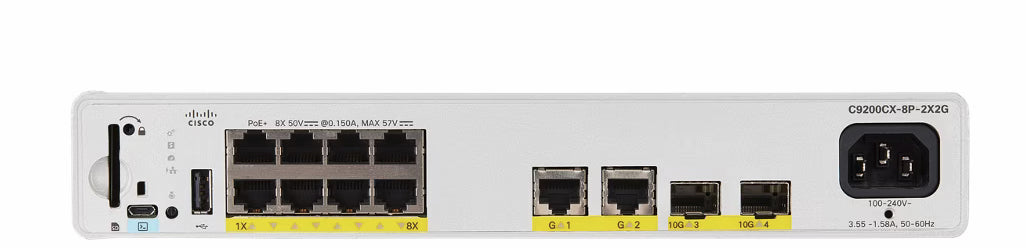

Photo is for illustration purposes only. Actual product may be different.
$2,017.73
$2,017.73
Sale Sold out
MSRP: $3,437.10
Shipping calculated at checkout.
  • - 8 UPoE ports supporting IEEE 802.3bt for high-power device connectivity
  • - 4 multigigabit (mGig) and 4 1G ports for scalable network access
  • - 2 x 10G uplinks for high-bandwidth core network integration
  • - Support for advanced Layer 2 and Layer 3 protocols including OSPFv3 and RIPv2
  • - 4 GB RAM and 8 GB Flash Memory for rapid configuration and storage
  • - Up to 32,000 MAC address entries, ideal for high-density environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - Supports a wide range of Layer 2/3 protocols, enabling dynamic, secure routing and segmentation
  • - High power output (315W) via 8 UPoE ports reduces need for external power injectors or supplies
  • - TAA-compliance and limited lifetime warranty ensure reliability in federal or institutional deployments

Product Overview

The Cisco Catalyst C9200CX-8UXG-2X-E is a compact, high-performance switch for enterprise-class networking. With 8 UPoE ports, 4 multigigabit (mGig) interfaces, and 2 x 10G uplinks, it ensures robust connectivity and power delivery. The switch supports advanced protocols like OSPFv3, RIPv2, and IEEE 802.1x, complemented by 4 GB RAM and 8 GB flash for efficient operations. A 32,000-entry MAC address table, 315W internal power supply, TAA compliance, and limited lifetime warranty make it an ideal choice for secure, scalable, edge deployments.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Series Cisco Catalyst 9200CX Series
Model C9200CX-8UXG-2X-E
Ports 8 x 1G/2.5G/5G/10GBase-T UPoE + 2 x 10G SFP+
PoE Budget 240W
Forwarding Bandwidth 80 Gbps
Switching Capacity 160 Gbps
Forwarding Rate 119.04 Mpps
MAC Address Table Size 32,000 entries
Flash Memory 8 GB
RAM 4 GB
CPU Quad-core ARM Cortex-A72 @ 1.5 GHz
Input Power 100-240V AC, 50-60 Hz
Internal Power Supply 315W
Mounting Options DIN rail, wall-mount, desktop

Wireless Features
Wireless Support No integrated wireless

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL, CSA, CE, FCC Part 15 Class A, RoHS
Safety Compliance UL/CSA 60950-1, IEC/EN 60950-1
EMC Standards EN 55032, CISPR32, EN55024

Advanced Security Features
Access Control IEEE 802.1X, MACsec 256-bit encryption
Device Authentication Secure Boot and Trust Anchor module
Threat Detection Enforcement via Cisco DNA for Threat Containment
Policy Enforcement TrustSec SGT-based segmentation
Encrypted Traffic Analytics Yes

Interfaces
Total Ethernet Ports 8 x multigigabit UPoE ports
Port Speed 100M/1G/2.5G/5G/10G
Uplink Ports 2 x 10G SFP+
Console Ports 1 x USB Type-B, 1 x RJ-45
Management Ports 1 x 1G Ethernet out-of-band
USB Ports 1 x USB 2.0 Type-A storage port

Physical & Environmental
Dimensions (W x D x H) 10.33 x 8.29 x 1.73 in (262.4 x 210.6 x 44 mm)
Weight 6.4 lbs (2.9 kg)
Operating Temperature 32°F to 122°F (0°C to 50°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Acoustic Noise Fanless (0 dBA)
Cooling Fanless convection cooled

Cloud Management & Licensing
Management Interface Cisco DNA Center, CLI, Web UI
Software Licensing Cisco DNA Essentials or Advantage license required
Included License No; license purchased separately
Cloud Capabilities Cisco DNA Center, Software-Defined Access (SD-Access)
