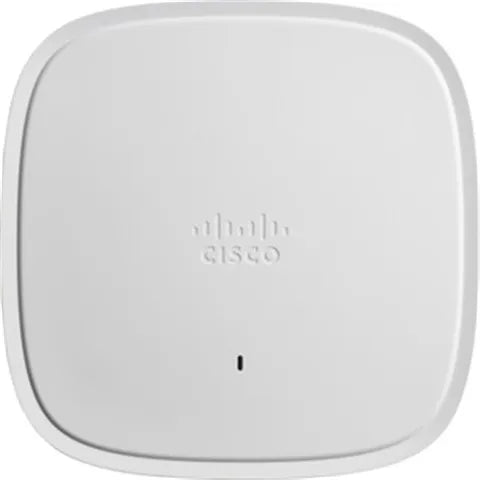

Cisco Catalyst 9130AXE Access Point with Stadium Antenna, -K Reg Domain

VENDOR: CISCO Mfg Part#: C9130AXE-STA-K
1 2
Photo is for illustration purposes only. Actual product may be different.
$1,778.85
$1,778.85
Sale Sold out
MSRP: $2,608.98
Shipping calculated at checkout.
  • Supports IEEE 802.11a/b/g/n/ac/ax wireless standards
  • 8x8 downlink MU-MIMO and 4x4 MIMO configuration
  • Embedded wireless controller functionality
  • 2048 MB DRAM for efficient computing resources
  • Connectivity interfaces include RJ-45 and USB 2.0
  • TAA compliant, manufactured in China and Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Designed for high-density deployments, such as stadiums, with advanced antenna and 8x8 MU-MIMO support.
  • Includes embedded wireless controller, reducing need for separate controller hardware and lowering infrastructure complexity.
  • TAA-compliant and backed by Cisco's limited lifetime warranty—ideal for government and enterprise environments.

Product Overview

The Cisco Catalyst 9130AXE Access Point with Stadium Antenna and -K Regulatory Domain is designed for high-density wireless environments. Featuring 8x8 downlink MU-MIMO and support for IEEE 802.11a/b/g/n/ac/ax, it ensures robust and scalable connectivity. With 2048 MB DRAM, TAA compliance, and a limited lifetime hardware warranty, it's an ideal solution for enterprises needing resilient wireless performance in regulated settings.

Specifications

Product Overview
Product Type Wireless Access Point
Model Cisco Catalyst 9130AXE with Stadium Antenna
Form Factor External
Mounting Options Ceiling, Wall, and Stadium Mount
Processor Quad-core ARM CPU
Memory (DRAM) 2048 MB
Flash Memory 1024 MB
Power Options 802.3at PoE+, Cisco UPOE
Power Consumption Up to 28.3W (with USB and dual radios active)
Weight 3.5 lbs (1.6 kg)

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Band Support 2.4 GHz, 5 GHz
MU-MIMO 8x8 MU-MIMO Downlink, 4x4 MU-MIMO Uplink
Maximum Spatial Streams 8 spatial streams
Max Clients Per Radio Up to 200 clients per radio
Modulation Type 1024-QAM
Antenna Configuration External Stadium Antenna
Beamforming Yes
OFDMA Supported (Uplink and Downlink)
Transmit Power Up to 23 dBm (depending on regulatory domain)

Compliance & Origin
Country of Origin China / Mexico
TAA Compliant Yes
Regulatory Domain -K (Korea)
Certifications UL 60950-1, CE Mark, FCC Part 15 Class B, ICES-003
WEEE Compliance Yes

Advanced Security Features
Integrated Security Yes
Identity Services Engine (ISE) Support Yes
Encrypted Traffic Analytics Yes
Threat Detection & Containment Yes
WPA3 Support Yes
Secure Boot Yes
Trust Anchor Module Yes

Interfaces
Uplink Interface 1x 5G/2.5G/1G Multigigabit Ethernet (mGig)
Downlink Interface 1x 1 Gbps Ethernet
Console Port 1x Micro USB
USB Port 1x USB 2.0
Data Transfer Rate Up to 5.38 Gbps
PoE Input 802.3at and Cisco UPOE

Physical & Environmental
Dimensions 9.4 x 9.4 x 2.1 in (23.9 x 23.9 x 5.3 cm)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 90% (non-condensing)
Enclosure Rating IP20 (Indoor Use Only)

Cloud Management & Licensing
Management Options Cisco DNA Center, CLI, GUI (Web UI), Mobile App
Licensing Model Cisco Smart Licensing
Supported Controller Cisco Catalyst 9800 Series Wireless Controllers
Cloud-Managed Yes, via Cisco DNA Center
Included License Network Essentials or Network Advantage (optional)
