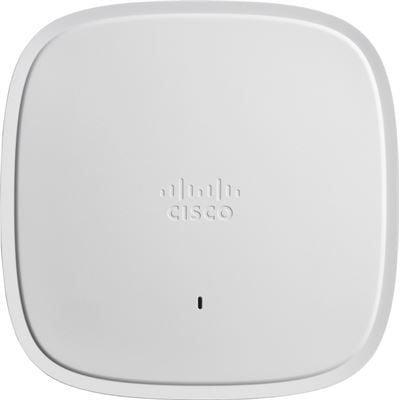

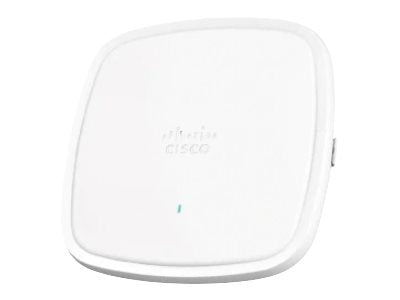

Cisco Catalyst 9130AXE with Stadium Antenna, -C Reg Domain

VENDOR: CISCO Mfg Part#: C9130AXE-STA-C
1 2
Photo is for illustration purposes only. Actual product may be different.
$1,778.85
$1,778.85
Sale Sold out
MSRP: $2,608.98
Shipping calculated at checkout.
  • 8x8 downlink MU-MIMO and 4x4 MIMO support for high-density wireless performance
  • Supports Wi-Fi 6 (IEEE 802.11ax) as well as legacy wireless standards (a/b/g/n/ac)
  • Embedded wireless controller functionality for centralized network control
  • 2048 MB DRAM supports advanced performance and services
  • Interfaces include RJ-45 and USB 2.0 ports for flexible connectivity
  • TAA compliance ensures suitability for government and enterprise installations

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Embedded wireless controller reduces need for separate infrastructure, simplifying deployment
  • Wi-Fi 6 support and high MU-MIMO streams provide exceptional performance in high-user environments
  • Limited lifetime hardware warranty adds long-term value and customer assurance

Product Overview

The Cisco Catalyst 9130AXE with Stadium Antenna is a high-end access point built for enterprise-scale Wi-Fi 6 network deployments. Supporting IEEE 802.11a/b/g/n/ac/ax standards with 8x8 MU-MIMO downlink and 4x4 uplink, it enables superior wireless capacity in high-density environments. The device features 2048 MB DRAM, TAA compliance, and offers flexible connectivity via RJ-45 and USB 2.0. Designed for long-term reliability, it includes a limited lifetime warranty and is suitable for government and critical infrastructure applications.

Specifications

Product Overview
Product Type Wireless Access Point
Model Cisco Catalyst 9130AXE with Stadium Antenna
Form Factor External (Ceiling/Wall Mount or Outdoor with Antenna)
Mounting Options Wall mount, ceiling mount, pole mount (with accessory)
Processor Quad-core ARM 64-bit CPU
RAM 2048 MB
Flash Memory 1024 MB
Power Options PoE+ (802.3at), Cisco UPOE, or external 48VDC
Power Consumption Up to 30.3 W
Wi-Fi Generation Wi-Fi 6 (802.11ax)
Release Year 2020

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax
Dual-Band Operation Yes (2.4 GHz and 5 GHz)
MIMO Configuration 8x8 MU-MIMO downlink, 4x4 uplink
Max Data Rate 5.38 Gbps
Band Steering Supported
Spatial Streams Up to 8
OFDMA Supported
Target Wake Time (TWT) Supported
External Antenna Support Yes, Stadium Antenna included
Beamforming Yes

Compliance & Origin
Country of Origin China / Mexico
TAA Compliance Yes
Regulatory Domains -C (China Domain)
Certifications FCC, IC, CE, UL, RoHS, IEEE 802.11 compliance
Warranty Limited Lifetime Warranty

Advanced Security Features
Encryption Standards WPA3, WPA2, AES-CCMP, TKIP
Wireless IDS/IPS Yes, integrated
Trustworthy Systems Secure boot and runtime defenses
Threat Detection Cisco DNA Assurance and Encrypted Traffic Analytics (ETA)
Secure Boot Supported

Interfaces
LAN Interface 1x 100/1000/2500/5000 Multigigabit Ethernet (RJ-45)
Auxiliary Port 1x 10/100/1000 Ethernet (RJ-45) management port
Console Port 1x USB Type-C
USB Port 1x USB 2.0 Type A
Uplink Speed Up to 5 Gbps Ethernet
Supported Ethernet Standards 802.3ab, 802.3u, 802.3bz

Physical & Environmental
Dimensions (W x D x H) 220 x 220 x 52 mm
Unit Weight Approx. 2.0 kg (including antenna)
Operating Temperature -4°F to 131°F (-20°C to 55°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Ingress Protection Rating IP67 (with appropriate enclosure)
MTBF 250,000 hours

Cloud Management & Licensing
Cloud Management Platform Cisco DNA Center (optional)
Licensing Requirements Cisco DNA Licensing required
Management Interfaces Web UI, CLI, Cisco DNA Center, or Cisco IOS XE
Software Features Flexible Radio Assignment, CleanAir Pro, Intelligent Capture
