Products Routers & Wireless Access Points CISCO Catalyst 9130AXE with...

CISCO Catalyst 9130AXE with Stadium Antenna, -T Reg Domain

VENDOR: CISCO Mfg Part#: C9130AXE-STA-T
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,778.85
$1,778.85
Sale Sold out
MSRP: $2,608.98
Shipping calculated at checkout.
  • Supports IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) standards
  • 8x8 MU-MIMO downlink and 4x4 uplink MIMO for high client capacity
  • Includes embedded wireless controller functionality
  • 2048 MB DRAM for reliable multi-user performance
  • TAA compliant for government and enterprise use
  • Backed by Cisco's limited lifetime hardware warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Optimized for high-density environments with 8x8 MU-MIMO support for maximum throughput.
  • Integrated wireless controller removes the need for additional network hardware, reducing complexity and cost.
  • Proven enterprise-grade hardware backed by a limited lifetime warranty and TAA compliance offers peace of mind for critical deployments.

Product Overview

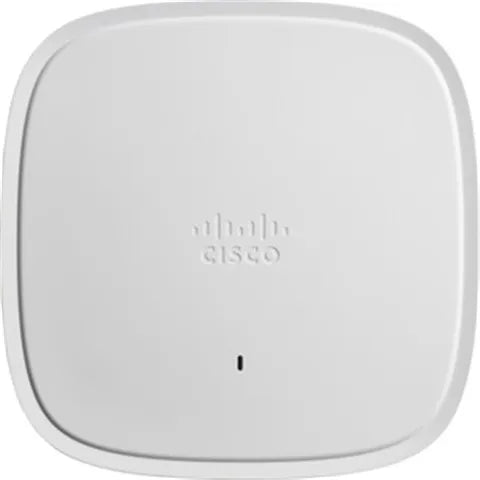

The Cisco Catalyst 9130AXE with Stadium Antenna is a high-density wireless access point designed for outdoor or large-scale venue deployments. It supports IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) and offers top-tier performance with 8x8 MU-MIMO downlink and 4x4 uplink MIMO. Built-in 2048 MB DRAM ensures smooth handling of high client traffic. A limited lifetime hardware warranty is included, and with TAA compliance and embedded controller capabilities, this device delivers both regulatory and technical confidence. Originating from China or Mexico, it ensures enterprise-grade durability and efficiency in mission-critical wireless environments.

Specifications

Product Overview
Product Type Wireless Access Point
Model Catalyst 9130AXE with Stadium Antenna
Part Number C9130AXE-STA-T
Product Family Cisco Catalyst 9100 Series
Wi-Fi Generation Wi-Fi 6 (802.11ax)
Form Factor Outdoor, External Antenna
Power Options PoE (802.3at/802.3bt), Cisco Universal PoE (UPOE)
Max Power Consumption 31.4 W
Memory (RAM) 2048 MB DRAM
Flash Memory 1024 MB
Mounting Options Ceiling mount, Wall mount, Outdoor stadium pole mount
Warranty Limited Lifetime Hardware Warranty

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax
Antenna Type External stadium antenna (sold separately)
MIMO Configuration 8x8 MU-MIMO downlink, 4x4 MU-MIMO uplink
Maximum Data Rate 5.38 Gbps
Supported Frequency Bands 2.4 GHz and 5 GHz
OFDMA Support Yes (uplink and downlink)
Target Wake Time Yes
BSS Coloring Yes
Client Load Balancing Yes
Beamforming Yes

Compliance & Origin
Country of Origin China / Mexico
TAA Compliant Yes
Regulatory Domain -T (Thailand)
Certifications UL 60950-1, UL 62368-1, FCC Part 15B, ICES-003, EN 301 489, RSS-247, EN 60601

Advanced Security Features
WPA3 Support Yes
Policy Enforcement Cisco TrustSec and SGTs
Secure Boot Yes
Runtime Defenses Yes – Image signing and integrity checks
Rogue Detection Yes
Identity PSK (iPSK) Yes
Impact Detection Yes (Telemetry and Analytics Capabilities)

Interfaces
Uplink Interface 1x 5 Gbps mGig Ethernet port
Second Ethernet Port 1x 1 Gbps Ethernet port
Console Port 1x RJ-45 console port
USB Interface 1x USB 2.0 Type A
Data Transfer Rates Up to 5 Gbps wired
LAN Interface Type 802.3at and 802.3bt PoE

Physical & Environmental
Dimensions (H x W x D) 4.8 x 8.7 x 8.7 in (12.2 x 22.1 x 22.1 cm)
Weight 5.1 lbs (2.3 kg)
Operating Temperature Range -40°C to +65°C (-40°F to +149°F)
Storage Temperature -50°C to +70°C (-58°F to +158°F)
Operating Humidity 10% to 95% (non-condensing)
Enclosure Rating IP67 (Outdoor-rated)

Cloud Management & Licensing
Controller Support Cisco Catalyst 9800 Series Controllers or Embedded Wireless Controller on Catalyst 9000 switches
Cloud Managed Cisco DNA Center (optional)
Licensing Model Cisco Smart Licensing
Included License No default; license required based on deployment (e.g., DNA Essentials/Advantage)
