Cisco Catalyst 9200CX C9200CX-12T-2X2G-A Switch, 12-Port, 10Gbps, Advanced

VENDOR: CISCO Mfg Part#: C9200CX-12T-2X2G-A UPC#: 889728447133
  • CATALYST 9000 COMPACT SWITCH 12 PORTS, DATA ONLY, ADV
1 1

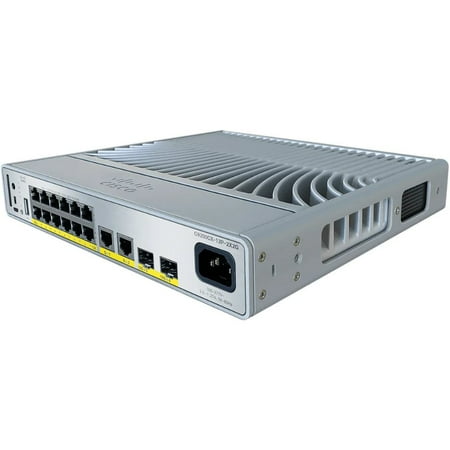

Photo is for illustration purposes only. Actual product may be different.
$1,358.81
$1,358.81
Sale Sold out
MSRP: $1,992.92
Shipping calculated at checkout.
  • 12-port 1G, 2x10G SFP+, and 3x1G interface configuration for versatile connectivity
  • Supports Layer 2 and Layer 3 protocols including IPv4, IPv6, RIP, and OSPFv3
  • AES encryption and Cisco IOS XE for secure, scalable operations
  • Jumbo frame support up to 9198 bytes for superior data throughput
  • Built-in remote management via SNMP, DHCP, and Syslog
  • Exceptional reliability with MTBF of 960,180 hours and LED status indicators

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise edge environments requiring secure, high-density 1G connectivity and dual 10G uplinks
  • TAA-compliant and includes a limited lifetime warranty, making it suitable for government and contracted deployments
  • Compact 1U form factor with integrated Plug and Play functionality reduces deployment time and rack space requirements

Product Overview

The Cisco Catalyst 9200CX C9200CX-12T-2X2G-A is a compact Layer 2/3 managed switch designed for advanced enterprise networking. It supports 12 1G ports, 2x10G SFP+ uplinks and 3x1G interfaces, housed in a 1U rackmount form. Standards-compliant and security-ready, it handles dynamic routing with IPv4, IPv6, RIP, and OSPFv3, while SNMP, DHCP, and Syslog simplify remote management. AES encryption and Cisco IOS XE enable secure and scalable operations.

Backed by 4 GB RAM, 8 GB Flash, and jumbo frame support, the switch delivers robust performance. Operational resilience is enhanced by an MTBF of 960,180 hours and wide temperature tolerance. With TAA compliance and a limited lifetime warranty, it's highly suited for enterprise edge deployments and government sectors.

Specifications

Product Overview
Type Layer 2/3 Managed Switch
Form Factor 1U Rackmount
Weight 4 lbs.
Power Requirements 100 to 240 VAC, 50 to 60 Hz
Power Consumption 80 Watt
Memory (RAM) 4 GB
Flash Memory 8 GB
MTBF 960180 hours
Operating System Cisco IOS XE
MAC Address Table Size 32000

Wireless Features

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Compliance Standards IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3bt

Advanced Security Features
Encryption AES
Routing Protocol Support IPv4, IPv6, RIPv1, RIPv2, OSPFv3
Access Control IEEE 802.1x

Interfaces
Port Configuration 12x 1G Ethernet ports
Uplink Ports 2x 10G SFP+, 2x 1G copper, 1x 1G CU PD (802.3bt Class 6)
Data Transfer Rate 10 Gbps
Jumbo Frame Support 9198 bytes
Data Link Protocols Gigabit Ethernet
Media Layer Supported Layer 2 and Layer 3
Status Indicators LED indicators

Physical & Environmental
Width 10.6 Inch
Depth 6.5 Inch
Height 1.73 Inch
Min Operating Temperature -5 °C
Max Operating Temperature 45 °C (up to 1500m)
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C

Cloud Management & Licensing
Remote Management Protocols SNMP, Syslog, DHCP
Plug and Play Enabled Yes
Management Interface Cisco IOS XE CLI, Web UI, SSH, SNMP
Licensing Model Cisco DNA Licensing (Essentials, Advantage)
