Cisco Catalyst 9400 48-Port POE+ RJ-45 Gigabit Ethernet Line Card

VENDOR: CISCO Mfg Part#: C9400-LC-48P++= UPC#: 889728150132
  • Cisco Catalyst 9400 Series 48-Port POE+ 10/100/1000 (RJ-45)
1 1

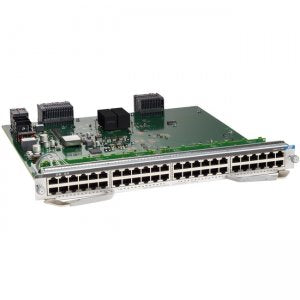

Photo is for illustration purposes only. Actual product may be different.
$6,048.84
$6,048.84
Sale Sold out
MSRP: $8,871.64
Shipping calculated at checkout.
  • 48 RJ-45 ports with POE+ capability
  • Supports 10/100/1000 Mbps data transfer rates
  • Integrated Gigabit Ethernet transport and data link protocols
  • Plug-In Card form factor for Cisco Catalyst 9400 chassis
  • Compliant with TAA standards
  • Manufactured in Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise environments requiring 48-port scalable access with POE+ support.
  • TAA compliance ensures suitability for government and public sector deployments.
  • Plug-in form factor enables cost-effective modular network expansion within existing Catalyst 9400 systems.

Product Overview

The Cisco Catalyst 9400 Series 48-Port POE+ Line Card (C9400-LC-48P++=) is a plug-in module designed for expansion within the Catalyst 9400 chassis. It supports 48 RJ-45 ports delivering Gigabit Ethernet speeds (10/100/1000 Mbps) and POE+ power capabilities. Ideal for enterprise access networks, this TAA-compliant unit supports critical infrastructure devices while maintaining consistent high-speed performance. Manufactured in Mexico, it meets regional compliance standards and is optimized for scalable network environments.

Specifications

Product Overview
Type Line Card
Form Factor Plug-In Module
Chassis Compatibility Cisco Catalyst 9400 Series
Power over Ethernet (PoE) PoE+
Maximum PoE Power Budget per Port 30W
Aggregate Power Budget (Card Level) 1800W (with Dual 90W Redundant Power Supplies)
Hardware Redundancy Supported via Dual Supervisors in Catalyst 9400 Chassis
Weight 3.56 kg (7.84 lbs)
Power Requirements Supplied through Catalyst 9400 Chassis Power Modules

Wireless Features
Wireless Support No

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
Certifications UL, CSA, CE, FCC Part 15 Class A
ENERGY STAR Certified Yes

Advanced Security Features
MACsec Encryption 128-bit and 256-bit
Access Control Lists (ACLs) Yes
Secure Boot and Runtime Defenses Yes
Trustworthy Solutions Yes (Cisco Trust Anchor, Secure Boot, Run-time defenses)
Device Authentication IEEE 802.1X, MAB, WebAuth

Interfaces
Total Ports 48
Port Type 10/100/1000 Mbps RJ-45
Data Transfer Rate per Port 1 Gbps
Interface Medium Copper
Backplane Bandwidth 480 Gbps per Slot
Non-Blocking Architecture Yes
Forwarding Bandwidth 240 Gbps per Slot
Switching Capacity Up to 480 Gbps Full Duplex

Physical & Environmental
Dimensions (H x W x D) 1.73 x 14.4 x 16.6 in (4.39 x 36.57 x 42.16 cm)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 95% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
MTBF 368,130 hours

Cloud Management & Licensing
Management Interface Cisco IOS XE via Catalyst 9400 Supervisor
Supported Software Cisco DNA Center, Cisco SD-Access
License Requirement Cisco DNA Licensing (Essentials, Advantage, or Premier)
Cloud-Managed Capable Yes (via DNA Center)
