CISCO IBM SAN96C-7 64G 96-Port FC Switch, 96 Active Ports

VENDOR: CISCO Mfg Part#: 00NR250
1 2

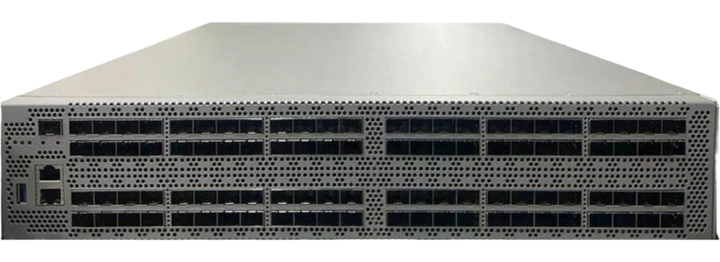

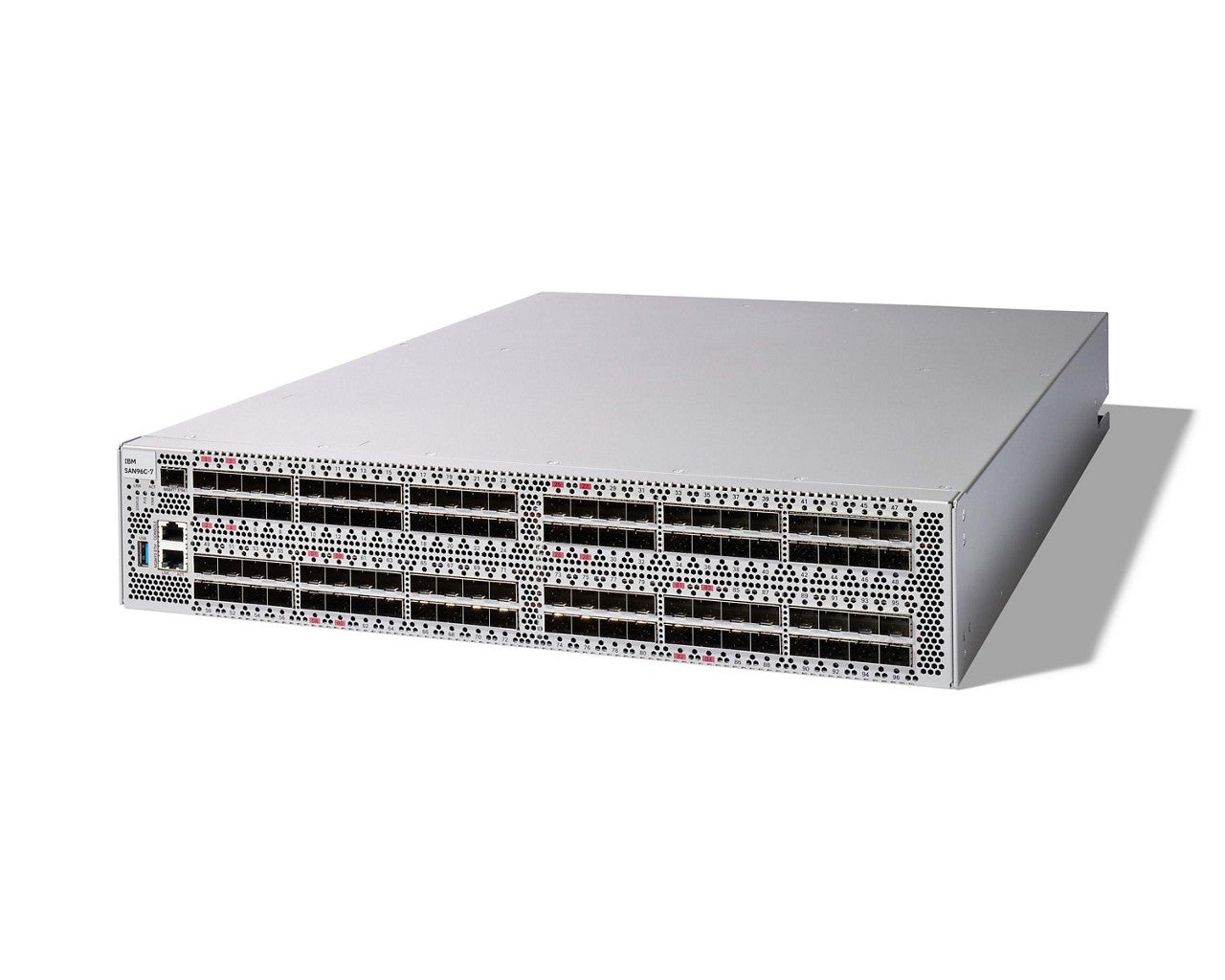

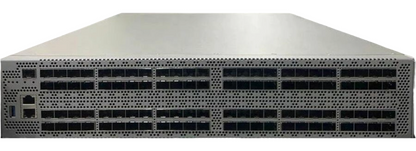

Photo is for illustration purposes only. Actual product may be different.
$125,257.93
$125,257.93
Sale Sold out
MSRP: $378,007.47
Shipping calculated at checkout.
  • 96 active Fibre Channel ports with 64 Gbps transfer rate
  • 2RU rack-mountable form factor for space efficiency
  • Gigabit Ethernet data link protocol support
  • VSAN capability enables better storage network optimization
  • TAA compliant; manufactured in Mexico
  • Compact design at 17.4" W x 23.9" D x 3.4" H; weighs 20 Kg

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-high data throughput of 64 Gbps per port, ideal for demanding SAN environments.
  • VSAN support improves storage resource utilization and scalability within enterprise networks.
  • TAA compliance ensures suitability for government and regulated industry procurement.

Product Overview

The CISCO IBM SAN96C-7 64G96-Port FC Switch is designed for enterprise-level SAN environments requiring high-speed, high-density connectivity. Featuring 96 active 64 Gbps Fibre Channel ports and support for VSAN, this switch excels in storage network optimization. With a compact 2RU form factor and compliance to TAA standards, it combines efficiency and compliance. Its form factor and port configuration support seamless integration into high-demand data centers.

Specifications

Product Overview
Manufacturer CISCO
Product Name IBM SAN96C-7 64G96-Port FC Switch
Manufacturer Part Number 00NR250
Model SAN96C-7
Type Fibre Channel Switch
Form Factor 2RU
Weight 20 Kg
Power Requirements 100 to 240 VAC, 50 to 60 Hz
Power Supply Redundancy Yes, dual redundant hot-swappable power supplies
Typical Power Consumption Up to 850W

Wireless Features

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
Certifications UL, CSA, CE Mark, FCC Part 15 Class A, ICES-003

Advanced Security Features
Access Control Role-based access control (RBAC)
Authentication Methods RADIUS, TACACS+
Data Encryption Fibre Channel link encryption (per port)
Secure Management SSH, SNMPv3, HTTPS
Port Security Yes

Interfaces
Total Ports 96
Port Type Fibre Channel (SFP+)
Port Speed 64 Gbps per port
Data Transfer Rate 64 Gbps
Port Expansion Module Slots Yes, modular line cards
Backplane Bandwidth 6 Tbps
VSAN Support Yes
Buffer Credits Up to 8000

Physical & Environmental
Width 17.4 Inch
Depth 23.9 Inch
Height 3.4 Inch
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 10% to 85%, non-condensing
Storage Humidity 5% to 93%, non-condensing
Cooling Hot-swappable fan trays with front-to-back or back-to-front airflow
Rack Mountable Yes

Cloud Management & Licensing
Management Interface Cisco NX-OS CLI, Cisco Prime Data Center Network Manager (DCNM)
Supported Protocols SNMPv3, SSH, SFTP, Telnet, HTTP, HTTPS
Licensing Model Base and optional enhanced licenses
Included Features Basic management, zoning, VSAN, advanced diagnostics
Telemetry Support Yes, streaming telemetry
