Cisco IW9167 11ax 6E AP, 8 RF Ports, URWB, B Domain

VENDOR: CISCO Mfg Part#: IW9167EH-B-URWB++
1 3
Photo is for illustration purposes only. Actual product may be different.
$2,497.65
$2,497.65
Sale Sold out
MSRP: $3,663.23
Shipping calculated at checkout.
  • Supports Wi-Fi 6E (IEEE 802.11a/b/g/n/ac/ax) for advanced wireless connectivity
  • Tri-radio architecture across 2.4 GHz, 5 GHz, and 6 GHz bands
  • 4x4 MIMO support for robust signal performance and coverage
  • Includes both PoE+ RJ-45 and 10G copper SFP multigigabit Ethernet ports
  • 8 RF ports with N-Type and TNC antenna connectors
  • Built-in 1024 MB flash memory and 2048 MB RAM for application support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Optimized for outdoor industrial environments with rugged construction and versatile power input (24–48 VDC)
  • Future-ready with container support for edge applications in evolving deployments
  • Delivers high-throughput wireless performance with 10 Gbps data rate and tri-radio flexibility

Product Overview

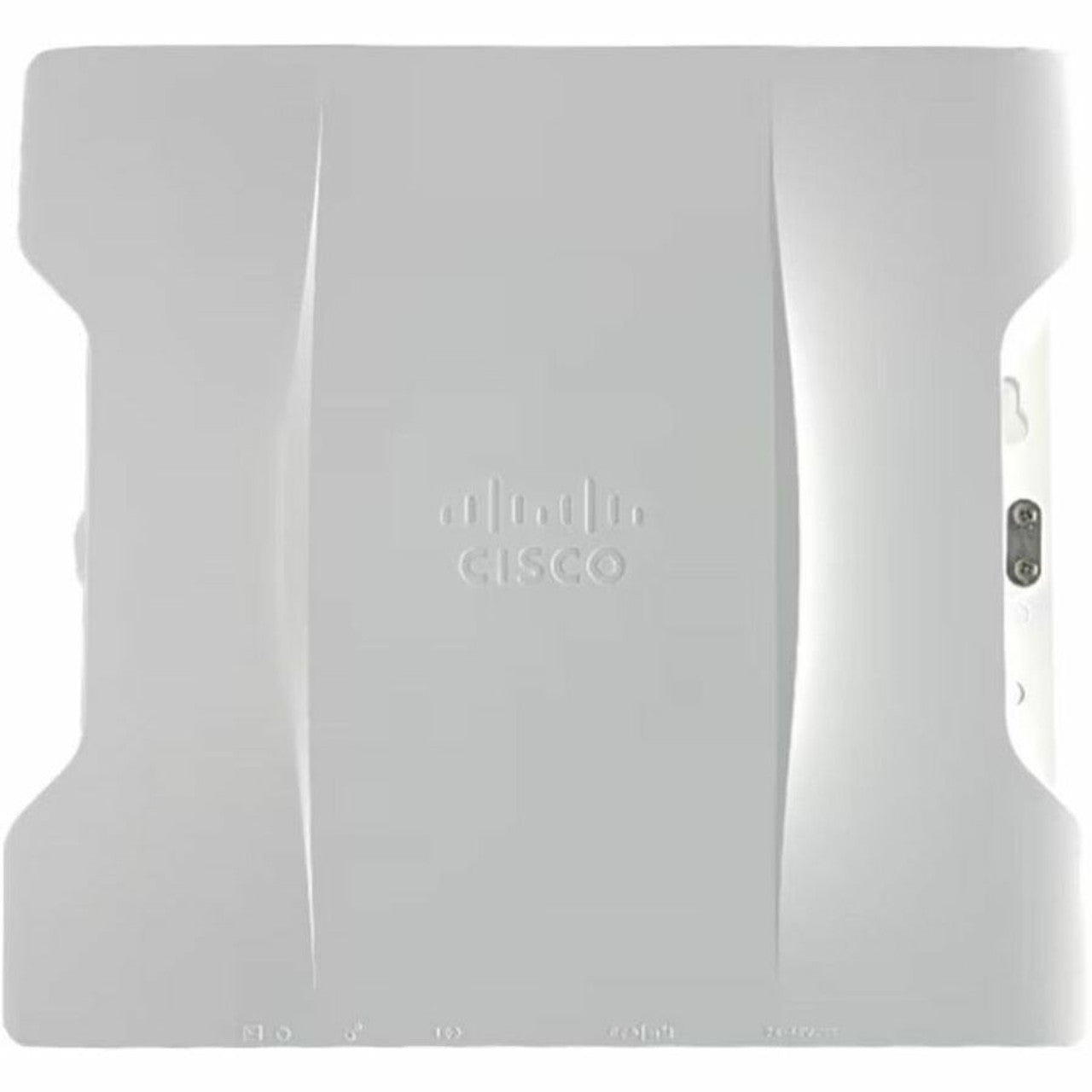

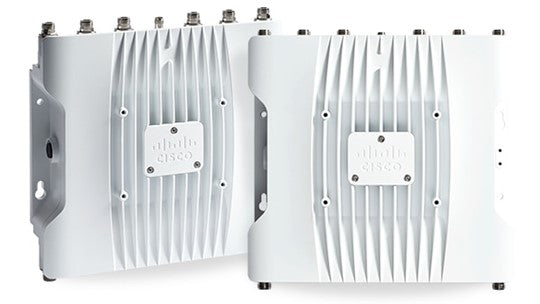

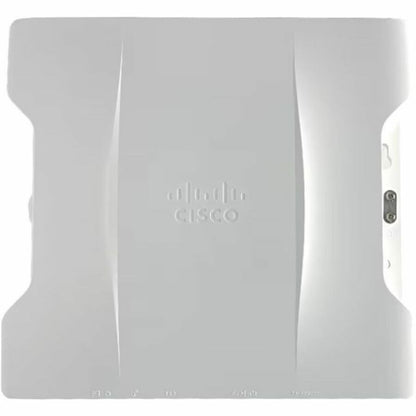

The Cisco IW9167 11ax 6E Access Point delivers tri-radio wireless connectivity across the 2.4GHz, 5GHz, and 6GHz (Wi-Fi 6E) frequency bands. Featuring 4x4 MIMO, this rugged outdoor AP supports IEEE 802.11a/b/g/n/ac/ax standards and delivers 10 Gbps data rates for high-performance industrial deployment. It comes with 1x 100M/1000M/2.5G/5G RJ-45 PoE+ and 1x 10G copper SFP ports, offering flexible multigigabit Ethernet connectivity. With 8 RF ports and support for container-based applications, the IW9167 is ideal for remote, secure, and scalable wireless networking.

Specifications

Product Overview
Product Type Access Point
Model IW9167EH
Form Factor Outdoor, ruggedized
Environment Outdoor
Weight 5.2 lbs (2.36 kg)
Power / Device Type Power Supply (PoE+ or DC input)
Power / Voltage Required 24-48 VDC
Hard Drive 1024 MB flash
RAM / Total Installed Size 2048 MB

Wireless Features
Wi-Fi Standard IEEE 802.11a/b/g/n/ac/ax
Supported Frequency Bands 2.4 GHz, 5 GHz, 6 GHz (Wi-Fi 6E)
MIMO Configuration 4x4 MIMO per radio
Number of Radios 3 (Tri-radio)
Antenna Type External, via RF connectors
Antenna Connectors N-Type and TNC
Modulation OFDMA, MU-MIMO
Max Spatial Streams 4 per radio

Compliance & Origin
Country of Origin UNITED STATES
TAA Compliance Yes
Certification Standards UL 60950-1, UL 62368-1, IEC 60950-1, IEC 62368-1, FCC Part 15C/E

Advanced Security Features
Wireless Security WPA3, WPA2-Enterprise, 802.1X
Secure Boot Yes
Content Filtering Yes, via Cisco Umbrella (license required)
Malware Protection Yes, with Cisco Secure Network Analytics integration
MAC Address Filtering Yes

Interfaces
Ethernet Ports 1x 100M/1G/2.5G/5G RJ-45 (PoE+)
SFP Port 1x 10G copper SFP
Antenna Interfaces 8x N-Type or TNC RF connectors (external)
Interface Type RJ-45, SFP
Port Speeds 100M/1G/2.5G/5G/10G
Data Transfer Rate Up to 10 Gbps aggregated
Networking Type Ethernet
Transport Protocol Gigabit Ethernet

Physical & Environmental
Width 11.5 inches (292 mm)
Depth 10.5 inches (267 mm)
Height 2.8 inches (71 mm)
Operating Temperature Range -40°C to 65°C (-40°F to 149°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 95% (non-condensing)
Ingress Protection Rating IP67
Enclosure Material Die-cast aluminum

Cloud Management & Licensing
Management Interface Cisco DNA Center, CLI, Web UI, SNMP
Cloud Managed Yes, via Cisco DNA Center
Software Features Container support, Location tracking, Analytics
Licensing Model Cisco DNA and Network Essentials/Advantage licenses
