CISCO NCS-5501-SE 40x10G & 4x100G Router Chassis

VENDOR: CISCO Mfg Part#: NCS-5501-SE=
1 3

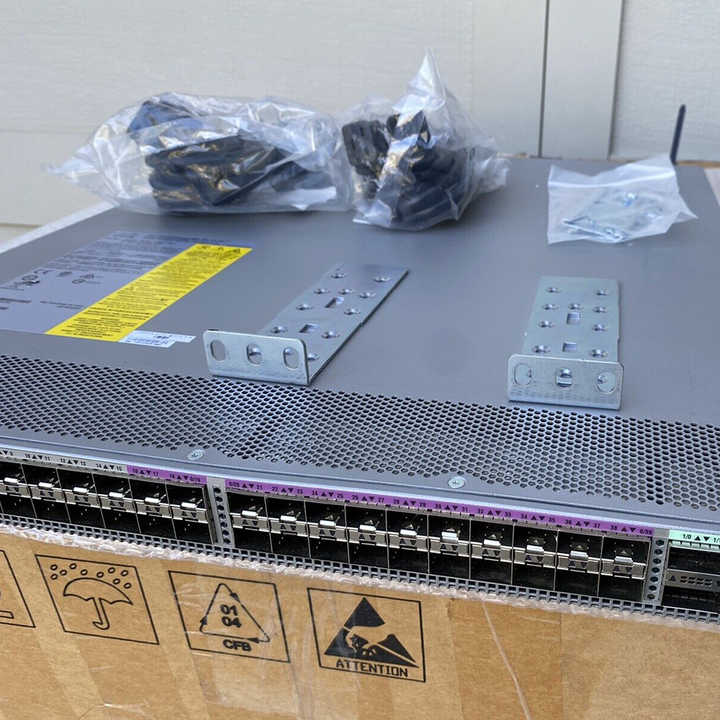

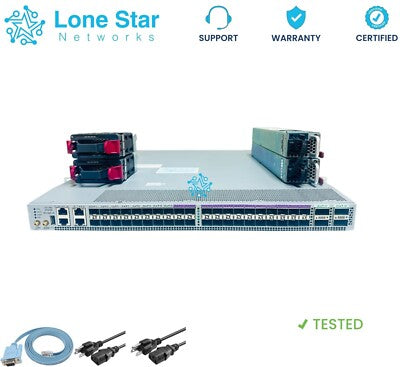

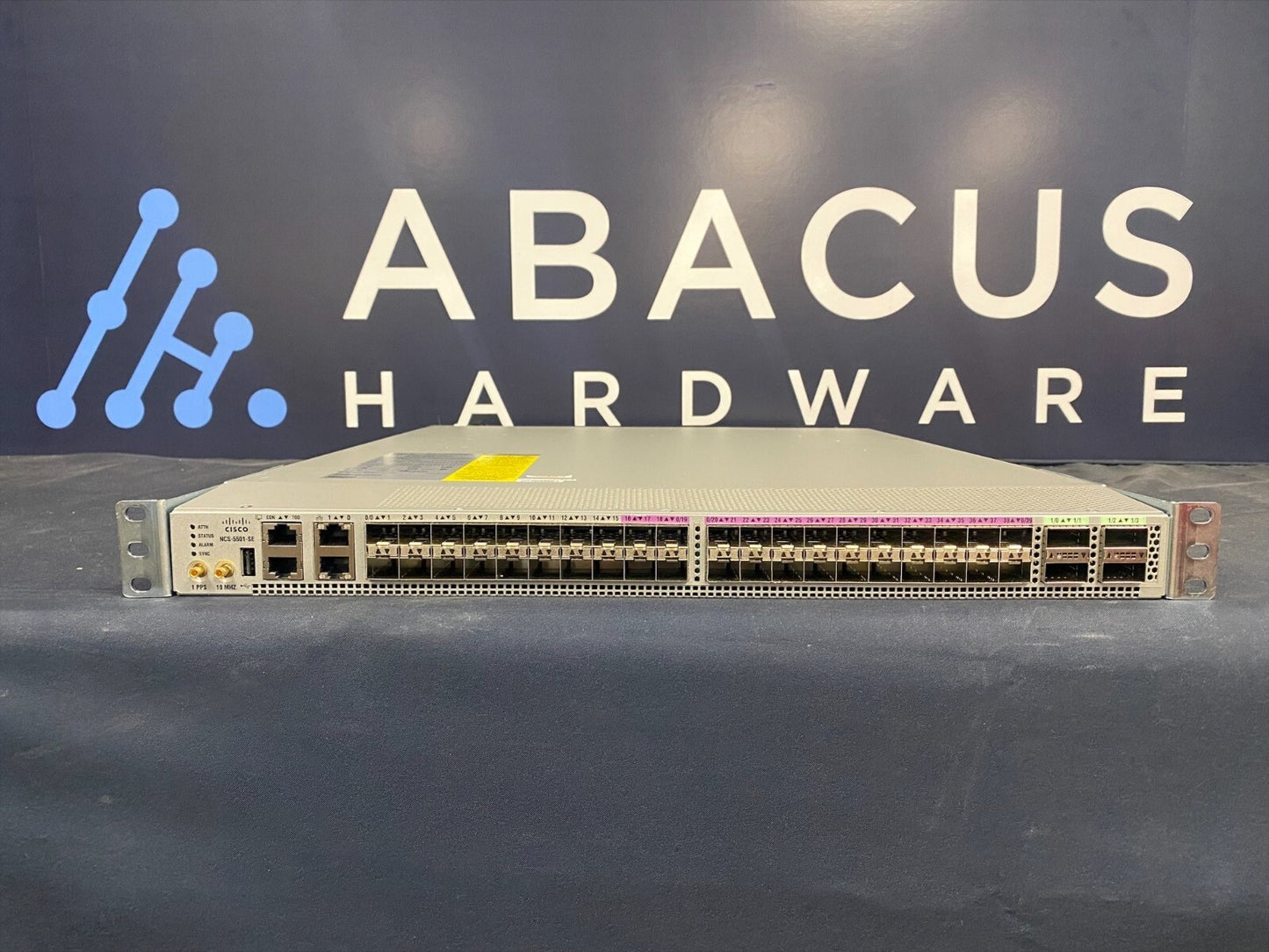

Photo is for illustration purposes only. Actual product may be different.
$125,526.03
$125,526.03
Sale Sold out
MSRP: $184,104.84
Shipping calculated at checkout.
  • 1RU form factor with 40x10G and 4x100G Ethernet ports
  • Supports BGP, OSPFv2, and ISIS routing protocols
  • Delivers 100Gbps total wired throughput
  • Operates with a 2GHz processor
  • Power consumption rated at 260W
  • TAA compliant and backed by a 1-year limited hardware warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Combines 44 high-speed ports into a single 1RU device for space-efficient scalability.
  • Supports multiple standardized routing protocols for flexible network architecture integration.
  • Low operational power usage (260W) delivers energy efficiency for large-scale deployments.

Product Overview

The CISCO NCS-5501-SE is a high-density router in a compact 1RU chassis, supporting 40x10G and 4x100G Ethernet ports for scalable deployments. It integrates major routing protocols like BGP, OSPFv2, and ISIS, with a 100Gbps throughput powered by a 2GHz processor. With a power footprint of 260W, TAA compliance, and a 1-year hardware warranty, it is ideal for mission-critical and regulated environments.

Specifications

Product Overview
Product Type Service Provider Edge Router
Model NCS-5501-SE
Form Factor 1U Rack-mountable
Series Cisco Network Convergence System (NCS) 5500 Series
Processor 2 GHz Network Processor
Throughput Capacity 100 Gbps
Power Consumption 260 W
Hot-Swappable Components Yes
Redundant Power Supplies Yes
Operating System Cisco IOS XR
Warranty 1-Year Limited Hardware Warranty

Physical & Environmental
Chassis Dimensions (W x D x H) 17.3 x 18.3 x 1.72 in (439 x 465 x 43.6 mm)
Weight 16.5 lbs (7.5 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Relative Humidity (Operating) 5% to 85% non-condensing
Relative Humidity (Storage) 5% to 95% non-condensing
Rack Units 1U

Cloud Management & Licensing
Software Licensing Smart Licensing Enabled
Management Interface CLI, SNMP, NETCONF, YANG
Telemetry Support Yes, Model-driven Telemetry
Zero Touch Provisioning (ZTP) Supported
Supported Management Platforms Cisco Crosswork, Cisco Network Services Orchestrator (NSO)

Interfaces
10 Gigabit Ethernet Ports 40 x 10GE (SFP+)
100 Gigabit Ethernet Ports 4 x 100GE (QSFP28)
Management Ports 1 x RJ-45 Console, 1 x Micro USB Console, 1 x Management Ethernet
Interface Type SFP+, QSFP28
Data Transfer Rate (SFP+) 10 Gbps
Data Transfer Rate (QSFP28) 100 Gbps
Backplane Capacity 800 Gbps

Compliance & Origin
Country of Origin CHINA / UNITED STATES
TAA Compliance Yes
Certifications RoHS, NEBS Level 3, EPEAT Bronze
Emission Standards FCC Part 15 Class A, EN55032 Class A
Safety Compliance UL/CSA 60950-1, IEC/EN 60950-1

Advanced Security Features
Access Control Lists (ACLs) Yes
Control Plane Protection Supported
Secure Boot and Image Signing Yes
MACsec Encryption Supported on 100GE ports
Routing Protocol Security MD5/SHA Authentication for BGP, OSPF, ISIS
