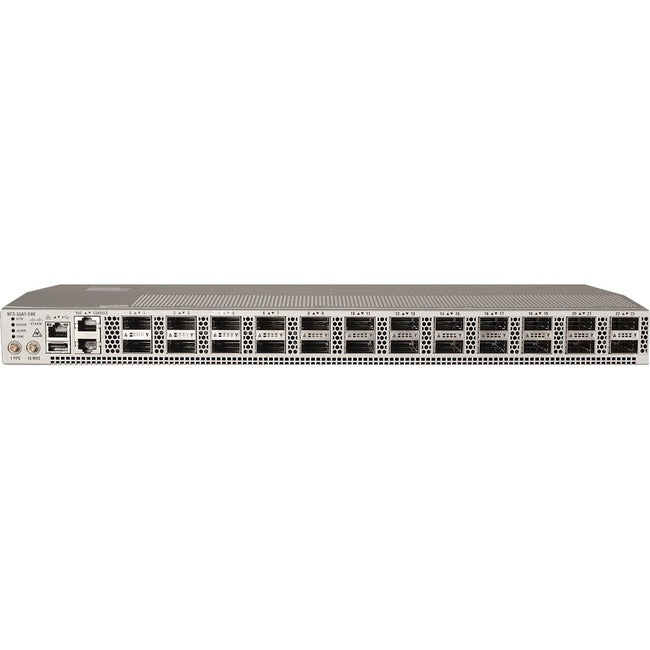

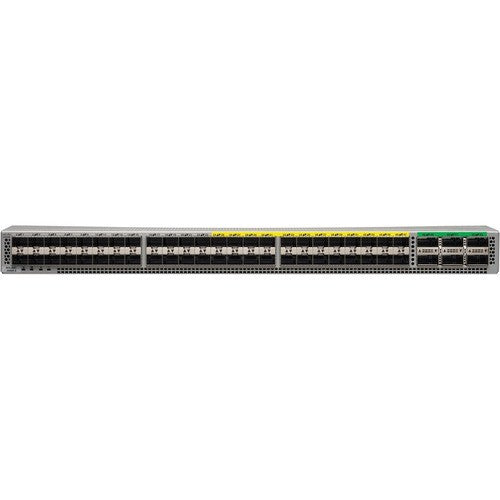

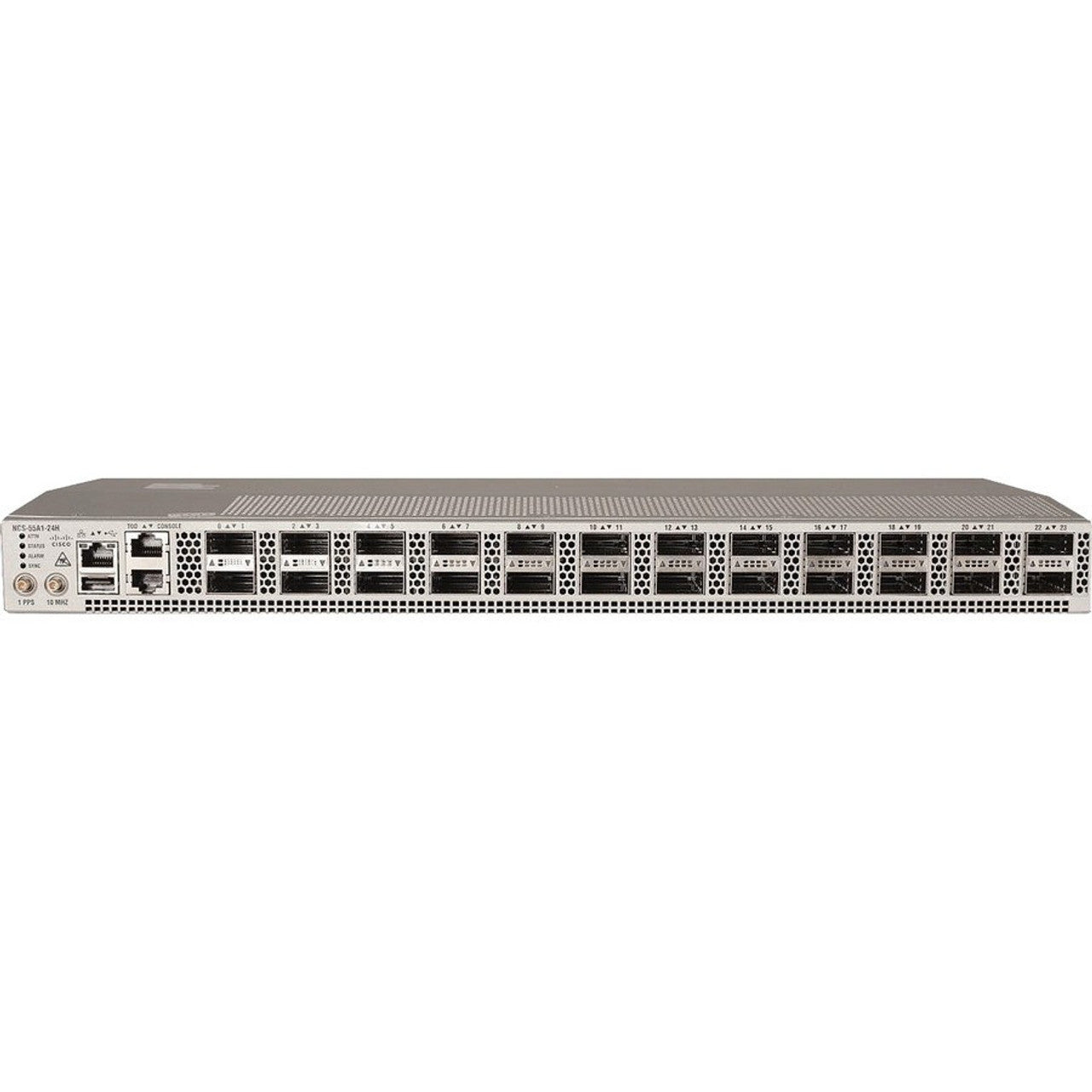

Cisco NCS55A1 24x1/10G 24x10/25G 6x100G Data Center Router

VENDOR: CISCO Mfg Part#: NCS-55A1-24Q-DTCR
1 3
Photo is for illustration purposes only. Actual product may be different.
$32,993.70
$32,993.70
Sale Sold out
MSRP: $48,390.75
Shipping calculated at checkout.
  • Fixed-configuration router with 24x1/10G, 24x10/25G, and 6x100G interfaces
  • Supports data transfer rates up to 100 Gbps over Gigabit Ethernet
  • Advanced routing protocols: static, OSPFv2/v3, ISIS/ISISv6, and BGP
  • Remote management via SNMP, SSH, IPv4, and IPv6
  • TACACS+ authentication method for secure access control
  • TAA compliant; manufactured in China and the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports high-capacity data throughput with versatile port combinations for scalable data center deployment
  • Enhanced network control with comprehensive routing and management protocol support
  • Meets TAA compliance, making it suitable for government and regulated industry use

Product Overview

The Cisco NCS55A1 is a high-performance fixed router featuring 24x1/10G, 24x10/25G, and 6x100G ports—ideal for data-intensive environments. It supports Gigabit Ethernet protocols and delivers speeds of up to 100 Gbps, making it well-suited for data centers and service providers. With support for advanced routing protocols like BGP, OSPFv2/v3, and ISIS, it enables flexible and efficient routing. Remote management is streamlined with SNMP, SSH, and both IPv4 and IPv6 compatibility. The router is TAA-compliant and supports secure access through TACACS+, meeting requirements for enterprise and governmental networks.

Specifications

Product Overview
Product Type Fixed Router
Model NCS55A1
Manufacturer Part Number NCS-55A1-24Q-DTCR
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Switching Protocol Gigabit Ethernet
Data Transfer Rate 100 Gbps
TAA Compliance Yes
Network Device Type Router
Form Factor 1 RU rack-mountable
Power Requirements AC or DC, redundant power supplies supported
Redundancy Redundant power supplies (1+1), fan trays (2+1)
Power Consumption (Typical) Approximately 250W
Software Cisco IOS XR

Cloud Management & Licensing
Operating System Cisco IOS XR
Remote Management Protocols SNMP, SSH, IPv4, IPv6
Management Interface CLI, SNMP, NETCONF supported
Licensing Model Cisco Smart Licensing
Cloud-based Management Support Supported through Cisco Crosswork Network Services Orchestrator (NSO)

Physical & Environmental
Dimensions (W x D x H) 17.5 x 18 x 1.72 inches (445 x 457 x 43.6 mm)
Weight Approximately 15 lbs (6.8 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Operating Humidity 5% to 85% non-condensing
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Storage Humidity 5% to 95% non-condensing

Interfaces
Total Ports 54
1/10 Gigabit Ethernet Ports 24
10/25 Gigabit Ethernet Ports 24
100 Gigabit Ethernet Ports 6
Port Speeds 1G, 10G, 25G, 100G
Physical Interfaces QSFP28 and SFP+ slots
Expansion Slots None; fixed configuration
Console Ports 1 x RJ-45
Management Ports 1 x 10/100/1000 Mbps RJ45, 1 x USB 2.0

Advanced Security Features
Authentication Method TACACS+
Secure Management SSH, SNMPv3
Access Control ACLs, Role-Based Access Control (RBAC)
Routing Protocols Static, OSPFv2, OSPFv3, IS-IS, IS-ISv6, BGP
IPv6 Support Yes

Compliance & Origin
Country of Origin China / United States
Certifications RoHS, WEEE, NEBS Level 3
Compliances CE Mark, FCC Part 15 (Class A), TUV/UL/CSA
