CISCO NCS57B1 Fixed Base 6x400G 24x100G QSFP-DD Chassis Router

VENDOR: CISCO Mfg Part#: NCS-57B1-6D24H-S
1 3

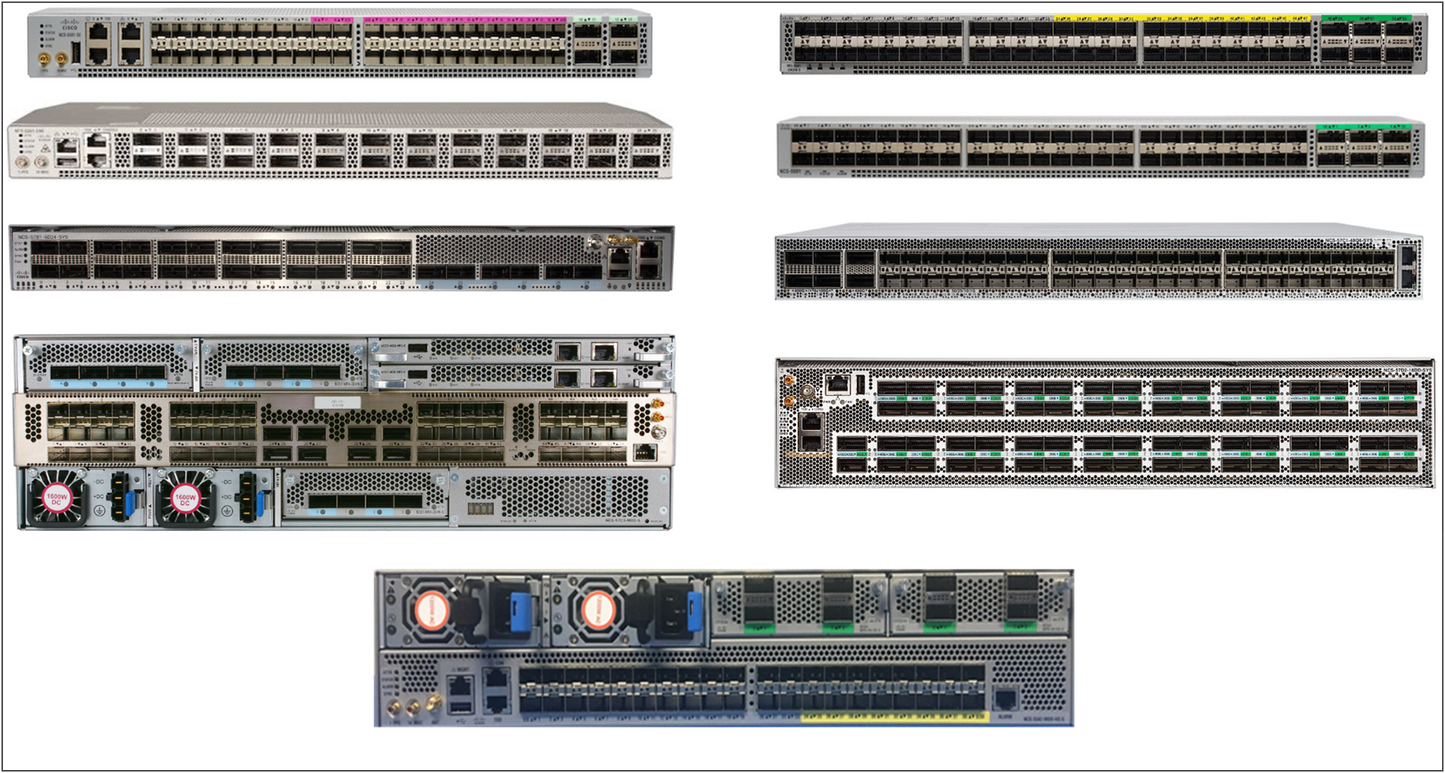

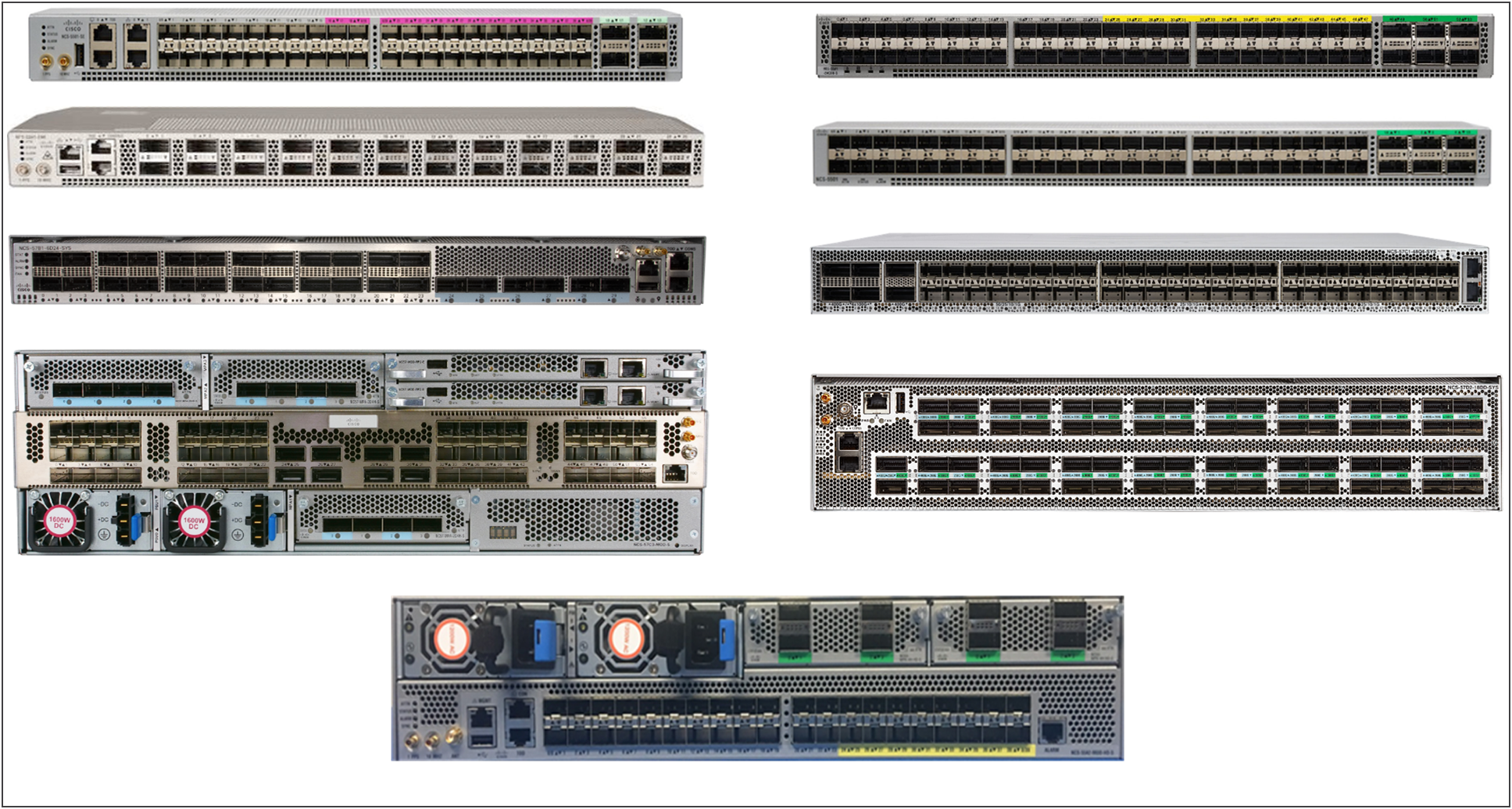

Photo is for illustration purposes only. Actual product may be different.
$178,165.94
$178,165.94
Sale Sold out
MSRP: $261,310.05
Shipping calculated at checkout.
  • Supports 6 x 400GbE and 24 x 100GbE QSFP-DD ports for high-density connectivity
  • Throughput capacity of 4.8 Tbps with support for up to 2.7M FIB entries
  • Remote management via SNMP, SSH, NETCONF, TACACS+, JSON, XML, and more
  • Advanced routing protocol support including BGP, IS-IS, OSPFv2/v3, MPLS, and SR-TE
  • Security features include MACsec encryption and AAA/TACACS+ authentication
  • Compact 1U form factor with hot-swappable redundant fans and 500W power supply

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Handles ultra-high bandwidth demands with 4.8 Tbps throughput, ideal for scaling core networks
  • Robust protocol and remote management support ensure flexibility and seamless integration into existing architectures
  • MACsec encryption and comprehensive standards compliance reinforce security and operational trust

Product Overview

The CISCO NCS57B1 Fixed Base HW router is an ultra-dense, high-throughput solution designed for data center and carrier-grade environments. Housed in a 1U rack-mountable chassis, it provides 6x 400G and 24x 100G ports via QSFP-DD and supports up to 4.8 Tbps throughput. With a powerful 8-core x86 processor, 32 GB RAM, and versatile routing protocol support, it's engineered for scalability and performance. Key features include MACsec encryption, hot-swappable fans, and advanced remote management capabilities. The device is also standards-compliant and backed by a 1-year hardware warranty, making it a reliable choice for critical network infrastructure deployments.

Specifications

Product Overview
Product Type Router
Model NCS57B1 Fixed Base 6x400G 24x100G QSFP-DD
Form Factor 1U rack-mountable
Processor 8-core x86 processor
RAM 32 GB
Storage Capacity 128 GB
Throughput 4.8 Tbps
Route Scale Up to 2.7M FIB entries
QoS Queues 8
Jumbo Frame Support 9216 bytes
Power Supply Type Internal power supply - hot-plug
Power Redundancy Optional
Installed Power Supply Quantity 2 (max)
Operational Power Consumption 500 Watt
MTBF (Mean Time Between Failures) 134,790 hours
Status Indicators Status
Warranty 1-year hardware warranty

Physical & Environmental
Width 17.3 in
Depth 23.6 in
Height 1.7 in
Weight 29.06 lbs
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Operating Humidity 5 - 95% (non-condensing)
Cooling System Hot-swappable 5+1 fan modules

Cloud Management & Licensing
Remote Management Protocols SNMP, SNMPv3, SSH, NETCONF, OAM, JSON, YANG, TACACS+, GPB, XML
Authentication Methods SSH, TACACS+
ZTP (Zero Touch Provisioning) Supported
Management Interface Web, CLI, SNMP, NETCONF/YANG

Interfaces
Total QSFP-DD Ports 30
400GbE Ports 6 x QSFP-DD
100GbE Ports 24 x QSFP-DD
Management Port 1 x RJ-45
Console Port 1 x RJ-45
USB Port 1 x USB
Connectivity Technology Wired
Supported Data Link Protocols 10GbE, 25GbE, 40GbE, 100GbE, 400GbE

Compliance & Origin
Country of Origin China / United States
TAA Compliant Yes
Certifications UL 60950-1, UL 62368-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, EN62368-1, IEC 60950-1, IEC 62368-1, FCC Part 15 A, CISPR 22 Class A, CISPR 24, EN 55022 Class A, VCCI Class A, ICES-003 Class A, EN 300 386, EN 55024, AS/NZS CISPR22 Class A, CNS 13438 Class A
EMC Standards EN55024, EN61000-3-2, EN61000-3-3, KN22 Class A, KN 61000-4, GR-1089-CORE, GR-63-CORE
Environmental Compliance RoHS 6/6

Advanced Security Features
Encryption Support MACsec
Access Control List (ACL) Supported
AAA Support Yes
Secure Management SSH, SNMPv3, TACACS+
