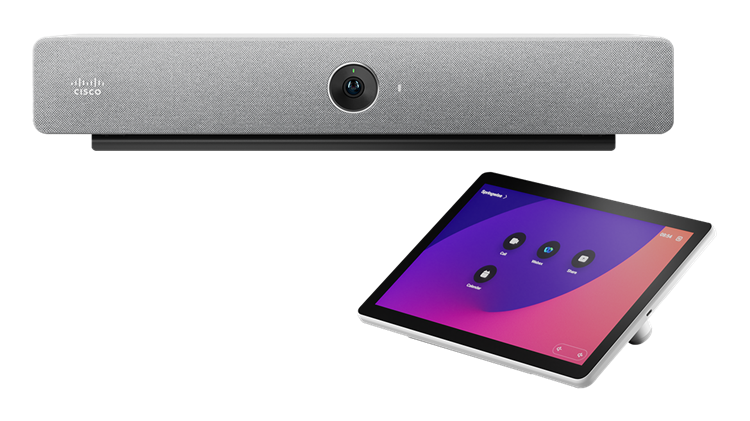

Cisco Webex Room Bar with Navigator NO RADIO - TAA

VENDOR: CISCO Mfg Part#: CS-BAR-NR-K9++ UPC#: 889728455398
  • Cisco Webex Room Bar with Navigator NO RADIO - TAA
1 1
Photo is for illustration purposes only. Actual product may be different.
$4,858.26
$4,858.26
Sale Sold out
MSRP: $7,125.45
Shipping calculated at checkout.
  • Includes integrated speaker for standalone audio capability
  • Measures 21" (W) x 2.5" (D) x 3.2" (H) for compact installation
  • Navigator touch panel mounted on table stand for control
  • TAA compliant for government-regulated environments
  • Manufactured in Mexico to meet supply chain regulatory requirements
  • 90-day limited liability warranty included

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for secure environments with its TAA-compliant design and no radio components
  • Compact size and integrated Navigator make it a convenient, all-in-one conferencing solution
  • Backed by Cisco's 90-day support for low-risk trials or limited deployments

Product Overview

The Cisco Webex Room Bar with Navigator NO RADIO - TAA is a professional video conferencing solution designed for secure communication environments. It features a table-mounted touch panel Navigator, TAA compliance, and is manufactured in Mexico, making it suitable for regulated sectors such as government and infrastructure. With dimensions of 21 x 2.5 x 3.2 inches, it provides a compact yet capable footprint. Built-in speaker functionality supports conferencing without the need for additional peripherals. Note: radio functionality is excluded, and detailed audio-video performance specifications are not provided.

Specifications

Product Overview
Product Type Video Conferencing Bar
Form Factor All-in-One Bar with Touch Controller
Weight Approx. 3.5 kg (7.7 lbs)
Power Requirements 100–240V AC, 50/60 Hz
Speaker System Type Speaker

Wireless Features
Wi-Fi
Bluetooth
Wireless Standards

Compliance & Origin
TAA Compliance Yes
Country of Origin Mexico
Certifications FCC Part 15B Class A, CE Mark, UL Listed
RoHS Compliance Yes

Advanced Security Features
Encryption Media and signaling encryption (SRTP, TLS)
Secure Boot Yes
Secure Firmware Upgrade Yes - digitally signed firmware
Administrator Access Control Role-Based Access Control (RBAC)
Network Security 802.1X, TLS, SRTP, HTTPS, SSH

Warranty & Support
Warranty 90-day limited warranty
Technical Support Cisco TAC (with active support agreement)

Interfaces
HDMI Input Ports 1 x HDMI 1.4
HDMI Output Ports 1 x HDMI 1.4 for display
USB Ports 2 x USB-C (1 x debug, 1 x camera input)
Ethernet Ports 1 x RJ-45, 10/100/1000BASE-T
Audio Input 1 x USB-C for microphone input
Audio Output Built-in speaker; supports HDMI audio out
Camera Interface Integrated 12 MP 4K Camera

Physical & Environmental
Width 21 Inch
Depth 2.5 Inch
Height 3.2 Inch
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 10% to 90% (non-condensing)
Mounting Options Wall mount and table stand (included)

Cloud Management & Licensing
Management Interface Cisco Webex Control Hub
Included Licensing Requires separate Cisco Webex licensing
Cloud Connectivity Cisco Webex cloud or on-premise registration
Software Updates Automatic via Webex Control Hub
Touch Controller Cisco Room Navigator (table-mount)

Audio & Video Capabilities
Camera Resolution 12 MP, 4K Ultra HD
Field of View 120° Horizontal FOV
Automatic Framing Speaker and group framing supported
Microphone Type Built-in beamforming microphones
Speaker Output Integrated high-fidelity speakers
