Cisco Wireless 9178I Access Point, 4 Radio, Wi-Fi 6E, UWB, CW9178I-RTG

VENDOR: CISCO Mfg Part#: CW9178I-RTG
  • Cisco Wireless 9178I(W7,4 radio,3 band 4x4,UWB),Global
1 1

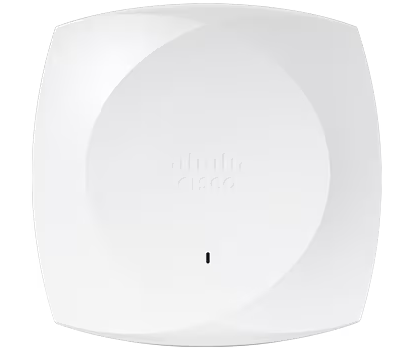

Photo is for illustration purposes only. Actual product may be different.
$1,681.48
$1,681.48
Sale Sold out
MSRP: $3,009.98
Shipping calculated at checkout.
  • Quad-radio access point supporting 2.4 GHz, 5 GHz, and 6 GHz bands
  • Compliant with 802.11 a/b/g/n/ac/ax and 802.11be (Wi-Fi 6E)
  • 4x4 MU-MIMO for optimized multiple client performance
  • Integrated Ultra-Wideband (UWB) radio and Bluetooth support
  • Supports data transfer rates up to 10 Gbps
  • Includes 4 GB DRAM and 16 GB flash storage

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports the latest Wi-Fi 6E (802.11ax) and legacy standards for wide device compatibility
  • Integrated Bluetooth and UWB enable location-aware services and future IoT expansion
  • Backed by a limited lifetime warranty, providing strong value and peace of mind for enterprise deployments

Product Overview

The Cisco Wireless 9178I Access Point (model CW9178I-RTG) delivers quad-radio, tri-band coverage across the 2.4 GHz, 5 GHz, and 6 GHz spectrums and supports Wi-Fi 6E alongside legacy protocols. Built for enterprise-grade networking, this indoor AP handles 10 Gbps throughput with 4x4 MU-MIMO, ideal for high-density environments. It features Bluetooth and an integrated UWB radio for advanced location services. The robust hardware includes 4 network ports, 4 GB RAM, and 16 GB flash storage, supporting centralized management and future firmware upgrades. With compliance to PoE standards (802.3af/at/bt) and a limited lifetime warranty, it provides operational efficiency and long-term ROI.

Specifications

Product Overview
Product Type Access Point
Model CW9178I
Environment Indoor
Form Factor Ceiling-mountable
Power Requirements IEEE 802.3af/at/bt PoE
RAM 4 GB
Flash Storage 16 GB
MIMO Type 4x4 MU-MIMO
Radio Count Quad
Frequency Band 2.4 GHz; 5 GHz; 6 GHz
Antenna Type Internal antennas
Maximum Data Rate 10 Gbps

Wireless Features
Wi-Fi Standard 802.11a/b/g/n/ac/ax, Wi-Fi 6E ready
Tri-Band Coverage 2.4 GHz, 5 GHz, 6 GHz
Ultra Wideband (UWB) Integrated
Bluetooth Version Bluetooth Low Energy 5.1
OFDMA Yes
Target Wake Time (TWT) Yes
Spatial Streams 4

Compliance & Origin
Country of Origin
TAA Compliance
Certifications UL, FCC, IC, ETSI, CE, RoHS
Warranty Limited Lifetime Warranty

Advanced Security Features
Wireless Security Protocols WPA3, WPA2, WPA
Radio Resource Management (RRM) Yes
Rogue Access Point Detection Yes
Secure Boot Yes
MAC Filtering Yes
802.1X Authentication Supported

Interfaces
Network Ports Quantity 4
Ethernet Interface 1 x 5GbE/2.5GbE/1GbE, 3 x 1GbE
Uplink Port 1 x mGig (5Gbps) Ethernet
PoE Interfaces 1 x 802.3bt/at/af
Management Interface 1 x Console (RJ-45)
Data Link Protocols 802.11a/b/g/n/ac/ax, 802.11be, Ethernet, Bluetooth

Physical & Environmental
Width 9.9 inches
Depth 9.9 inches
Height 2 inches
Weight 2.6 lbs (approx.)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 90% (non-condensing)

Cloud Management & Licensing
Management Platform Cisco Catalyst Center / Cisco Meraki Dashboard (Cloud-managed option)
Licensing Requirements Cisco DNA licensing required for Catalyst Center
Included Cloud Features Centralized management, firmware updates, policy configuration
