| Model | Eaton 93PM |
| Product Type | Uninterruptible Power Supply (UPS) |
| Form Factor | Tower |
| Power Capacity | 50 kW |
| Input Voltage | 480V |
| Input Frequency | 60 Hz |
| Output Voltage | 480V |
| Output Frequency | 60 Hz |
| Output Power Capacity (VA) | 62500 VA |
| Battery Type | Valve-regulated lead-acid (VRLA) |
| Battery Strings Included | 5 |
| Battery Backup Time (full load) | Approximately 5 minutes |
| Battery Recharge Time | ≤ 5 hours to 90% |
| Efficiency (Double Conversion) | Up to 97% |
| Efficiency (Energy Saver System) | Up to 99% |
| Hot Swappable Modules | Yes |
| Redundancy | N+1 compatible |

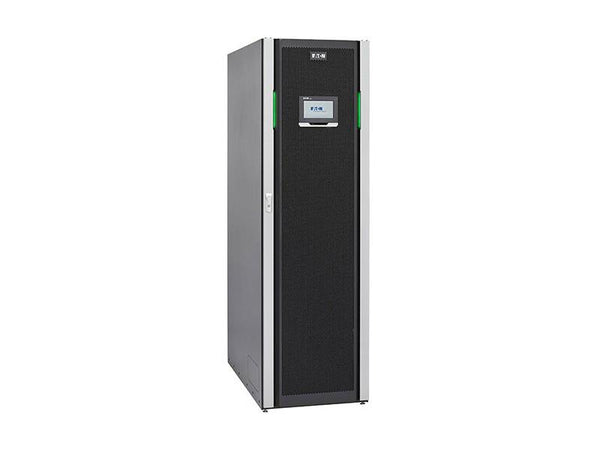

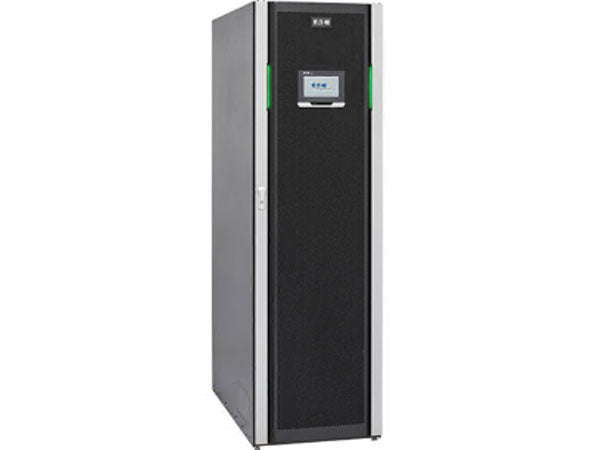

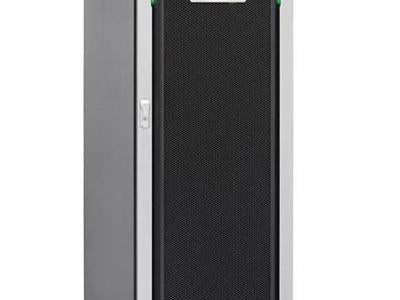

Eaton 93PM 480V 50kW UPS, 5 Battery Strings, PXGXUPS Top Exhaust
Photo is for illustration purposes only. Actual product may be different.
Regular price
$44,263.23
Regular price
Sale price
$44,263.23
Unit price
per
MSRP: $68,572.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 50 kW power output for high-capacity backup requirements
- 480V input voltage supports industrial-grade energy systems
- Tower form factor for flexible deployment in enterprise environments
- Includes five battery strings for extended runtime and redundancy
- Top exhaust configuration (PXGXUPS) for efficient thermal management
- Compliant with RoHS and TAA standards; Made in the United States
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers 50 kW of reliable power to support mission-critical systems in enterprise settings
- Top exhaust design enhances airflow and cooling efficiency in space-constrained environments
- TAA-compliance and U.S. manufacturing support federal procurement and regulatory standards
Product Overview
Eaton 93PM 480v 50kW, 5 strings batt, PXGXUPS top exhausSpecifications
Product Overview
Wireless Features
| Wi-Fi Support |
Compliance & Origin
| Country of Origin | United States |
| TAA Compliant | Yes |
| RoHS Compliant | Yes |
| Certifications | UL 1778, CSA, CE, IEC 62040-1, IEC 62040-2 |
Advanced Security Features
| Role-Based Access Control | Yes |
| Password Protection | Yes |
| Encrypted Management Interface | TLS/SSL secured web access |
| Syslog Event Logging | Yes |
Interfaces
| Communication Interfaces | Ethernet, RS-232, USB, Relay contacts |
| Network Interface | PXGXUPS Gigabit Network Card |
| Monitoring Ports | Yes, via network and serial console |
| Parallel Operation Support | Yes, up to 4 units |
Physical & Environmental
| Dimensions (HxWxD) | 78.7 x 23.6 x 38.6 in (2000 x 600 x 980 mm) |
| Weight | Approximately 1200 kg (with batteries) |
| Cooling Method | Forced air cooling |
| Top Exhaust Included | Yes |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -25°C to 55°C (-13°F to 131°F) |
| Relative Humidity (non-condensing) | 5% – 95% |
| Audible Noise at 1m | Less than 72 dBA |
| Altitude (operating) | Up to 1000m without derating |
Cloud Management & Licensing
| Remote Management | Yes (via PXGXUPS network card) |
| Web Interface Access | Yes |
| SNMP Support | Yes |
| Included Software | Intelligent Power Manager (IPM) |
| Cloud Monitoring Integration | Yes, via Eaton IPM or VCOM |
