Fortinet FAP-433G Tri-Radio Wi-Fi 6E Access Point

VENDOR: FORTINET Mfg Part#: FAP-433G-E
1 3

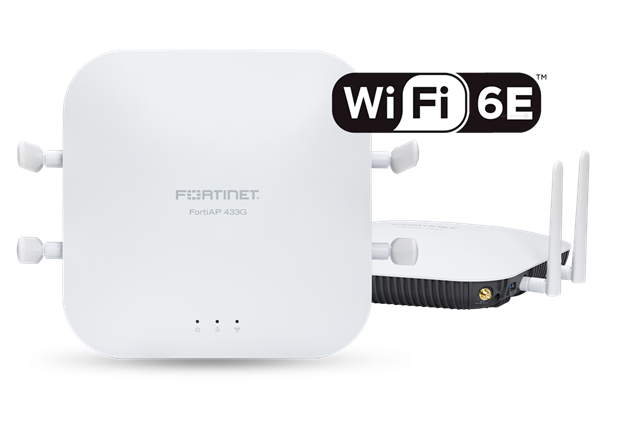

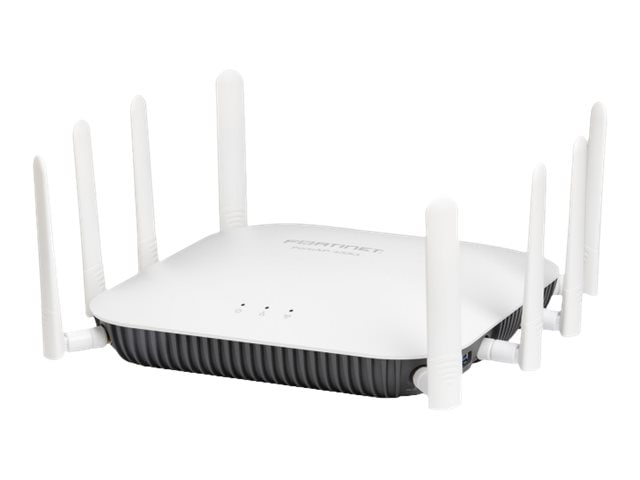

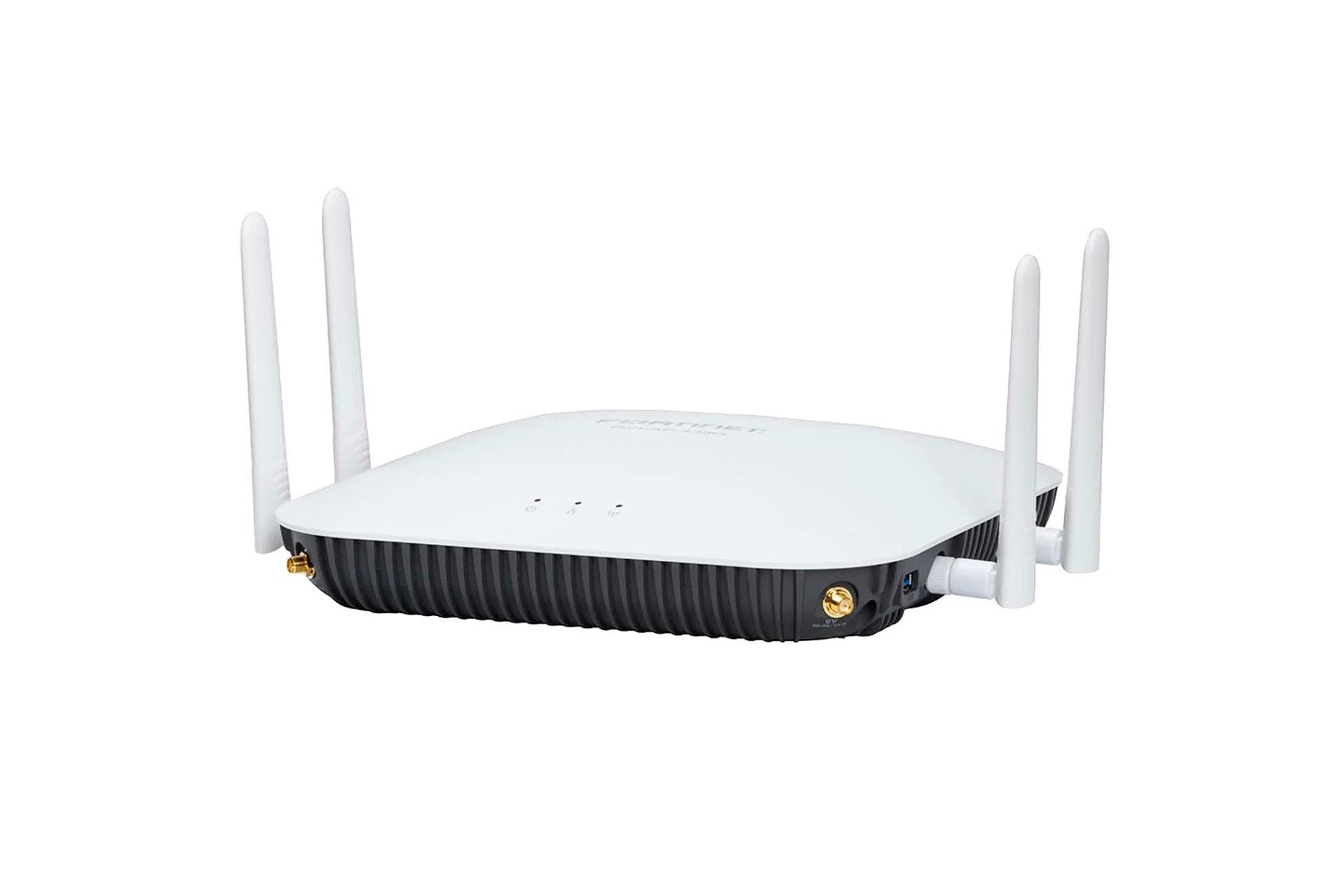

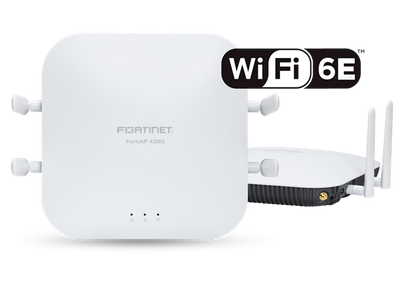

Photo is for illustration purposes only. Actual product may be different.
$902.99
$902.99
Sale Sold out
MSRP: $1,470.00
Shipping calculated at checkout.
  • Tri-radio support: Wi-Fi 6E (802.11ax) over 2.4GHz, 5GHz, and 6GHz bands
  • 4+4+4 MIMO streams across three radios for high throughput
  • External antenna configuration for deployment flexibility
  • Dual 5G Base-T RJ45 Ethernet ports for high-speed connectivity
  • Integrated Bluetooth/BLE for IoT device support
  • 1x USB Type A port for expansion or accessory integration

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers cutting-edge tri-band Wi-Fi 6E performance ideal for dense enterprise environments.
  • Includes dual 5G Ethernet ports and external antenna support to maximize deployment flexibility and throughput.
  • Integrated BLE and USB expansion enhance IoT integration and future-proofing.

Product Overview

The Fortinet FortiAP-433G is a high-performance indoor wireless access point supporting Wi-Fi 6E with tri-radio 4+4+4 stream MIMO. It operates across 2.4GHz, 5GHz, and 6GHz bands (6GHz availability subject to region) with dual 5G Base-T RJ45 ports for high-speed uplinks. External antenna compatibility and Bluetooth/BLE support make it ideal for scalable, IoT-ready enterprise environments. A USB Type A port allows for additional modular connectivity or expansion. Designed for high-density deployment, the FAP‑433G offers robust throughput, security, and integration within Fortinet’s infrastructure.

Specifications

Product Overview
Product Type Indoor Wireless Access Point
Form Factor Ceiling-mountable or wall-mountable
Transmit Streams Tri-Radio 4x4:4 MU-MIMO
Operating Bands 2.4 GHz, 5 GHz, 6 GHz (Wi-Fi 6E)
Maximum Data Rate 10.2 Gbps aggregate throughput
Chipset Qualcomm Networking Pro 1210 Wi-Fi 6E platform
Mounting Options Flush ceiling, T-rail, Wall
Power Requirement 802.3at or 802.3bt PoE
Power Consumption (Typical) 25.5 W (802.3at), up to 34 W (802.3bt)
Deployment Scenario High-density enterprise environments

Wireless Features
Wireless LAN Standard 802.11a/b/g/n/ac/ax/axE
Wi-Fi Band Support 2.4 GHz, 5 GHz, 6 GHz
Wi-Fi 6E Support Yes
Radio Chains 12 total (4 per radio)
OFDMA Supported
MU-MIMO 4x4 MU-MIMO
Maximum Clients Up to 1024
Radio Management WIDS/WIPS, Rogue AP Detection

Compliance & Origin
Country of Origin Taiwan
Regulatory Compliance FCC, CE, IC
Safety Certifications UL 60950-1, IEC 60950-1
Wi-Fi Alliance Certification Wi-Fi 6E Certified
RoHS Compliance Yes

Advanced Security Features
Wireless Intrusion Protection System (WIPS) Integrated WIPS/WIDS
Network Access Control Integrated with FortiNAC
Rogue AP Detection Yes
Captive Portal Support Yes
802.1X Authentication Supported
Application Control Via FortiGate integration
Firewall Support Enforced via FortiGate
Client Isolation Yes

Interfaces
Ethernet Ports 2 x 5GBASE-T RJ45
Port Speed 1G/2.5G/5G
Management Port 1 x RJ45 Console Port
USB Ports 1 x USB 3.0 Type A
Bluetooth Integrated BLE Radio
Antenna Configuration 12 Antennas Total (4 per radio)
Antenna Type Internal antennas

Physical & Environmental
Dimensions (W x D x H) 220 x 220 x 42 mm (8.66 x 8.66 x 1.65 in)
Weight 1.1 kg (2.43 lbs)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)

Cloud Management & Licensing
Cloud Management Platform FortiCloud or FortiLAN Cloud
Controller Compatibility FortiGate wireless controller
Zero Touch Deployment Supported via FortiDeploy
Licensing Model Subscription-based for FortiGuard services
