Fortinet FortiAP-231G Tri-Radio Indoor Wi-Fi 6E Access Point

VENDOR: FORTINET Mfg Part#: FAP-231G-U
1 3

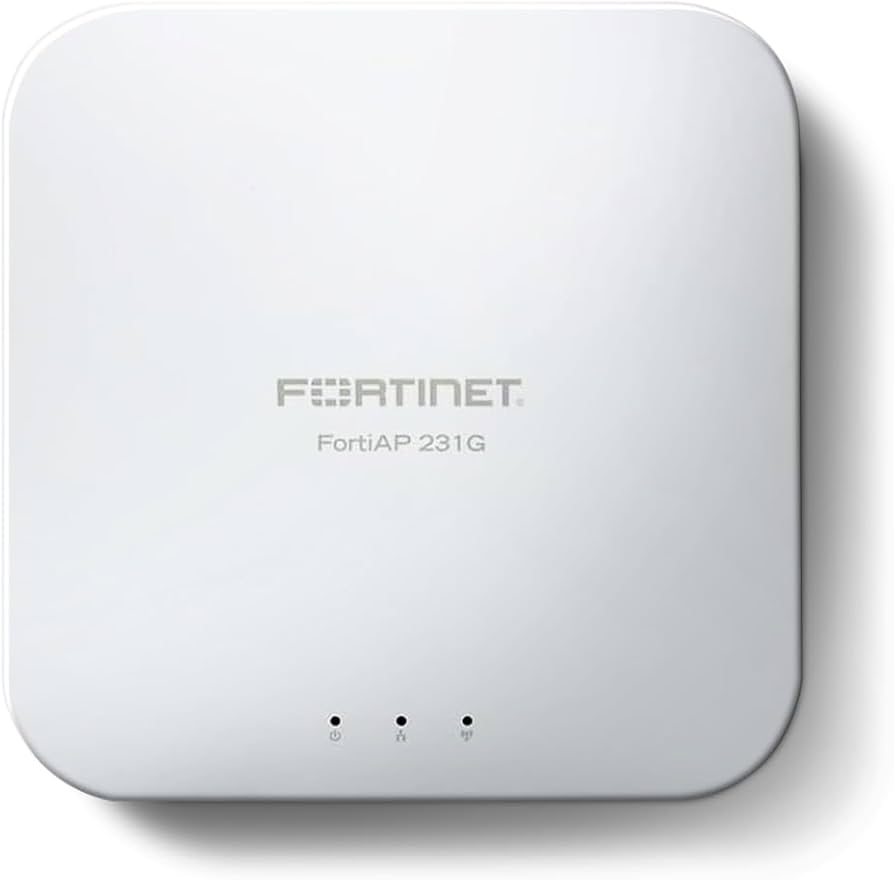

Photo is for illustration purposes only. Actual product may be different.
$287.03
$287.03
Sale Sold out
MSRP: $390.00
Shipping calculated at checkout.
  • Tri-radio Wi-Fi 6E (802.11ax) support for 2.4GHz, 5GHz, and 6GHz bands
  • 2x2 MIMO configuration for efficient multi-user throughput
  • Two network ports: 1x Gigabit Ethernet and 1x 2.5GbE Base-T RJ45
  • Internal omni-directional antennas for indoor ceiling/wall mounting
  • Integrated Bluetooth/BLE and USB-A port for IoT/device extensibility
  • Compliant with PCI DSS and includes wireless threat protection features

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers superior wireless coverage with Wi-Fi 6E tri-radio design and internal high-efficiency antennas
  • Supports multi-gigabit network performance via 2.5GbE uplink, matching high-density traffic environments
  • Enables secure WLAN environments through built-in compliance and wireless threat mitigation features

Product Overview

The Fortinet FortiAP-231G-U is a tri-radio Wi-Fi 6E access point designed for productivity-focused enterprise and commercial indoor deployments. Featuring 2x2 MIMO capability across 2.4GHz, 5GHz, and 6GHz bands, the unit provides broad and efficient wireless coverage. Dual Ethernet ports, including a 2.5Gbps uplink, support high-throughput applications and future expansion. Internal omni-directional antennas and mounting accessories simplify installation in ceilings or walls. Additional capabilities like Bluetooth/BLE, USB expansion, and advanced compliance-based network protection position this model as a versatile and secure access point for modern networks.

Specifications

Product Overview
Product Type Access Points
Model FAP-231G
Environment Indoor
Form Factor Ceiling/Wall Mountable
Radio Count Tri
Power Requirements PoE+ (802.3at)
Power Consumption (Max) 20.5 W
Weight 700 g

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax/6E
MIMO Type 2x2 MIMO
Frequency Band 2.4 GHz; 5 GHz; 6 GHz
Max Data Rate (6GHz) 2.4 Gbps
Modulation OFDM, BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Security Encryption WEP, WPA, WPA2, WPA3
Antenna Type Omni-directional
Internal Antennas Yes

Compliance & Origin
COO TAIWAN
Compliant Standards FCC, CE, IC, UL, RoHS
Compliance Certifications PCI DSS, ISO 27001, Wi-Fi CERTIFIED 6
Networking Compliant Standards 802.11a,b,d,e,g,h,i,ad,af

Advanced Security Features
Integrated Wireless IDS/IPS Yes
WLAN Security Modes Open, WPA2 Enterprise, WPA3 Enterprise
Protected Management Frames (PMF) Yes
WLAN Rogue AP Detection Yes
Compliance Security Features PCI DSS compliance, WPA3 Support

Interfaces
Networking Type Ethernet
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Networking / Ports Qty 2
Uplink Ethernet Port 1x 2.5 Gbps Ethernet (PoE+)
LAN Port 1x 1 Gbps Ethernet
USB Ports 1x USB 2.0 Type A
Bluetooth Interface Bluetooth Low Energy (BLE)

Physical & Environmental
Width 7.18 Inch
Depth 7.18 Inch
Height 2.12 Inch
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -30°C to 70°C
Operating Humidity 5% to 95% (non-condensing)
Mounting Options Wall, Ceiling (brackets included)

Cloud Management & Licensing
Management Interface FortiGate Wireless Controller / FortiCloud
Management Platform Options GUI, CLI, FortiCloud
Licensing Requirements None (Controller-managed)
Cloud Features Included Configuration, monitoring, firmware updates
