Fortinet FortiWiFi-80F-2R with 3YR FortiCare & FortiGuard Protection

VENDOR: FORTINET Mfg Part#: FWF-80F-2R-T-BDL-809-36
1 3
Photo is for illustration purposes only. Actual product may be different.
$4,599.26
$4,599.26
Sale Sold out
MSRP: $6,280.27
Shipping calculated at checkout.
  • Desktop form factor with dual-band wireless (2.4 GHz and 5 GHz)
  • 14 Gigabit Ethernet ports with support for 1.5 million concurrent sessions
  • 2x2 MU-MIMO with SMA antenna connectors for wireless performance
  • IPS throughput of 1.4 Gbps and 45,000 new sessions per second
  • Includes 3-year FortiCare Premium and FortiGuard Enterprise Protection
  • Low power consumption of 27.9W with 100–240V AC power input

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Integrated wireless connectivity and robust firewall in a compact form factor ideal for branch deployments
  • Comes bundled with 3-year FortiCare Premium and FortiGuard Enterprise Protection, ensuring long-term support and security updates
  • High session capacity and IPS throughput enable support for high-traffic environments without compromising performance

Product Overview

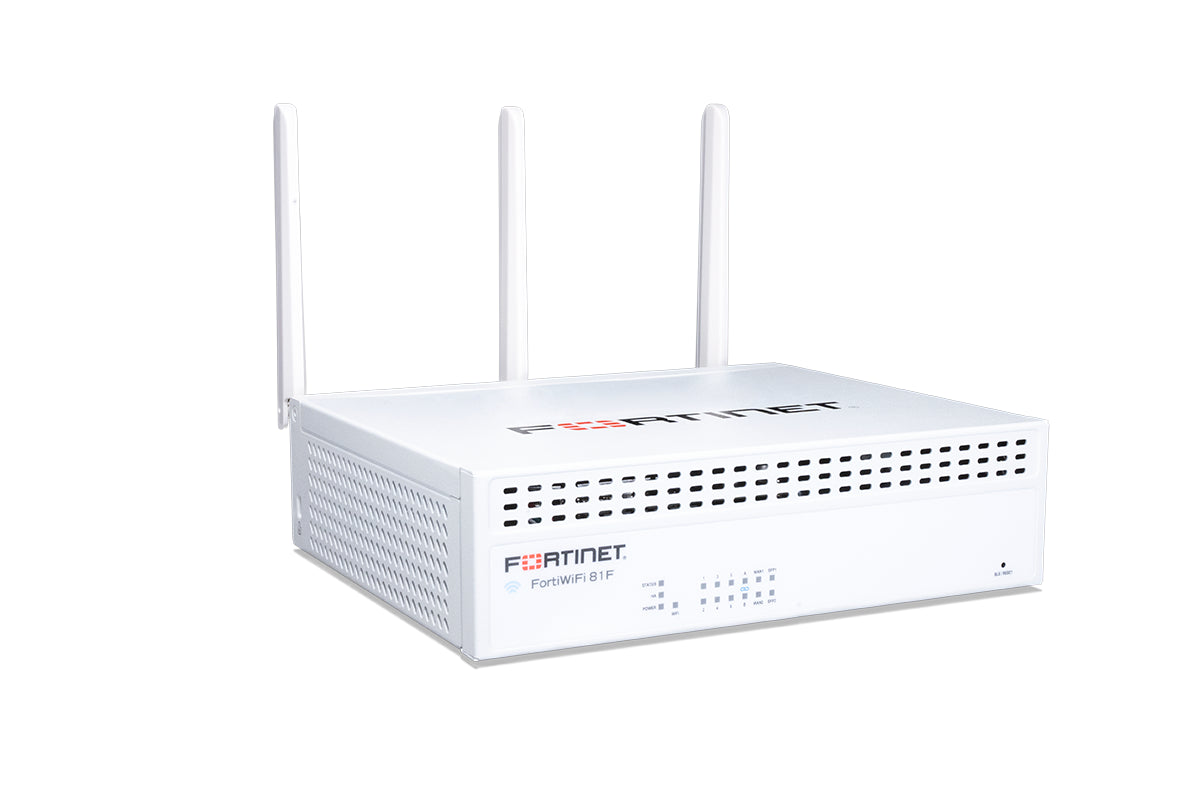

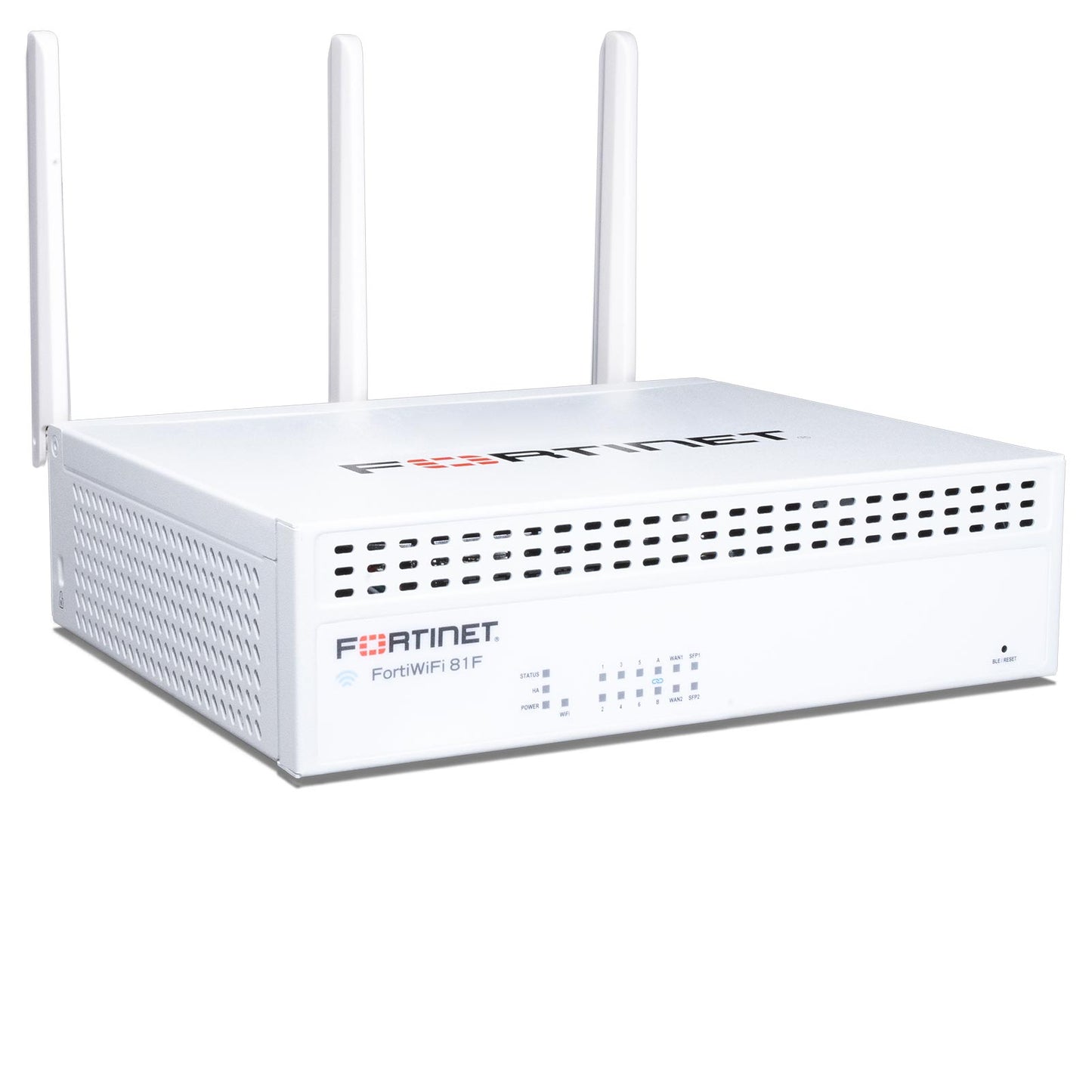

The Fortinet FortiWiFi-80F-2R is a high-performance security appliance designed to deliver advanced threat protection and wireless networking for small and branch offices. Featuring dual-radio support at 2.4 GHz and 5 GHz, the unit offers wireless connectivity with 2x2 MU-MIMO technology and SMA-connected antennas. Its compact desktop form factor measures 8.5 inches in width, 7 inches deep, and 2.4 inches high, making it easy to deploy in limited-space environments.

Powered by Gigabit Ethernet protocols across 14 networking ports, the FortiWiFi-80F-2R supports up to 1.5 million concurrent sessions and can handle 45,000 new sessions per second. With an IPS throughput of 1.4 Gbps and a maximum power consumption of just 27.9 watts, it achieves an exceptional balance of performance and energy efficiency. The device supports a power range of 100–240V AC, allowing international compliance.

Included is a 3-year FortiCare Premium and FortiGuard Enterprise Protection service plan, offering hardware support and comprehensive security services for threat intelligence, malware defense, and compliance. This makes the unit especially suited to organizations seeking a reliable, all-in-one solution for network security, wireless access, and long-term investment protection.

Specifications

Product Overview
Product Type Security Appliance
Model FWF-80F-2R
Form Factor Desktop
Weight 1.36 kg
Max Power Consumption 27.9 Watt
Power / Voltage Required 100-240V AC
Operating System FortiOS

Wireless Features
Radio Count Dual
Frequency Band 2.4 GHz; 5 GHz
Wi-Fi Standards 802.11a/b/g/n/ac
Wi-Fi Antenna Connectors SMA
Antenna Type External, Detachable
MIMO Type 2x2 MU-MIMO
Wireless Encryption WEP, WPA, WPA2, WPA3

Compliance & Origin
Country of Origin Inquire
TAA Compliance Inquire
Certifications FCC, CE, UL, ICES, VCCI, RCM, BSMI, KC

Advanced Security Features
Firewall Type Stateful Inspection Firewall
Intrusion Prevention System (IPS) Yes
Antivirus / Antimalware Yes
Web Content Filtering Yes
Application Control Yes
SSL Inspection Yes
Threat Intelligence Feed FortiGuard
Secure SD-WAN Yes
Advanced Threat Protection Yes

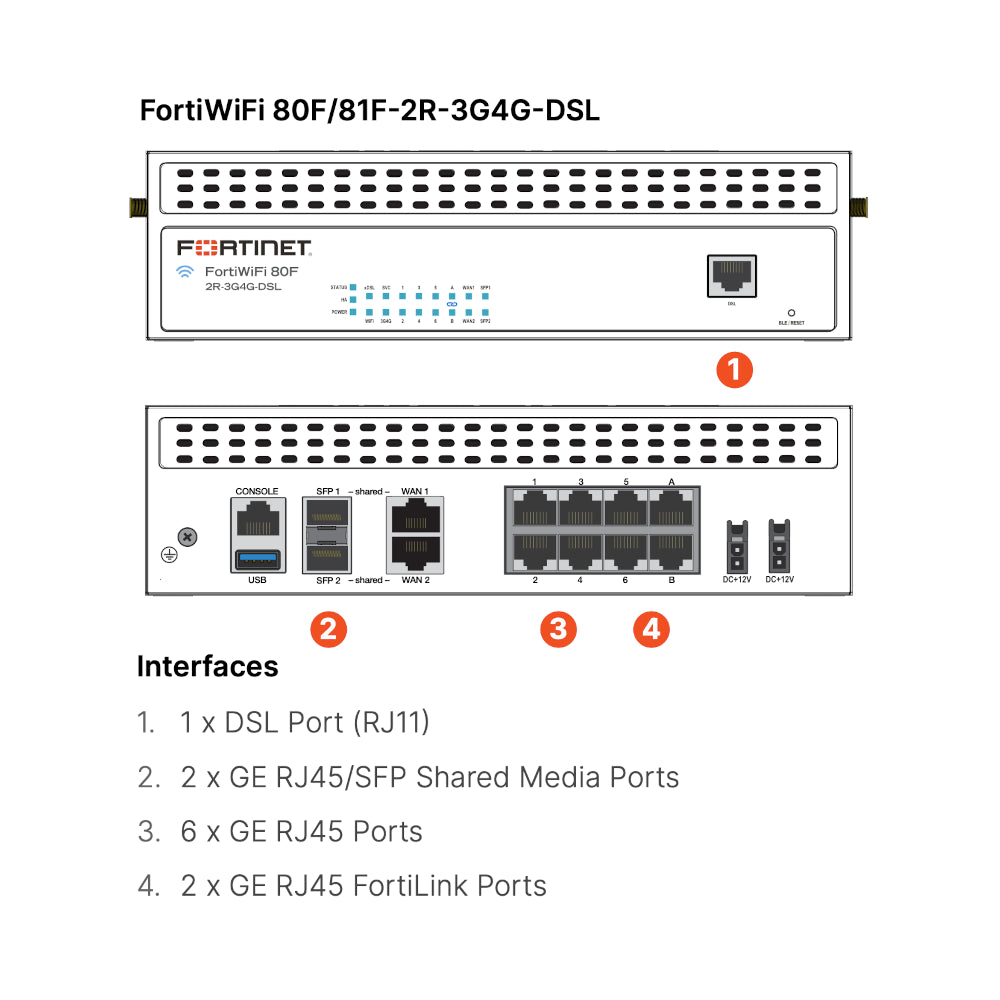

Interfaces
Networking / Ports Qty 14
RJ-45 Ports 10 x GE RJ45
SFP Ports 2 x GE SFP
WAN Ports 2 x GE RJ45/SFP Shared Media
Console Port 1 x RJ45
USB Ports 1 x USB 3.0
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Concurrent Sessions 1.5 Million
New Sessions Per Second 45000
IPS Throughput 1.4 Gbps
Firewall Throughput 10 Gbps
NGFW Throughput 1.0 Gbps
Threat Protection Throughput 900 Mbps
SSL Inspection Throughput 710 Mbps

Physical & Environmental
Width 8.5 Inch
Depth 7 Inch
Height 2.4 Inch
Operating Temperature 0°C to 40°C
Storage Temperature -35°C to 70°C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Cooling Type Fanless

Cloud Management & Licensing
Management Interface Web GUI, CLI, FortiManager, FortiCloud
Included Licensing 3 YEAR HARDWARE PLUS FORTICARE PREMIUM AND FORTIGUARD ENTERPRISE PROTECTION
Cloud Services FortiGuard Threat Intelligence, Cloud Sandboxing, Application Control
