HP 20P POE+ / 4P 1/2.5/5/XGT V3 ZL2 Module (J9991A)

VENDOR: HP Mfg Part#: J9991A UPC#: 888182604298
1 4

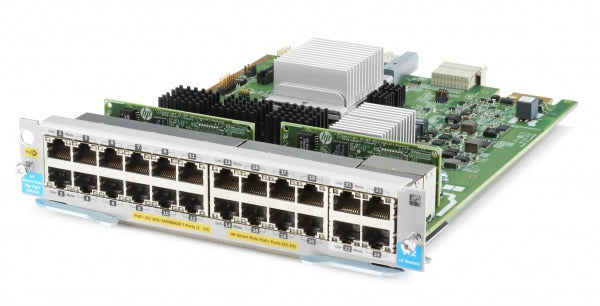

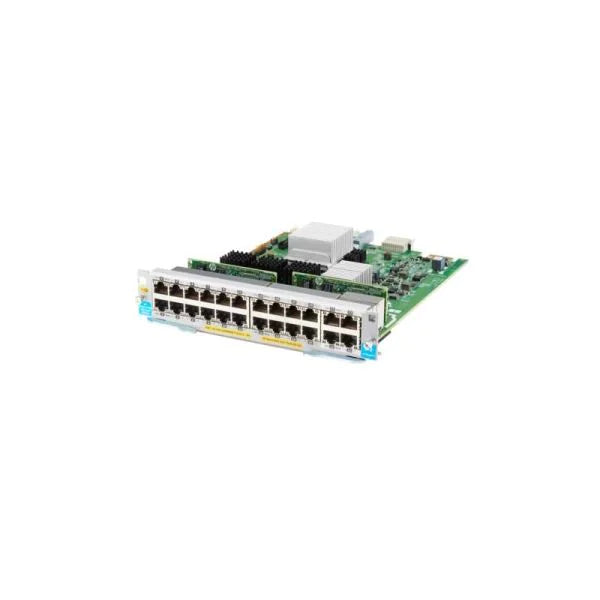

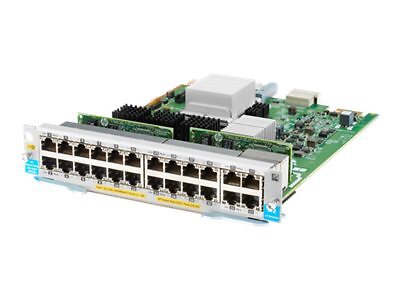

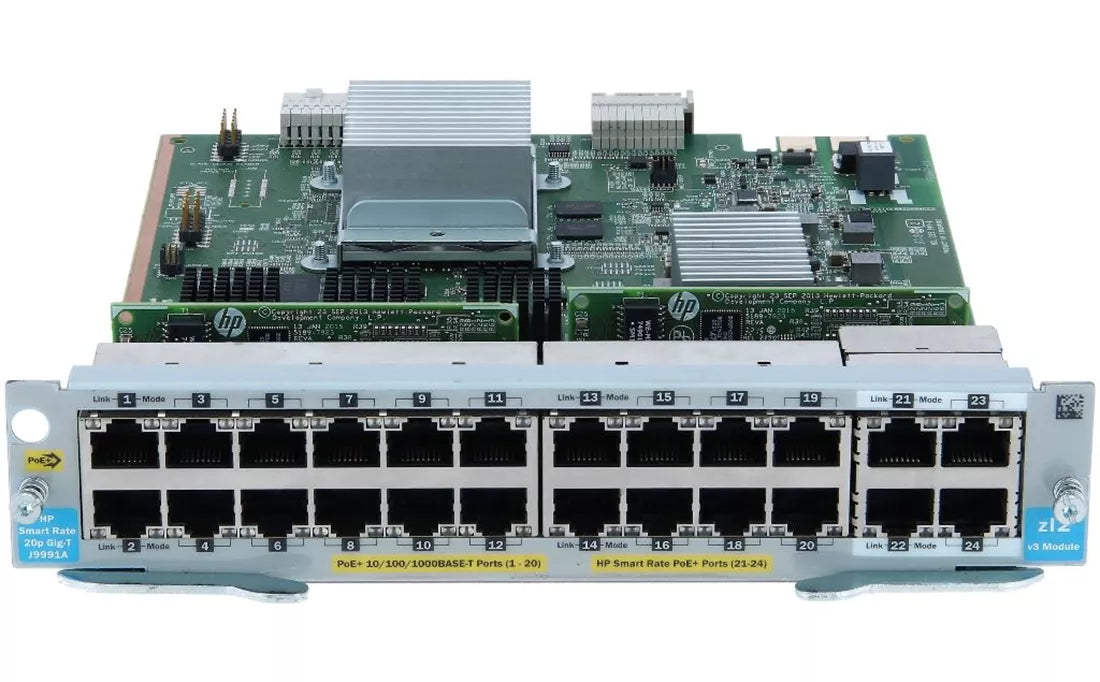

Photo is for illustration purposes only. Actual product may be different.
$5,390.68
$5,390.68
Sale Sold out
MSRP: $6,809.00
Shipping calculated at checkout.
  • Supports 1 Gbps, 2.5 Gbps, and 5 Gbps data transfer rates
  • Gigabit Ethernet protocol compatibility
  • Power over Ethernet Plus (PoE+) functionality
  • Compact dimensions: 10.3 x 8.13 x 1.75 inches
  • TAA-compliant for federal procurement eligibility
  • Manufactured in Singapore with quality assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Multi-gigabit support ensures infrastructure scalability without needing full hardware replacements
  • PoE+ integration enables cleaner installations by eliminating separate power lines for compatible devices
  • TAA compliance makes this module viable for government and regulated-sector deployments

Product Overview

The HP 20P POE+ / 4P 1/2.5/5/XGT V3 ZL2 Module (J9991A) is a high-performance port adapter module supporting 1 Gbps, 2.5 Gbps, and 5 Gbps speeds for scalable connectivity. Featuring PoE+ capabilities, it powers devices while transmitting data. With Gigabit Ethernet protocol support and a compact footprint (10.3 x 8.13 x 1.75 in), it integrates easily into network racks. TAA-compliant and manufactured in Singapore, this module is ideal for government and enterprise use.

Specifications

Product Overview
Device Type Port Adapter Module
Module Compatibility Aruba 5400R zl2 Switch Series
Form Factor Plug-in module
Power over Ethernet (PoE+) Supported
PoE Power Budget Up to 30 W per port, total power subject to switch budget
Product Series HP zl2 Modules
Weight 1.65 lbs (0.75 kg)
Power Requirements Powered by host chassis

Physical & Environmental
Width 10.3 Inch (26.2 cm)
Depth 8.13 Inch (20.7 cm)
Height 1.75 Inch (4.45 cm)
Operating Temperature 32°F to 131°F (0°C to 55°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 15% to 95% non-condensing
Airflow Side-to-rear

Cloud Management & Licensing
Management Interface Managed via ArubaOS-Switch via host switch
Cloud-Enabled Yes, when installed in a cloud-managed switch chassis
Licensing Requirements No additional licensing required
Monitoring Capabilities Port status, PoE power usage, traffic statistics (via switch interface)

Interfaces
Total Ports 24
10/100/1000 Ports 20 x RJ-45 (PoE+)
Multi-Gigabit Ports 4 x RJ-45 (1G/2.5G/5G/10GBASE-T)
Supported Interface Type Ethernet / Fast Ethernet / Gigabit Ethernet / 2.5G / 5G / 10G Ethernet
Port Connector Type RJ-45
Data Transfer Rate 1 Gbps
Data Transfer Rate 2.5 Gbps
Data Transfer Rate 5 Gbps
Data Transfer Rate 10 Gbps on select ports
Full Duplex Support Yes

Compliance & Origin
TAA Compliant Yes
Country of Origin Singapore
Certifications UL, cUL, ICES, VCCI, FCC, EN 55022 Class A
RoHS Compliant Yes
Safety Standards UL 60950-1, IEC 60950-1, EN 60950-1

Advanced Security Features
Port Security Supported through host switch features
MAC Locking Supported via switch OS
Access Control Lists (ACLs) Supported via host switch configuration
IEEE 802.1X Network Access Control Supported via host switch OS
