HPE Aruba CX 6400 48-Port 1GbE Class 4 PoE v2 Module R0X38C

VENDOR: HP Mfg Part#: R0X38C UPC#: 190017537467
1 5

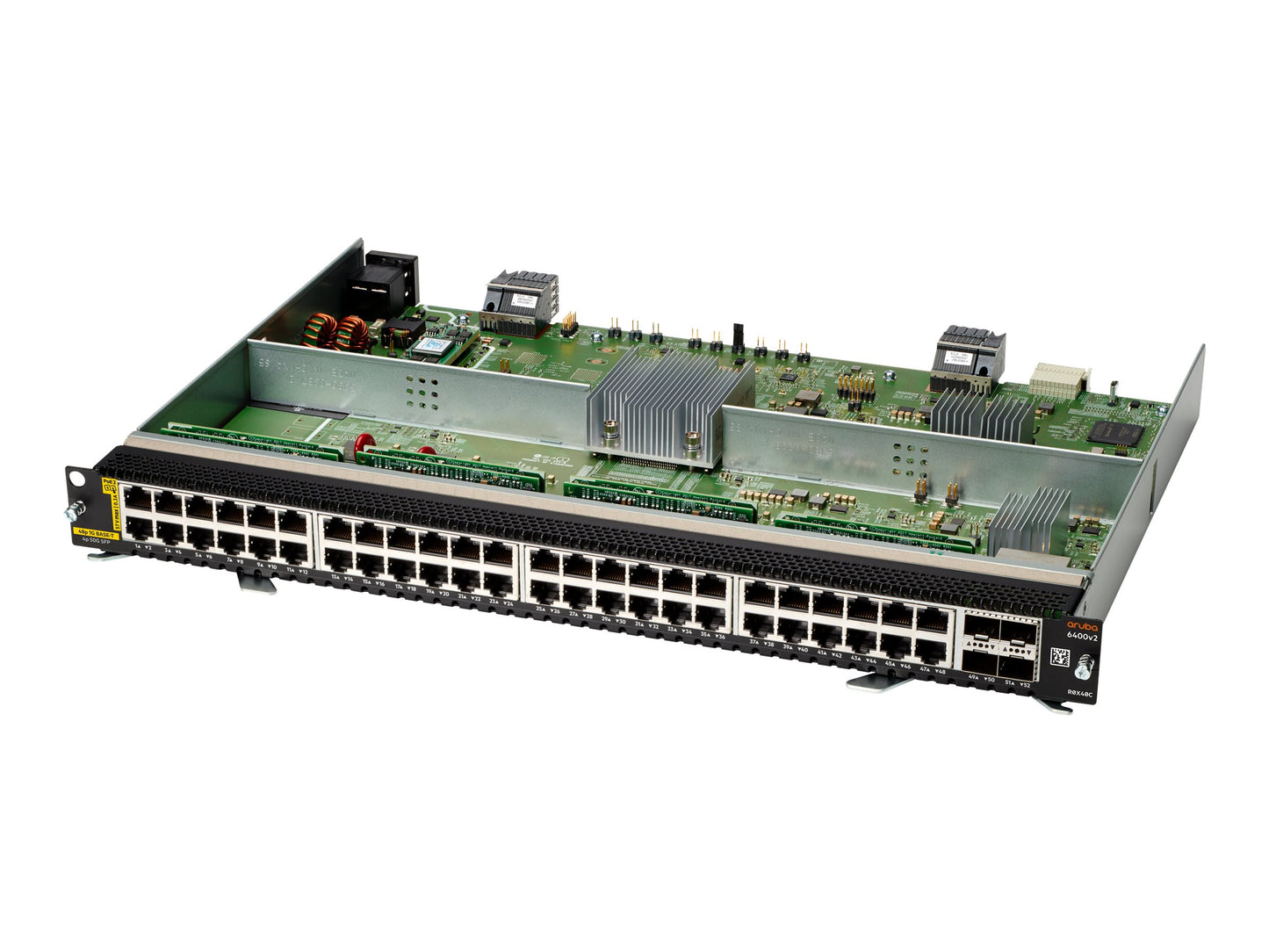

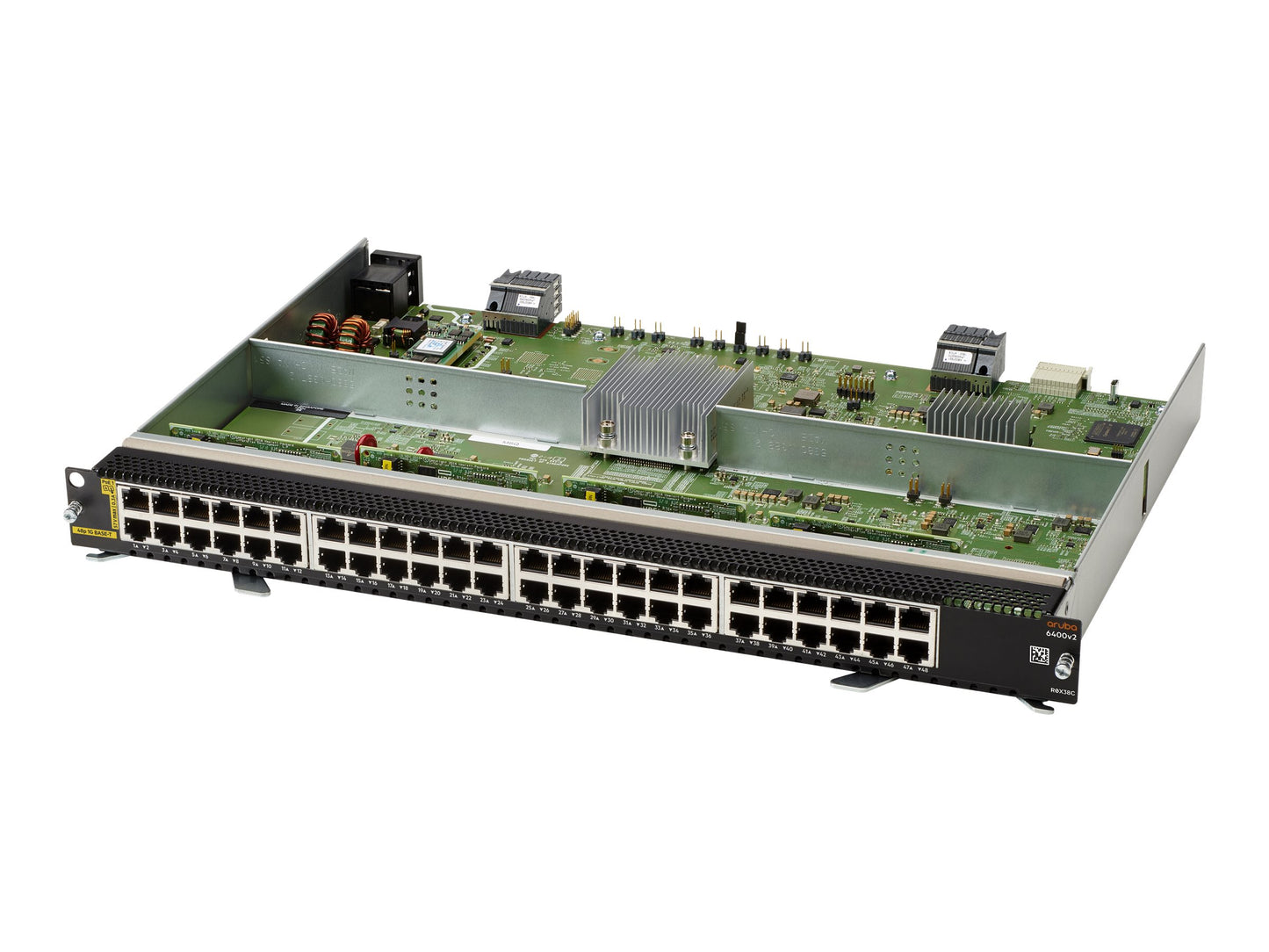

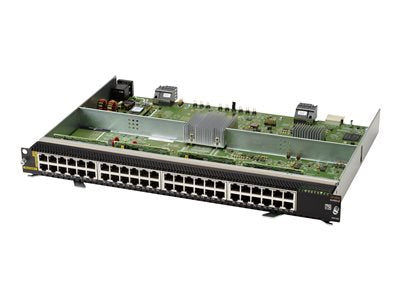

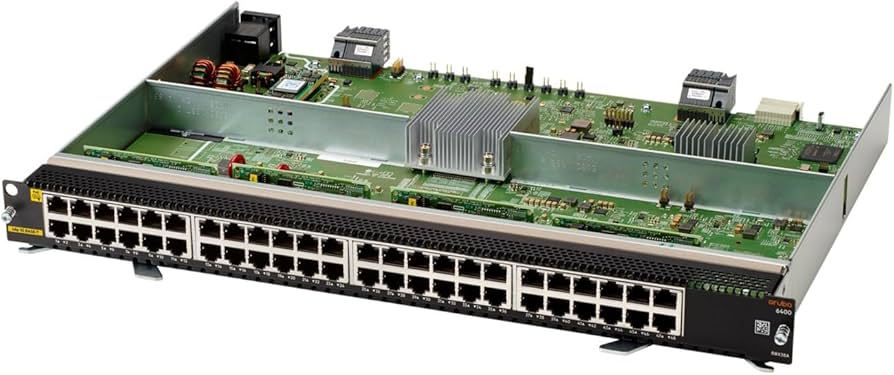

Photo is for illustration purposes only. Actual product may be different.
$9,143.33
$9,143.33
Sale Sold out
MSRP: $11,549.00
Shipping calculated at checkout.
  • 48-port 1GbE Gigabit Ethernet with Class 4 PoE support
  • Plug-in module design for Aruba CX 6400 Series
  • Supports wired connectivity with 1 Gbps data transfer rate
  • TAA compliant and manufactured in Singapore
  • Compact dimensions (1.7" height) for easy rack integration
  • Redundant power and fan support with Aruba VSX architecture

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-density 1GbE with PoE for enterprise edge and access layer requirements
  • Built-in redundancy and Aruba VSX support ensure high availability and minimal downtime
  • Plug-in form factor enables scalable, modular network expansion within CX 6400 series

Product Overview

The HPE Aruba Networking CX 6400 48-port 1GbE Class 4 PoE v2 Module (R0X38C) is crafted for high-performance and redundant enterprise networking. With 48 Gigabit Ethernet ports supporting Class 4 PoE, it ensures seamless connectivity and sufficient power provisioning for endpoint devices. The module leverages Aruba VSX architecture to achieve high availability alongside redundant power and cooling. TAA compliance and a plug-in modular form factor make it ideal for government and commercial installations. Its scalable design ensures it can support dense network topologies as part of a larger Aruba switching framework.

Specifications

Product Overview
Product Type Module
Form Factor Plug-In Module
Type 48-Port 1GbE Class 4 PoE Module
Supported Platform HPE Aruba CX 6400 Series Switches
Power Requirements Class 4 PoE (up to 30W per port)
Connectivity Technology Wired
PoE Standard IEEE 802.3at (PoE+)
Device Type Network Switch Line Card
Redundant Capabilities Supports redundant power and cooling
Weight 3.6 lbs (1.63 kg)

Physical & Environmental
Width 12.4 Inch
Depth 17.3 Inch
Height 1.7 Inch
Operating Temperature Range 32°F to 131°F (0°C to 55°C)
Storage Temperature Range -40°F to 158°F (-40°C to 70°C)
Operating Humidity Range 5% to 95% (non-condensing)
Airflow Front-to-back or back-to-front (depends on chassis fans)

Cloud Management & Licensing
Management Interface ArubaOS-CX via CLI, GUI, REST API
Cloud Management Compatibility Aruba Central (with license)
Licensing Model Separate license required for Aruba Central management
Stacking Support Supported via Aruba VSX architecture

Interfaces
Interface Type Gigabit Ethernet
Port Count 48
Data Transfer Rate 1 Gbps per port
Data Link Protocol Gigabit Ethernet
PoE Power Budget Up to 1440W (depending on chassis power supply)
Ethernet Standards IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at
Maximum Power Per Port 30 W
Total Available PoE Ports 48

Compliance & Origin
Country of Origin Singapore
TAA Compliance Yes
Certifications UL, cUL, CB, FCC Class A, VCCI, CE, RCM
RoHS Compliance Yes
WEEE Compliant Yes
Safety Standards IEC 60950-1, IEC 62368-1

Advanced Security Features
Access Control 802.1X, MAC authentication
Policy Enforcement Firewall Supported via Aruba Dynamic Segmentation
Traffic Filtering ACLs (Access Control Lists)
Security Monitoring Port security, DHCP snooping, ARP protection
