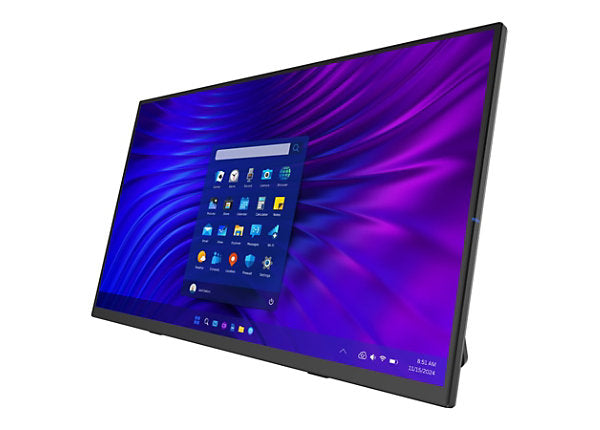

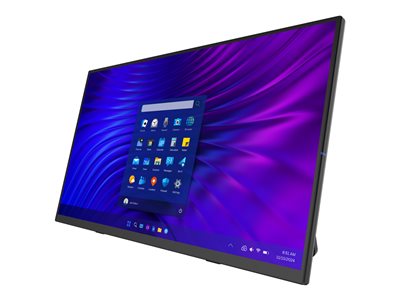

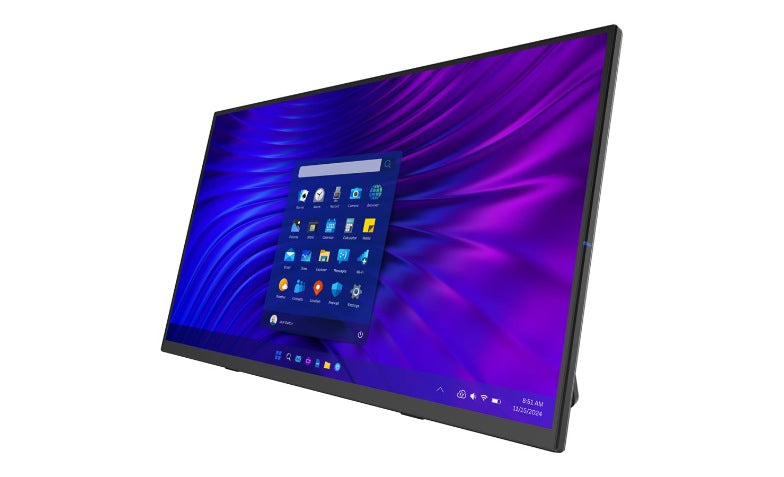

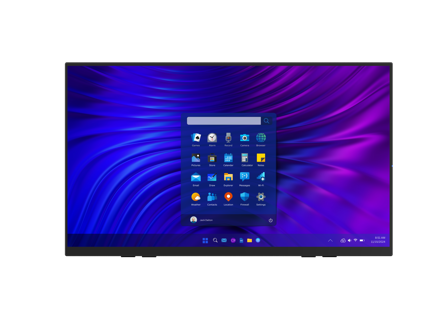

PLANAR PCT2735Q Helium 27" QHD Touchscreen Monitor

VENDOR: PLANAR Mfg Part#: 998-3718-00 UPC#: 810069811154
1 5
Photo is for illustration purposes only. Actual product may be different.
$523.98
$523.98
Sale Sold out
MSRP: $540.00
Shipping calculated at checkout.
  • 27-inch QHD (2560 x 1440) resolution IPS LED touchscreen display
  • Projected capacitive multi-touch with HID compliance and MPP 2.0 pen support
  • Anti-glare surface with 360 cd/m² brightness and 178° viewing angles
  • Inputs: HDMI, DisplayPort, USB 3.0 hub (2x USB A), 3.5mm headphone jack
  • Built-in stereo speakers and adjustable tilt (+15° to +70°), VESA mount compatible
  • Energy Star and RoHS certified with 40W typical power consumption

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Precision touch input with HID-compliant projected capacitive technology enhances UX in design and collaboration spaces
  • High-resolution QHD panel with anti-glare and wide viewing angles delivers quality visuals in multi-user environments
  • Flexible ergonomics and connectivity—including HDMI, DisplayPort, and USB 3.0—optimizes integration into professional workflows

Product Overview

Planar PCT2735Q, Helium 27Inch black zero bezel monitor, HID compliant, optically bonded, projected capacitive multi-touch, QHD, IPS, LED LCD, HDMI, DP, USB3.0 hub, speakers, MPP2.0 Active pen compatible, Anti-Glare, stand, 15 - 70 tilt range, flat.

Specifications

Product Overview
Model Planar PCT2735Q
Type Touchscreen Monitor
Display Diagonal Size 27 Inch
Display Type LCD Monitor
Display Format QHD
Display Technology IPS, LED
Flat / Curved Flat
Native Resolution 2560 x 1440
Display / Color Support 16.7 Million Colors
Response Time 5 ms
Refresh Rate 75 Hz
Image Contrast Ratio 1000:1
Brightness 360 cd/m²
Dot Pitch / Pixel Pitch 0.2331 mm
Viewing Angle (H/V) 178° / 178°
Image Aspect Ratio 16:9
Screen Type Anti-glare
Touchscreen Technology Projected Capacitive (PCAP)
MPP 2.0 Active Pen Compatible Yes
Audio Output 3.5mm headphone jack
Speakers 2 x 1W integrated
Power Consumption Operational 40 Watt
Power Consumption (Off Mode) <0.3W
Power Consumption Standby <1.5W
Power / Voltage Required 100-240 VAC, 50/60 Hz
Weight 12.8 lbs.

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin China
Energy Star Compliant Yes
RoHS Compliant Yes
Certifications FCC Class B, CE, UL, cUL, RoHS, TUV

Advanced Security Features
Integrated Security Features

Interfaces
HDMI Ports 1 x HDMI 1.4
DisplayPort 1 x DisplayPort 1.2
USB Ports 2 x USB 3.0 Type-A, 1 x USB Type-B (Upstream)
Audio Out 1 x 3.5mm headphone jack

Physical & Environmental
Width 24.2 Inch
Depth 1.9 Inch
Height 13.4 Inch

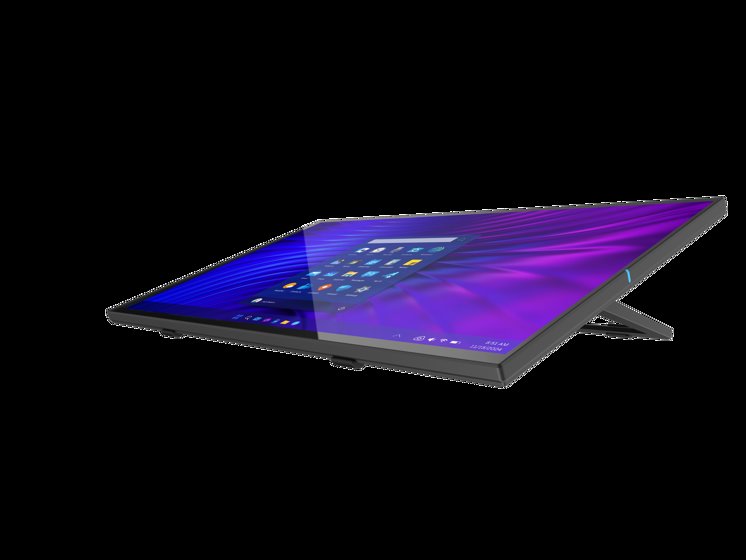

Adjustable Display Tilt +15° to +70° and flat
VESA Mount Compatibility 100 mm
Minimum Operating Temperature 0°C
Maximum Operating Temperature 40°C
Operating Humidity Range 10% – 90% RH non-condensing
