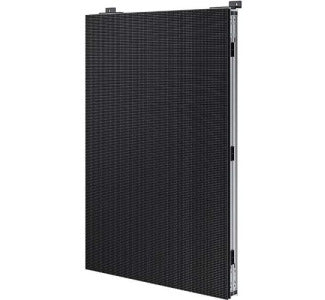

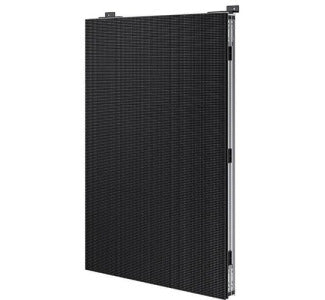

Samsung CY-10VTB490 XPR-B 10mm Outdoor LED Display, 216x96 Resolution

VENDOR: SAMSUNG Mfg Part#: CY-10VTB490 UPC#: 887276505855
1 3
Photo is for illustration purposes only. Actual product may be different.
$11,936.72
$11,936.72
Sale Sold out
MSRP: $15,912.00
Shipping calculated at checkout.
  • Outdoor LED display unit with 10.416 mm pixel pitch and 216 x 96 resolution
  • Brightness rating of 7000 cd/m² ensures visibility even in full sunlight
  • 7680 Hz refresh rate for smooth, flicker-free playback
  • Supports 281 trillion colors with 16-bit color processing and 24-bit video processing
  • Front maintenance access in an aluminum cabinet with quiet fan cooling
  • Wide operating temperature range: -40 °F to 131 °F

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Built for extreme outdoor environments with full-sun visibility and -40 °F to 131 °F operating range
  • High-performance refresh rate and color depth enable vivid, professional-grade visuals for business-critical signage
  • TAA compliant and U.S.-manufactured, meeting federal procurement standards for quality and compliance

Product Overview

The Samsung CY-10VTB490 from the XPR-B Series is a professional-grade outdoor LED display panel designed for wide-view digital signage. With a pixel pitch of 10.416 mm and 7680 Hz refresh rate, it supports ultra-smooth visuals and high-performance video. The display offers a brightness of 7000 cd/m² for full-sun visibility and operates in extreme temperatures between -40 °F and 131 °F. Constructed with a rugged aluminum cabinet and front service access, it is TAA compliant and supports power redundancy to ensure reliable, uninterrupted usage in mission-critical signage applications.

Specifications

Product Overview
Type Outdoor LED display panel
Series XPR-B Series
Display Resolution 216 x 96
Pixel Pitch 10.416 mm
Pixel Density 9216 pixels/m²
Pixel Configuration 1 red, 1 green, 1 blue
LED Type SMD
LED Lifetime 100000 hours
Color Processing 16-bit
Video Processing 24-bit
Dimming Levels 256
Color Depth 281 trillion colors
Frame Rate 7680 Hz
Brightness 7000 cd/m²
Contrast Ratio
Viewing Angle (Horizontal) 160°
Viewing Angle (Vertical) 90°
Color Temperature 4500 - 9000K
Form Factor Modular LED Cabinet
Weight 363.32 lbs
Power Requirement AC 100-240 V (50/60 Hz)
Max Power Consumption 2850 W
Typical Power Consumption 940 W
Cooling System Quiet running vent fans

Physical & Environmental
Width 91.7 in
Height 40.6 in
Depth
Mounting Type
Enclosure Material Aluminum
Maintenance Access Front
Min Operating Temperature -40 °F
Max Operating Temperature 131 °F
IP Rating

Cloud Management & Licensing
Remote Management
Cloud Platform Compatibility
Management Software Included
Licensing Requirements

Interfaces
Video Inputs
Control Interface
Power Supply Type Integrated
Power Redundancy Yes

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL, ULC

Advanced Security Features
Tamper Resistance
Content Encryption
Secure Access Control
