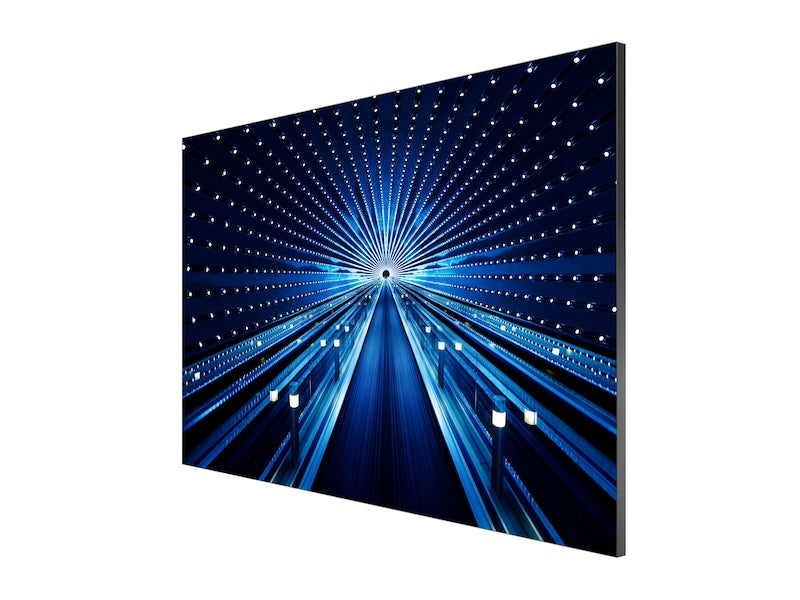

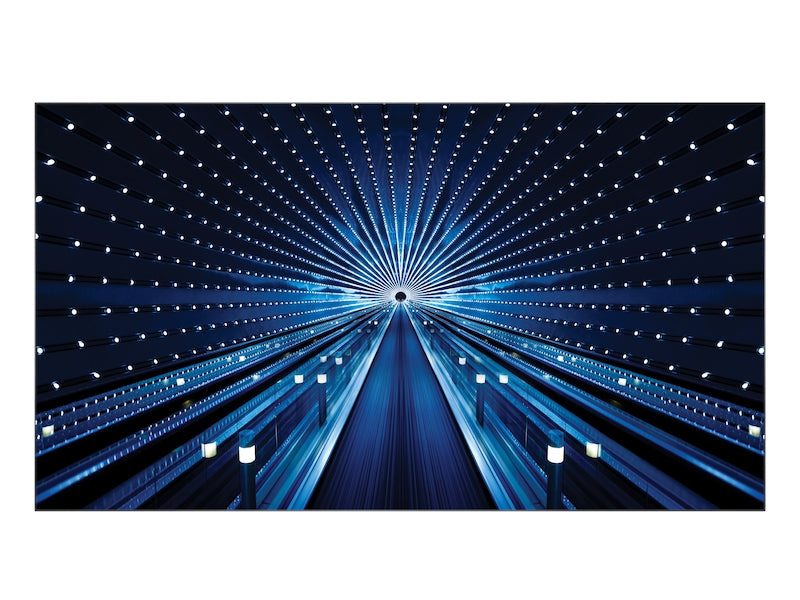

Samsung The Wall All-in-One IAB 146 4K Video Wall Display

VENDOR: SAMSUNG Mfg Part#: SUB-IAB 146 4K UPC#: 887276656779
1 3
Photo is for illustration purposes only. Actual product may be different.
$189,578.80
$189,578.80
Sale Sold out
MSRP: $280,256.00
Shipping calculated at checkout.
  • - 3840 x 2160 4K resolution with LCD technology for ultra-sharp image clarity
  • - Brightness of 1600 nits for high-visibility environments
  • - 0.84 mm pixel pitch ideal for close-up viewing and detailed visuals
  • - Supports HDR and image enhancement features for vivid, true-to-life color
  • - Integrated Wi-Fi, Bluetooth, speakers, and multiple video interfaces (HDMI 2.0, DisplayPort 1.2)
  • - TAA compliant and capable of operating between 0°C to 40°C with high humidity tolerance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - Delivers exceptional 4K image quality with a fine pixel pitch and high contrast, ideal for large-scale digital signage or immersive content presentation
  • - Equipped with versatile connectivity options and built-in speakers, minimizing the need for additional AV infrastructure
  • - TAA compliance and industrial-grade operational specs make it suitable for federal, enterprise, and mission-critical installations

Product Overview

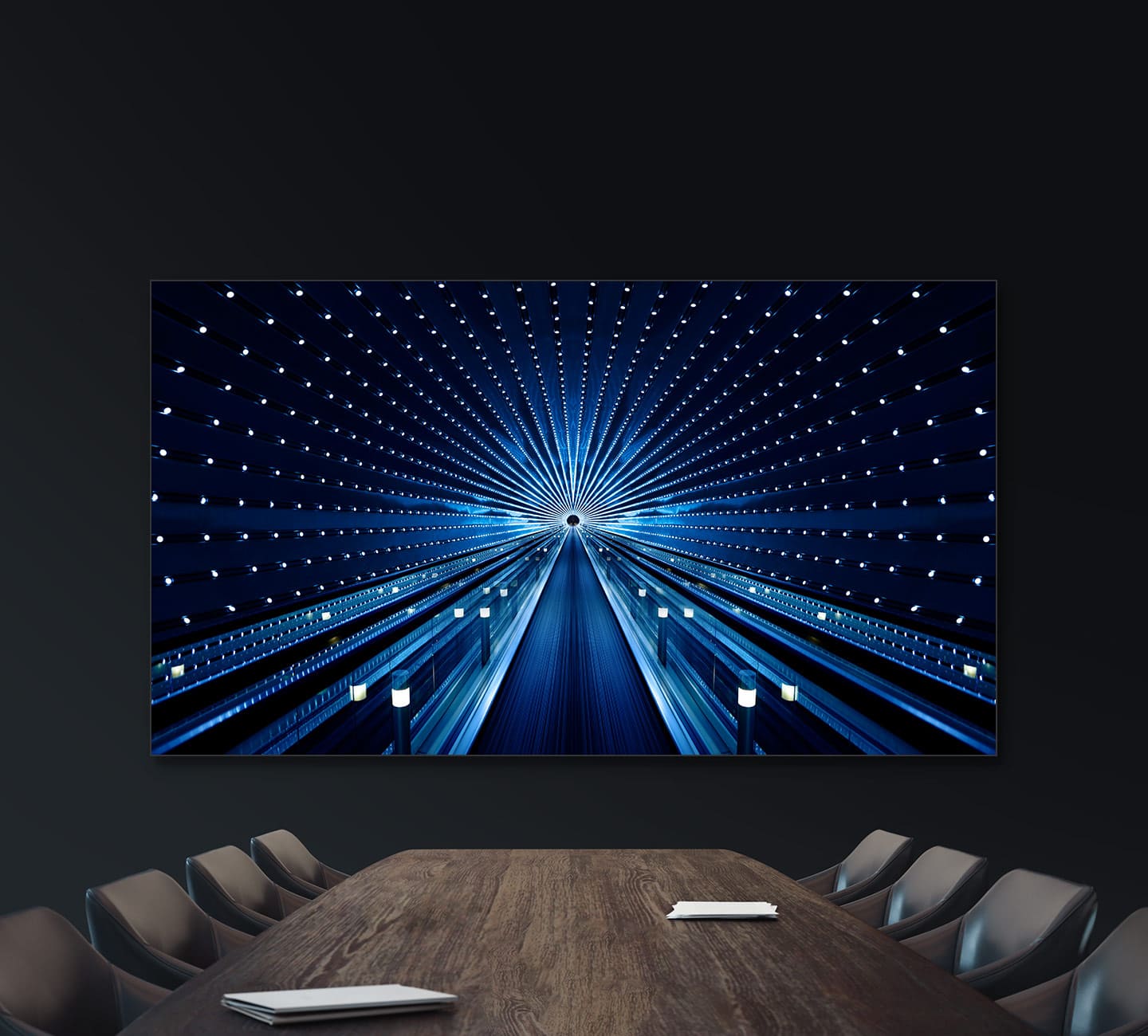

The Samsung The Wall All-in-One IAB 146 4K is a cutting-edge large-format ultra HD display optimized for premium visual environments such as corporate spaces, control rooms, or high-end hospitality. It offers a 3840 x 2160 resolution, HDR support, and a pixel pitch of 0.84 mm for sharp, vibrant visuals. With 1600-nit brightness and wide viewing angles (170°/155°), images remain rich and clear in various lighting conditions. Its smart integration includes Wi-Fi, Bluetooth, HDMI, DisplayPort, and USB connectivity along with built-in speakers. TAA compliant and built for rigorous use, it supports operations in 0–40°C with 10%–80% RH, delivering both performance and dependability in complex commercial settings.

Specifications

Product Overview
Product Type LED Video Wall Display
Series The Wall All-in-One IAB
Model Name SUB-IAB 146 4K
Display Technology MicroLED
Resolution 3840 x 2160 (4K UHD)
Pixel Pitch 0.84 mm
Brightness (Typical) 1600 nit
Static Contrast Ratio 24000:1
HDR Support Yes (HDR10, HDR10+)
Viewing Angle (H/V) 170° / 155°
Power Consumption (Operational) 1100 W
Voltage Required 100~240 VAC, 50/60 Hz
Built-in Speakers Yes

Wireless Features
Wi-Fi Yes
Bluetooth Yes

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications FCC, UL, CE, CB

Advanced Security Features
Secure Sign-On Yes (Admin/User roles)
Content Protection HDCP 2.2

Interfaces
HDMI Ports 3 x HDMI 2.0
DisplayPort 1 x DisplayPort 1.2
USB Ports 2 x USB 2.0
Control Interfaces RS232C (In), RJ45
Audio Out Yes (Stereo Mini Jack or Digital Out)

Physical & Environmental
Width 3225.6 mm
Height 1814.4 mm
Depth 49 mm
Operating Temperature Range 0°C to 40°C
Operating Humidity Range 10% to 80% RH
Mounting Type Wall-mount (fixed frame)
Bezel Width 0.0 mm (bezel-less)
Display Surface Matte / Anti-glare
Cabinet Material Aluminum

Cloud Management & Licensing
Remote Management Yes (Samsung MagicINFO)
Included Cloud Management Platform MagicINFO Player S
License Type MagicINFO license required (sold separately)
