| Product Type | Outdoor LED Display |
| Form Factor | Modular Panel |
| Series | XPR-B Series |
| Model Number | CY-10VTB4C0 |
| Display Technology | LED |
| Pixel Pitch | 10 mm |
| Maximum Resolution | 288 x 72 |
| Brightness | 7,000 nits (typical) |
| Refresh Rate | 3,840 Hz |
| Viewing Angle (Horizontal/Vertical) | 160° / 160° |
| Contrast Ratio | 5,000:1 |
| Power Consumption (Typical) | 280 W/panel |
| Power Consumption (Max) | 700 W/panel |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Lifetime (Typical) | 100,000 hours |
| Mounting Type | Wall Mount or Frame Structure |

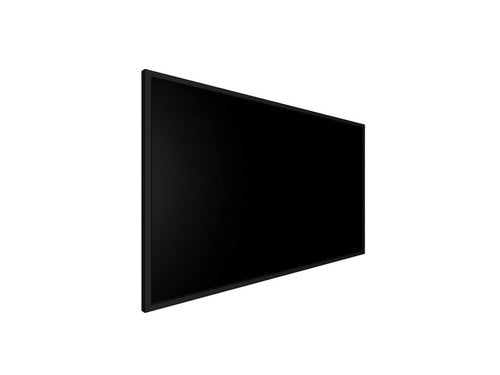

Samsung XPR-B 4HX12W LED Display (288x72 Resolution)
Photo is for illustration purposes only. Actual product may be different.
Regular price
$14,544.44
Regular price
Sale price
$14,544.44
Unit price
per
MSRP: $19,525.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 288 x 72 resolution for enhanced clarity in wide-format signage
- 10 mm pixel pitch suitable for long-distance viewing
- LED display technology for high brightness and visual impact
- TAA compliant for use in U.S. government contracts
- Manufactured in the United States
- Single-face outdoor configuration
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Ideal for outdoor commercial signage with bright, clear LED visibility.
- Meets TAA compliance standards, making it suitable for government and federal deployments.
- Made in the U.S., meeting quality standards and reducing lead time for domestic projects.
Product Overview
The Samsung XPR-B 4HX12W is a high-performance outdoor LED display built for impactful digital signage. Featuring a 288x72 resolution with a 10 mm pixel pitch, it ensures excellent readability from a distance. TAA compliance and U.S. manufacturing align the product with security-conscious or government projects. Ideal for commercial exteriors, the LED technology enhances visibility in challenging lighting while the large-format design accommodates powerful branding or messaging.
Specifications
Product Overview
Wireless Features
| Wireless Connectivity |
Compliance & Origin
| Country of Origin | United States |
| TAA Compliant | Yes |
| Certifications | FCC, ETL, CE, RoHS |
| EMC Class | Class A |
Advanced Security Features
| Secure Management Protocols | Supported via external controller |
| Data Encryption | Yes, via management system |
| Administrator Access Control | Yes, via MagicINFO or third-party CMS |
Interfaces
| Input Interface | HDMI (via external controller) |
| Signal Input Type | DVI, HDMI, DisplayPort (through S-Box or controller) |
| Control Interface | RJ45 (Ethernet), RS232 (via controller) |
Physical & Environmental
| Unit Dimensions (W x H x D) | 960 x 240 x 124 mm |
| Panel Area | 0.23 m² |
| Panel Weight | 13.5 kg (29.76 lbs) |
| Operating Temperature Range | -30°C to 50°C (-22°F to 122°F) |
| Operating Humidity | 10% – 90%, non-condensing |
| IP Rating (Front/Rear) | IP66 / IP66 |
| Cabinet Material | Aluminum |
| Cooling System | Natural Ventilation (Fanless) |
| Service Access | Front & Rear Serviceable |
Cloud Management & Licensing
| Remote Management | Samsung MagicINFO (via S-Box or external controller) |
| Content Management Support | Yes, through MagicINFO or compatible CMS |
| Software Licensing Required | MagicINFO license sold separately |
| Health Monitoring | Yes, when connected to MagicINFO or compatible controller |
