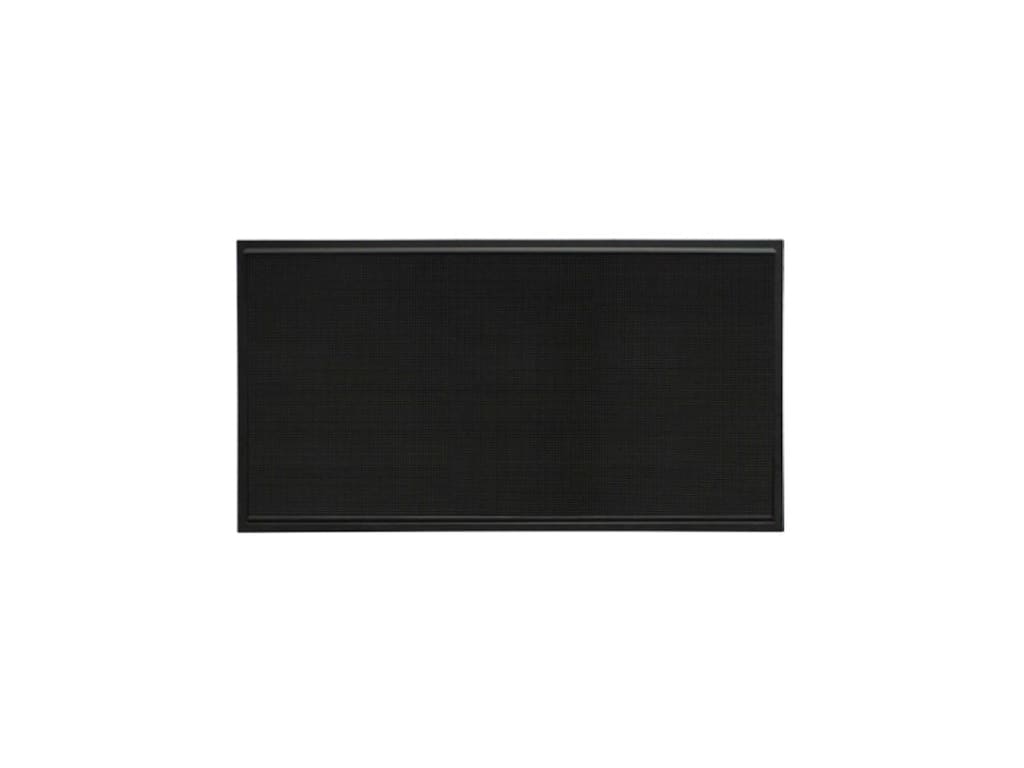

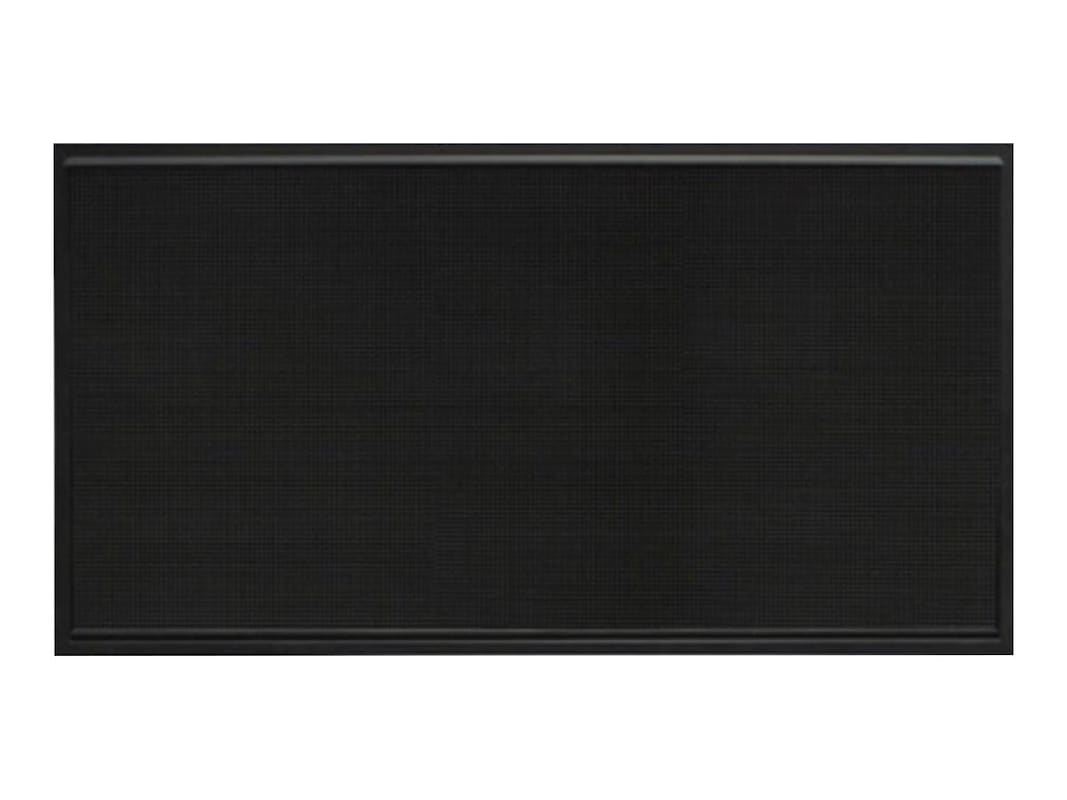

SAMSUNG XPR-B 8mm Outdoor LED Double Face Display

VENDOR: SAMSUNG Mfg Part#: LHX08VTD6C0 UPC#: 887276586960
1 3
Photo is for illustration purposes only. Actual product may be different.
$35,788.86
$35,788.86
Sale Sold out
MSRP: $47,798.29
Shipping calculated at checkout.
  • LED display type for vibrant outdoor visuals
  • 8mm pixel pitch supporting medium-range visibility
  • 360x180 resolution in a 6Hx12W format (per face)
  • Double-faced design for bidirectional messaging
  • TAA compliant for government and regulated sector use
  • Country of Origin: Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for high-traffic outdoor locations needing visible, dual-direction signage.
  • TAA compliance makes it suitable for government or federally funded installations.
  • Backed by Samsung’s professional display engineering, ensuring reliability in demanding environments.

Product Overview

The SAMSUNG XPR-B 8mm Outdoor LED Double Face is a commercial-grade display engineered for bi-directional outdoor signage needs. Featuring a dual-sided LED panel with an 8mm pixel pitch, it covers a 6-foot-high by 12-foot-wide display area and delivers a 360x180 resolution per face. Made in Mexico and compliant with TAA regulations, this display is suitable for enterprise-level deployment. Although detailed metrics like brightness and refresh rate are unavailable, its large-format LED specification indicates durability and impact visibility in various public settings.

Specifications

Product Overview
Product Type Outdoor LED Digital Signage Display
Model XPR-B 8mm Double Face
Manufacturer Samsung
Manufacturer Part Number LHX08VTD6C0
Display Format Double-sided (Dual Face)
Pixel Pitch 8 mm
Resolution per Face 360 x 180 pixels
Display Size per Face 6 ft x 12 ft
Brightness ≥ 7,000 nits
Color Capability Full Color RGB
Viewing Angle (Horizontal/Vertical) 160° / 160°
LED Type SMD (Surface-Mounted Device)
Display Lifetime ≥ 100,000 hours
Power Consumption (Max) 920 W/m²
Power Consumption (Average) 368 W/m²
Power Supply 100-240V AC, 50/60Hz
Refresh Rate ≥ 3,840 Hz

Wireless Features
Remote Connectivity Optional through network connectivity

Compliance & Origin
TAA Compliant Yes
Country of Origin Mexico
EMC Certification FCC Part 15 Class A
Certifications UL, CE, RoHS

Advanced Security Features
Tamper-proof Design Enclosed cabinet with lockable access
Remote Access Control Restricted to authenticated administrators via MagicINFO or network controller

Interfaces
Video Input HDMI, DVI, DisplayPort (via video controller)
Control Interface Ethernet (RJ-45)
Daisy Chain Support Yes (via Controller)
Signal Transmission Fiber or Copper via External Controller (Sold Separately)

Physical & Environmental
Installation Type Free-standing or Pole-mounted Outdoor
Enclosure Rating IP65 (Front), IP54 (Rear)
Operating Temperature Range -30°C to +50°C (-22°F to 122°F)
Operating Humidity Range 10% - 90% RH non-condensing
Material Aluminum/Steel Frame with Protective Coating
Wind Load Rating Designed to meet local code standards
Cooling Method Fan-based active cooling
Service Access Front and rear access for maintenance

Cloud Management & Licensing
Compatible Management Platform Samsung MagicINFO (Sold Separately)
Remote Monitoring Yes, via MagicINFO Server
Included Management Software None (Available Separately)
Network Control Through external media player/controller
