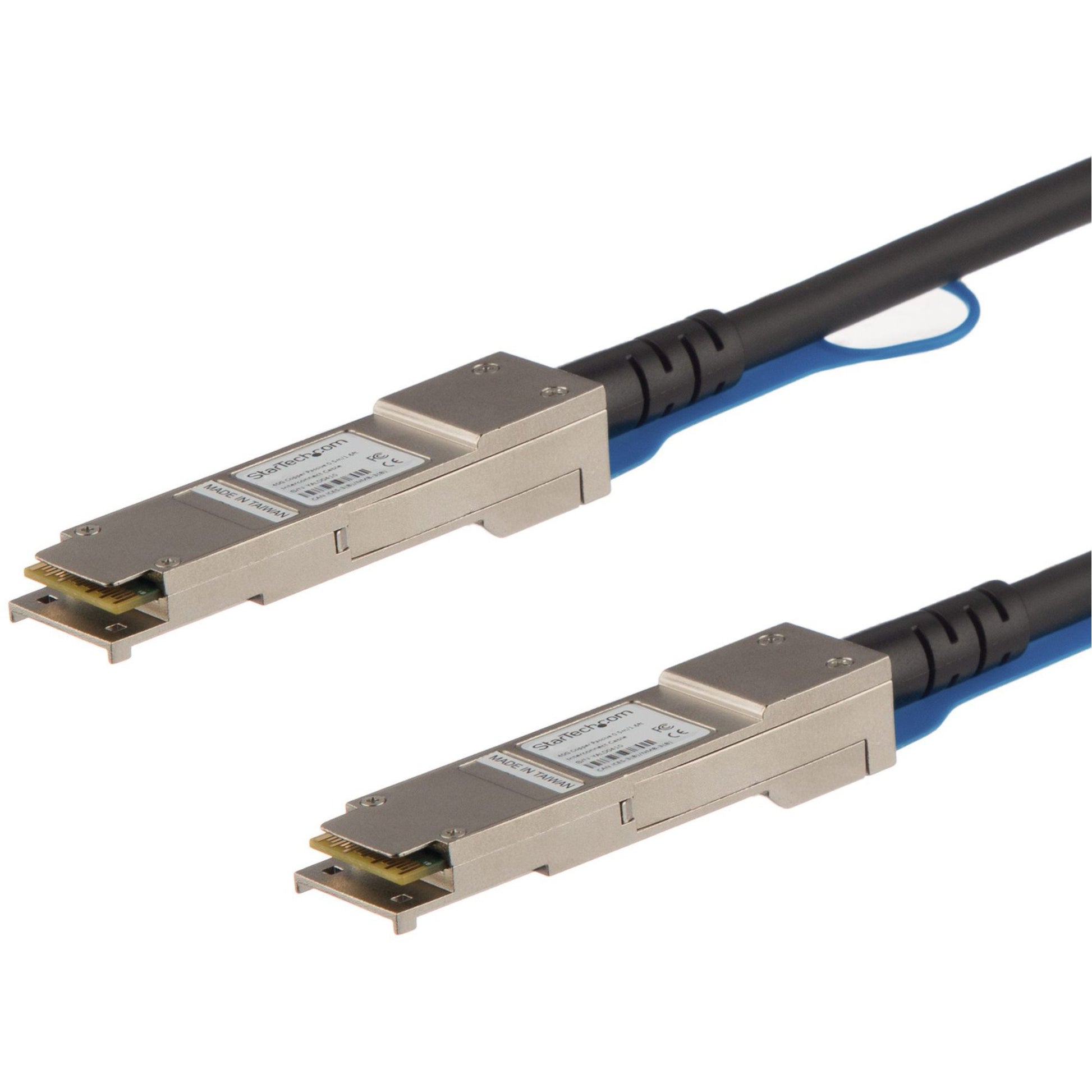

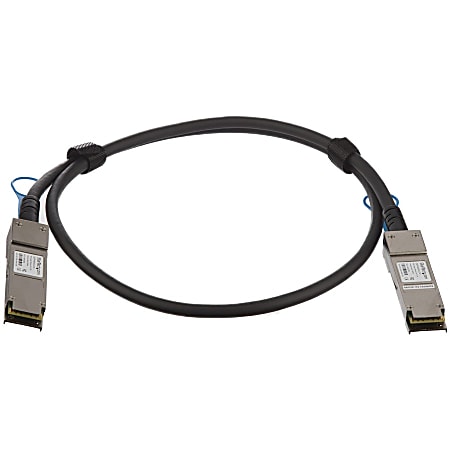

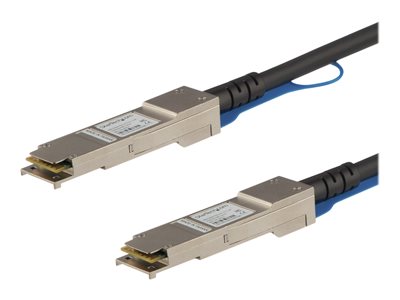

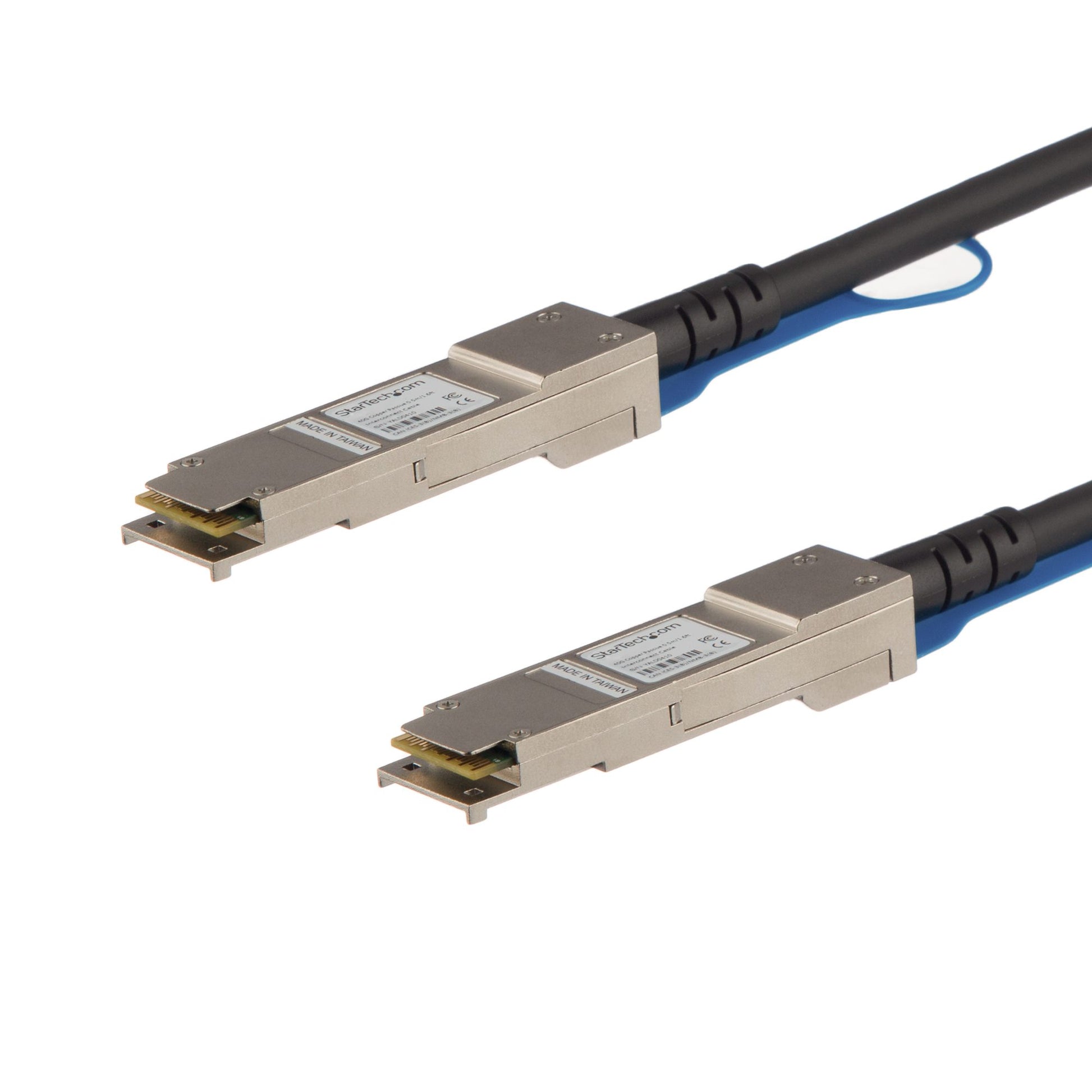

StarTech 1m 40G QSFP+ Direct Attach Cable (QSFPH40GCU1M)

VENDOR: STARTECH Mfg Part#: QSFPH40GCU1M UPC#: 065030874861
1 5
Photo is for illustration purposes only. Actual product may be different.
$102.08
$102.08
Sale Sold out
MSRP: $109.99
Shipping calculated at checkout.
  • Passive 1-meter direct attach Twinax cable with 40 Gbps capability
  • Compatible with Cisco QSFP-H40G-CU1M and supports 10GbE transceiver modules
  • Features 30 AWG copper conductors encased in PVC jacket
  • Equipped with QSFP+ connectors on both ends for seamless deployment
  • Hot-swappable and MSA-compliant for easy, cost-effective integration
  • TAA-compliant with lifetime warranty and Taiwan country of origin

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • 100% Cisco QSFP-H40G-CU1M compatibility ensures seamless integration in existing Cisco network infrastructures.
  • Lifetime warranty and TAA compliance make it ideal for enterprise and government buyers seeking long-term value and compliance.
  • Hot-swappable, MSA-compliant design simplifies upgrades and maintenance while minimizing downtime.

Product Overview

100% Cisco QSFP-H40G-CU1M Compatible 1m 40G direct attach cable - 40 Gbps Passive Twinax Copper Low Power 2x QSFP+ Pluggable Connector - 10GbE Transceiver Module DAC for C9300 /C9200 /C9400 - Hot-Swappable MSA Compliant Lifetime Warranty

Specifications

Product Overview
Product Type Passive Direct Attach Copper (DAC) Cable
Form Factor QSFP+ to QSFP+
Cable Length 1 m
Color Black
Warranty Lifetime Warranty
Power Requirements Low power, passive (no separate power source required)
Wire Gauge 30 AWG

Physical & Environmental
Cable Jacket Material PVC (Polyvinyl Chloride)
Minimum Operating Temperature 0°C
Maximum Operating Temperature 70°C
Humidity Range Operating 10% to 85% RH (non-condensing)

Cloud Management & Licensing
Cloud Management
Software Licensing Required No

Interfaces
Connector A QSFP+ male
Connector B QSFP+ male
Data Transfer Rate 40 Gbps
Interface Type Passive Twinax Copper
Hot-Swappable Yes
Supported Protocols 10GBASE-CR, 40GBASE-CR4
Compatibility Compatible with Cisco QSFP-H40G-CU1M and other MSA compliant devices
Application High-speed interconnect for switches, routers, servers, and network interfaces

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
RoHS Compliant Yes
Certifications CE, FCC, MSA compliant

Advanced Security Features
Encryption Support No encryption, physical layer connection
Network Security Features Not applicable for passive DAC cables
