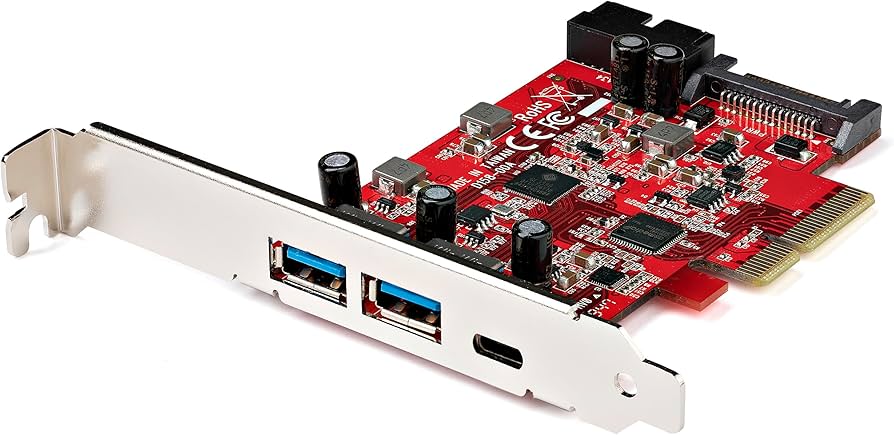

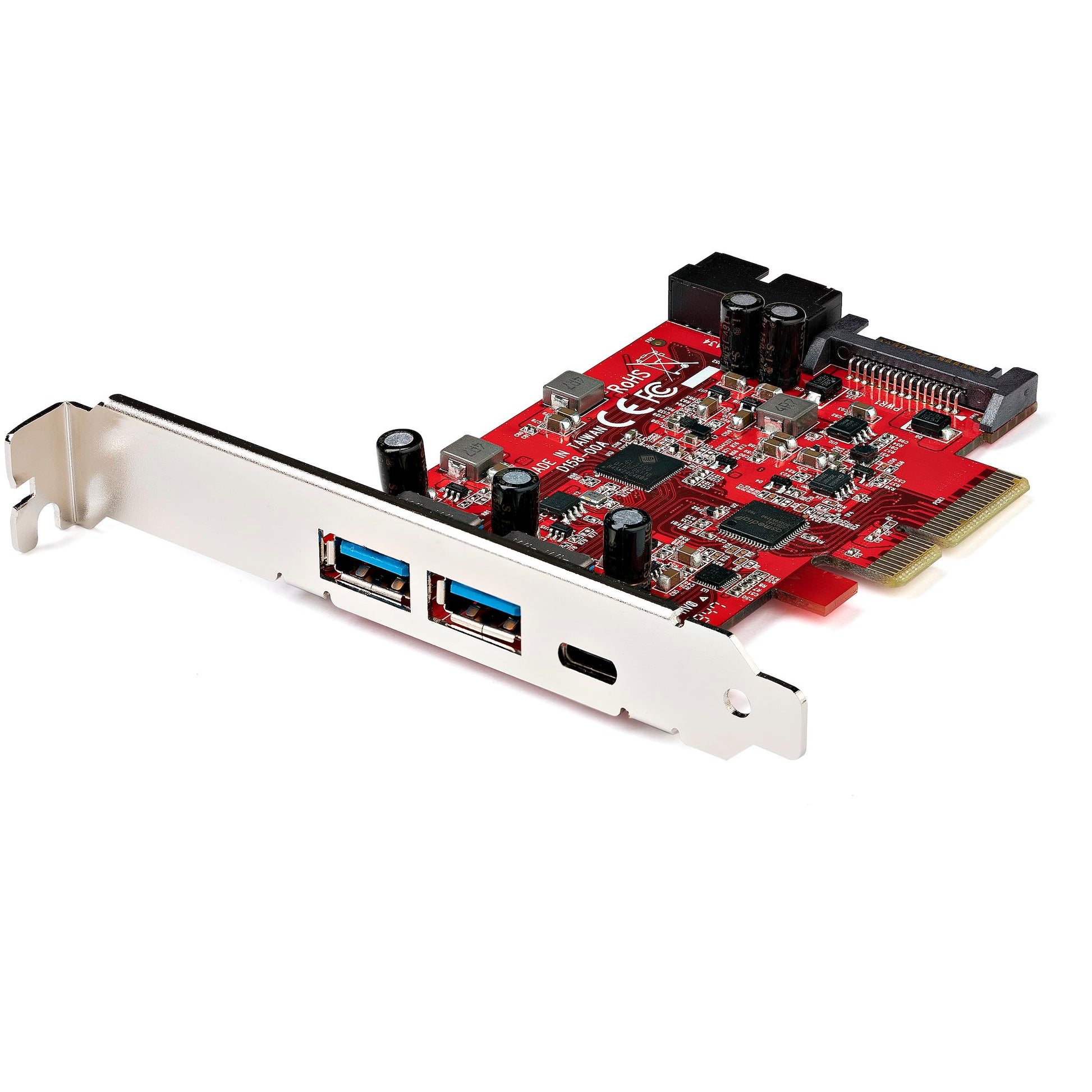

StarTech 4-Port USB 3.1 Gen 2 PCIe Card, 2x USB-C, 2x USB-A, 10Gbps

VENDOR: STARTECH Mfg Part#: PEXUSB312A2C2V UPC#: 065030887076
1 5
Photo is for illustration purposes only. Actual product may be different.
$136.68
$136.68
Sale Sold out
MSRP: $137.99
Shipping calculated at checkout.

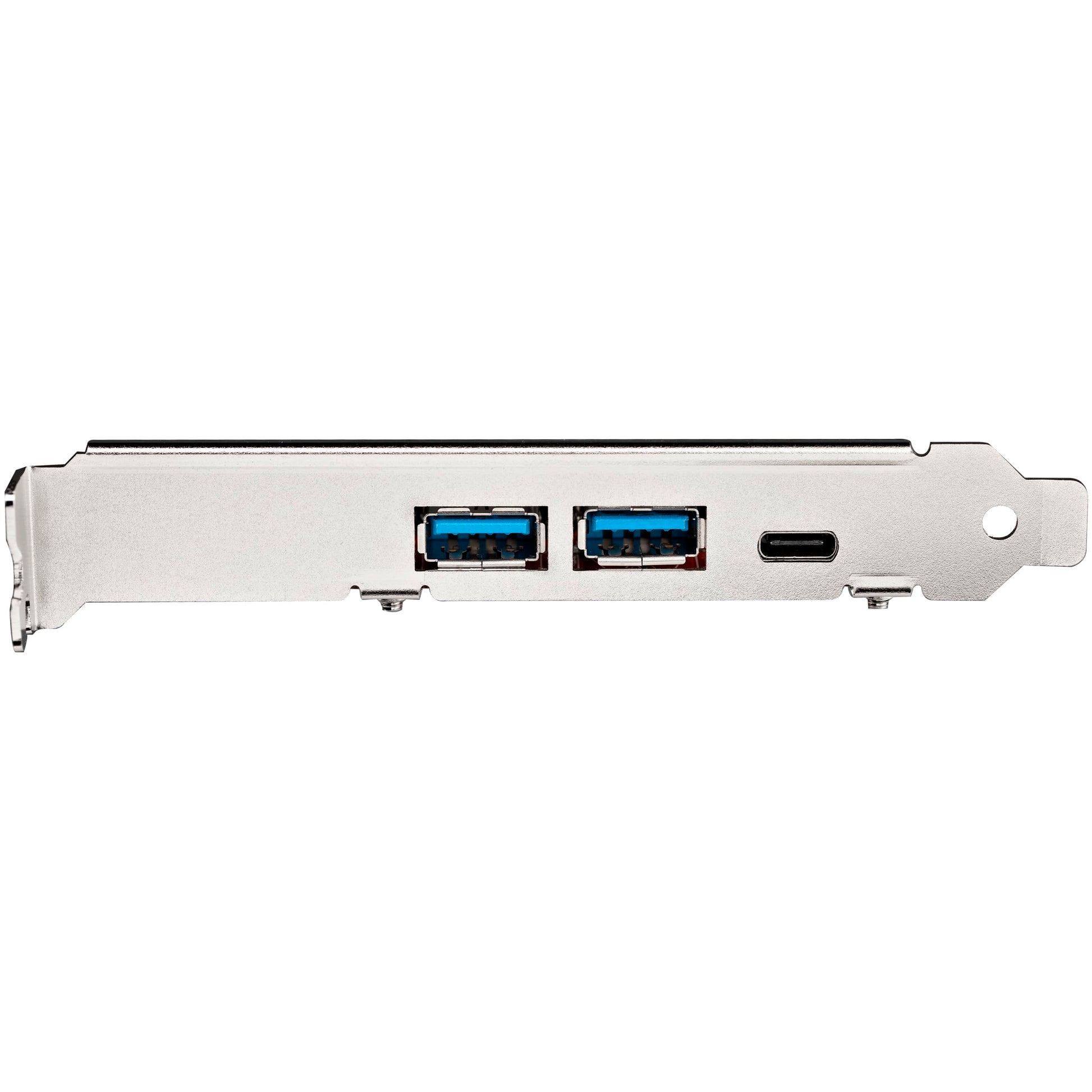

  • 4 external USB 3.1 Gen 2 ports: 2x USB-A and 2x USB-C, each supporting 10Gbps
  • Dual ASM3142 controllers supporting a total bandwidth of up to 20Gbps
  • PCI Express 3.0 x4 interface for high-speed system integration
  • Optional 15-pin SATA power connector for additional device power
  • Full-profile plug-in module form factor with durable red enclosure
  • TAA compliant and manufactured in Taiwan with 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables ultra-fast data transfer for USB 3.1 Gen 2 peripherals at up to 10Gbps per port
  • Supports both USB-A and USB-C devices, offering broad connectivity for legacy and newer hardware
  • Dual-controller architecture ensures optimal performance and reduced bottlenecks under heavy load

Product Overview

4 Port USB PCIe Card (USB 3.1 Gen 2) - 2x ASM3142 controllers up to 20Gbps total - PCI Express expansion card; 10Gbps 2x USB-A/2x USB-C - Multiple INs - For USB/USB Type-C devices/SSD/NVMe - Optional SATA power - PCI-e 3.0 x4 slot; Full profile

Specifications

Product Overview
Product Type PCIe Card
Form Factor Plug-In Module
Power Requirements Optional SATA Power Connector (15-pin)
Product Color Red
Weight 80 g

Physical & Environmental
Width 3.3 Inch
Depth 4.4 Inch
Height 0.9 Inch
Enclosure Type Full-height Bracket
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Operating Humidity 15% to 90% (non-condensing)
Storage Humidity 15% to 90% (non-condensing)

Advanced Security Features
Overcurrent Protection Yes
ESD Protection ±15kV (air), ±8kV (contact)

Wireless Features
Wi-Fi
Antenna Type
Wireless Frequency

Interfaces
Interface Type PCI Express 3.0 x4
Port Count 4
Port Types 2x USB 3.2 Gen 2 Type-A (9-pin), 2x USB 3.2 Gen 2 Type-C (24-pin)
Controller(s) 2x ASMedia ASM3142
Data Transfer Rate per Port 10 Gbps
Max Aggregate Throughput 20 Gbps (combined across controllers)
Internal Power Interface 1x SATA Power (15-pin)
Connectivity Technology Wired

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, REACH
RoHS Compliant Yes
Warranty 2-Year Manufacturer Warranty
