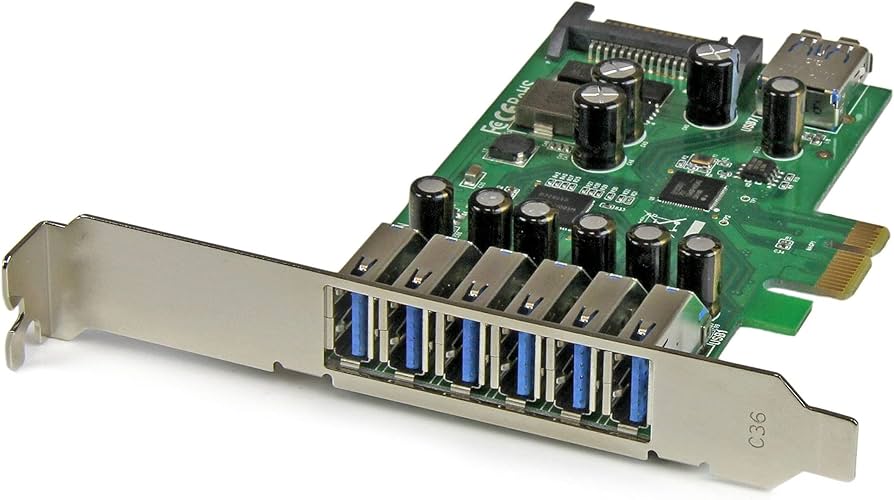

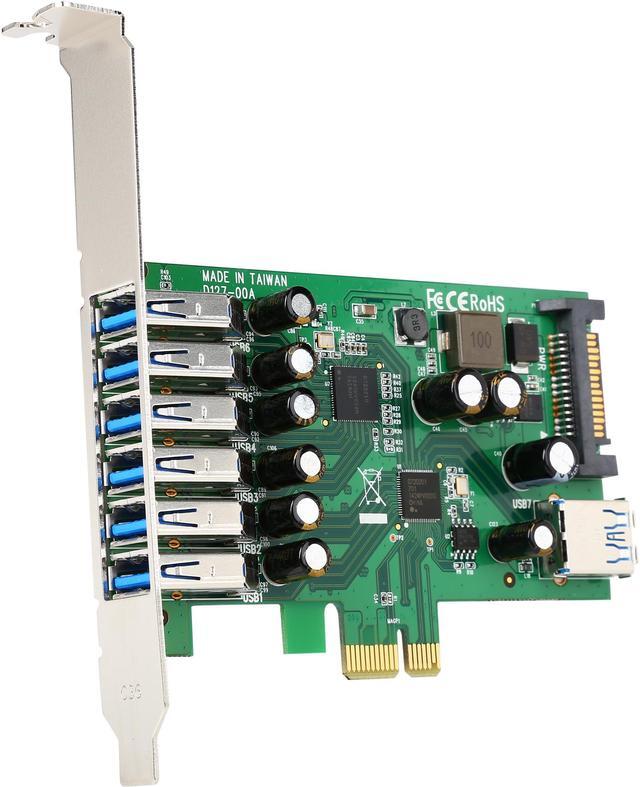

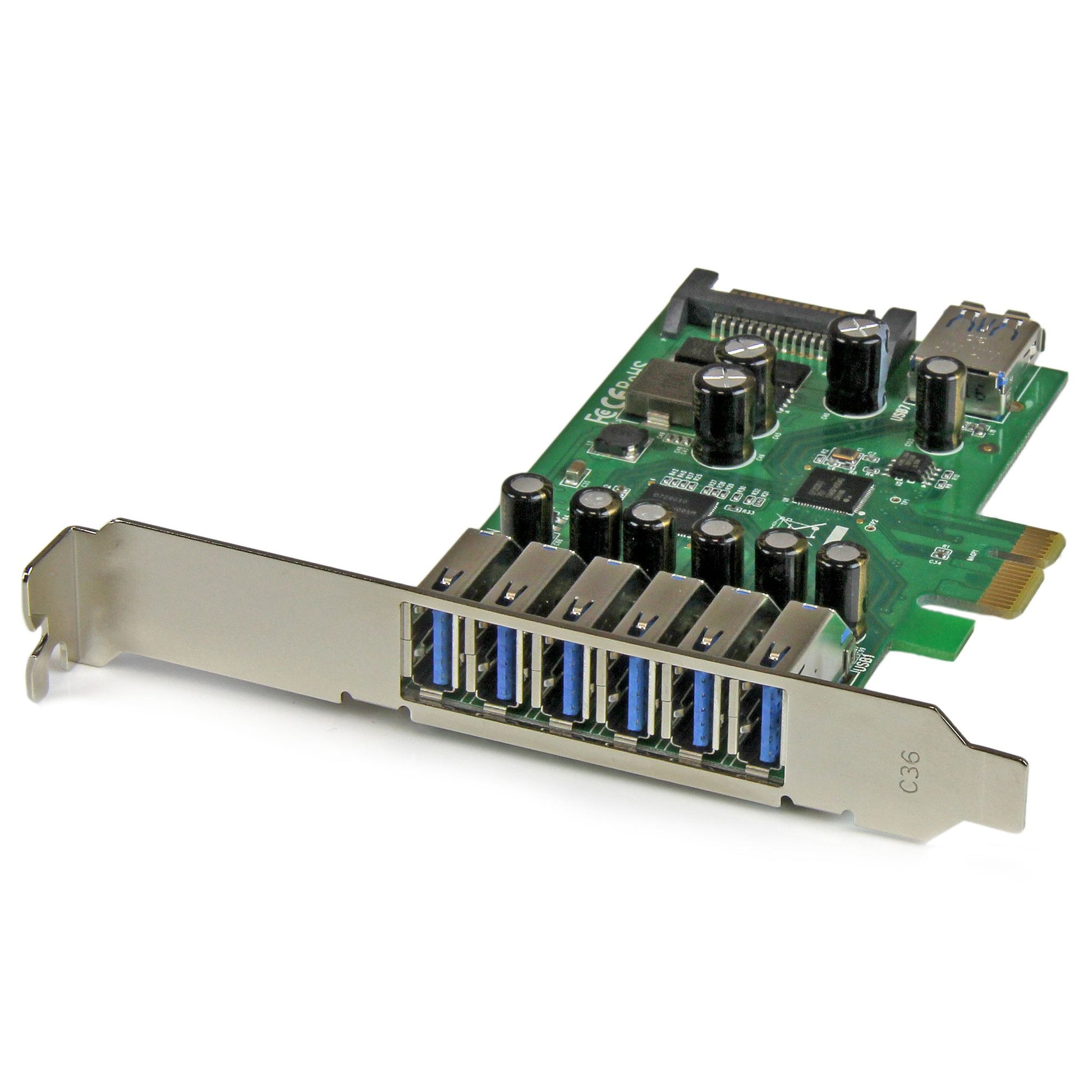

StarTech 7-Port PCIe USB 3.0 Card with Internal/External Ports - PEXUSB3S7

VENDOR: STARTECH Mfg Part#: PEXUSB3S7 UPC#: 065030860345
1 5
Photo is for illustration purposes only. Actual product may be different.
$71.80
$71.80
Sale Sold out
MSRP: $76.99
Shipping calculated at checkout.
  • Supports seven USB 3.0 ports: 6 external and 1 internal
  • PCI Express interface with data transfer rate up to 5 Gbps
  • Includes both standard and low-profile brackets for flexible installation
  • UASP support on Windows 8/8.1 systems for enhanced performance
  • Backwards compatible with USB 2.0/1.1 devices
  • Two-year manufacturer’s warranty with TAA compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Expands USB 3.0 connectivity with seven ports, ideal for high-speed external devices.
  • Supports UASP for improved transfer speeds on Windows 8/8.1, enhancing productivity.
  • Designed for flexible deployment with standard and low-profile brackets, plus TAA compliance.

Product Overview

Get the scalability you need by adding 7 USB 3.0 ports with SATA power to your computer - PCIe USB 3.0 Adapter Card - Standard Low-Profile - UASP Support - 1 Internal 6 External Ports - Native OS Support in Windows 8 8.1 - Backward compatible

Specifications

Product Overview
Product Type PCI Express USB 3.0 Expansion Card
Form Factor Plug-in card – Standard and Low Profile bracket included
Host Interface PCI Express x4 (compatible with x4, x8, x16 slots)
Number of USB Ports 7
Operating System Support Windows 8, 8.1, 10, Linux 3.5+, macOS 10.9+
Chipset Renesas / NEC D720201
Weight 130 g
Power Requirements SATA power connector required for supplemental power
Warranty 2 Years

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS, REACH
Environmental Standards RoHS Compliant
MTBF 94,732 hours

Advanced Security Features
Hardware Security Features

Interfaces
External USB Ports 6 x USB 3.0 Type-A Female
Internal USB Port 1 x USB 3.0 Type-A Female
Interface Type USB 3.0 (SuperSpeed USB)
Data Transfer Rate Up to 5 Gbps
Backward Compatibility USB 2.0 and USB 1.1
Port Type USB 3.0 Type-A
Bandwidth Up to 4 Gbps shared across all ports

Physical & Environmental
Width 0.6 in (1.5 cm)
Depth 4.1 in (10.4 cm)
Height 4.7 in (11.9 cm)
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 20% to 80% RH (non-condensing)

Cloud Management & Licensing
Cloud Management
Licensing Requirements None
