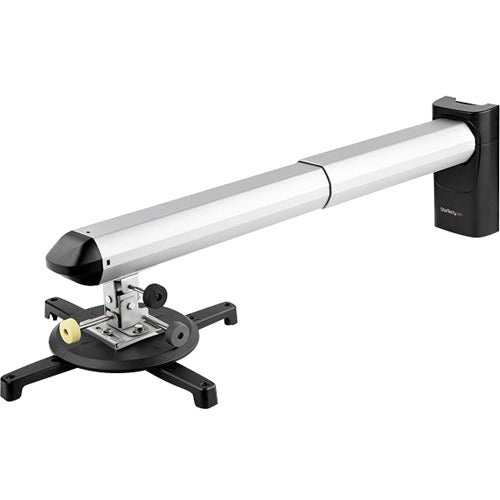

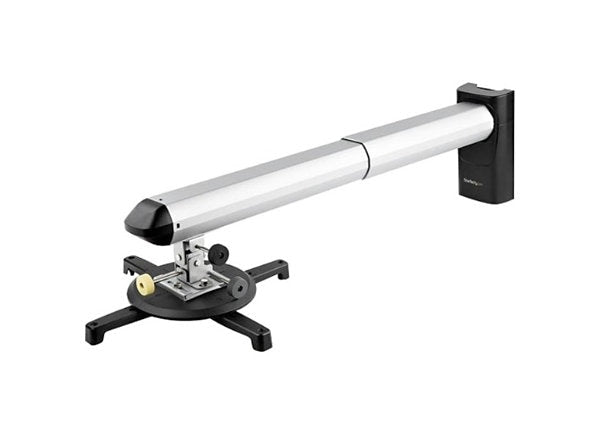

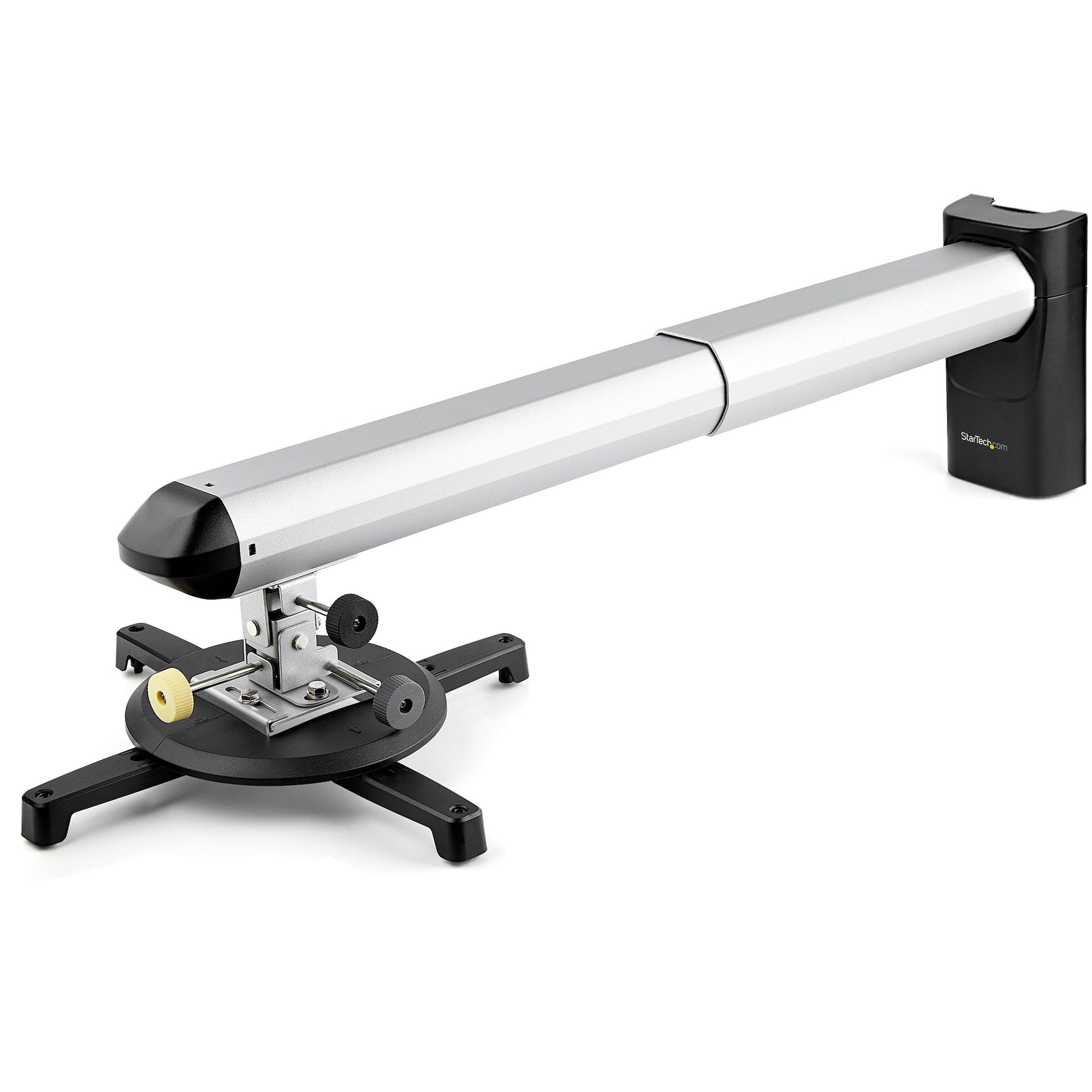

StarTech Adjustable Projector Wall Mount, 33lb Capacity, Extendable Arm

VENDOR: STARTECH Mfg Part#: PROJWALLMNT UPC#: 065030884143
1 5
Photo is for illustration purposes only. Actual product may be different.
$213.17
$213.17
Sale Sold out
MSRP: $214.99
Shipping calculated at checkout.
  • Supports short and ultra-short throw projectors up to 33 lb
  • Extendable arm from 16.5 to 27.7 inches from wall
  • Fits projectors with 3 or 4 mounting holes, up to 12.8 inch diameter
  • Precision dials for fine-tuning alignment and positioning
  • TAA compliant for government procurement
  • Manufactured in Taiwan for build quality assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Compatible with a wide array of projector models using standard 3 or 4-hole patterns, increasing installation flexibility
  • Designed for precision, the adjustable dials allow exact positioning for optimal image alignment
  • TAA compliance ensures suitability for government and institutional projects, broadening potential usage

Product Overview

Universal projector wall mount kit (short/ultra-short throw) supports up to 33lb - Dials for precise adjustability / Projector mount with extendable arm (16.5 to 27.7in from wall) - For projectors w/ 3 or 4 mounting hole patterns (up to 12.8in dia.)

Specifications

Product Overview
Product Type Adjustable Projector Wall Mount
Mounting Type Wall Mount
Supported Device Type Short/Ultra Short Throw Projectors
Load Capacity 33 lb (15 kg)
Compatible Mounting Hole Patterns 3 or 4 hole patterns up to 12.8 in (325 mm) diameter
Extension Range from Wall 16.5 in to 27.7 in (420 mm to 705 mm)
Adjustability Tilt, Swivel, Arm Extension, and Rotation with Precision Dials
Rotational Adjustment ±8° Roll, ±8° Tilt, ±360° Swivel
Form Factor Adjustable Arm with Wall Mount Bracket
Product Weight 6.8 lb (3.1 kg)
Material Steel and Aluminum
Finish Powder Coated
Color White and Silver

Physical & Environmental
Dimensions (H x W x D) 5.5 x 10 x 27.7 in (140 x 254 x 705 mm) when fully extended
Minimum Extension from Wall 16.5 in (420 mm)
Maximum Extension from Wall 27.7 in (705 mm)
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
Operating Humidity 10% to 80% RH (non-condensing)

Cloud Management & Licensing
Remote Management
Cloud-Based Features
Software Licensing Required

Wireless Features
Wireless Capability No

Interfaces
Mounting Interface Adjustable Mounting Arms with Universal Mount Design
Cable Management Integrated Cable Management Channels

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
RoHS Compliance Yes
REACH Compliance Yes
CE Certification Yes
Warranty 2 Years
Environmental Standards RoHS, REACH

Advanced Security Features
Security Lock Support No
Tamper-Resistant Hardware No
