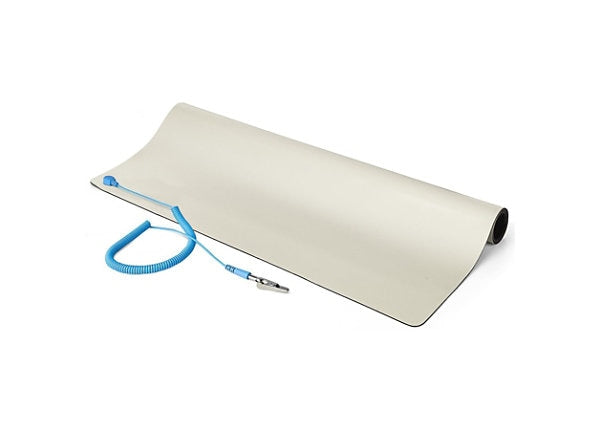

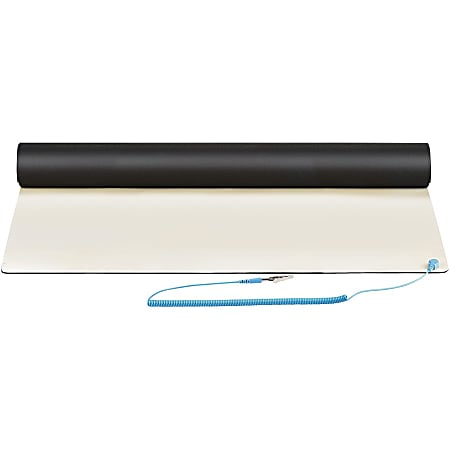

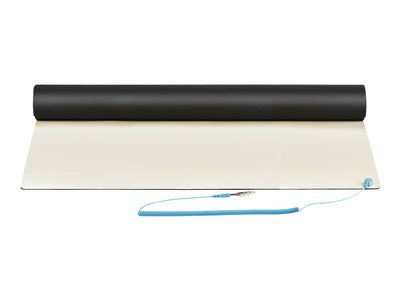

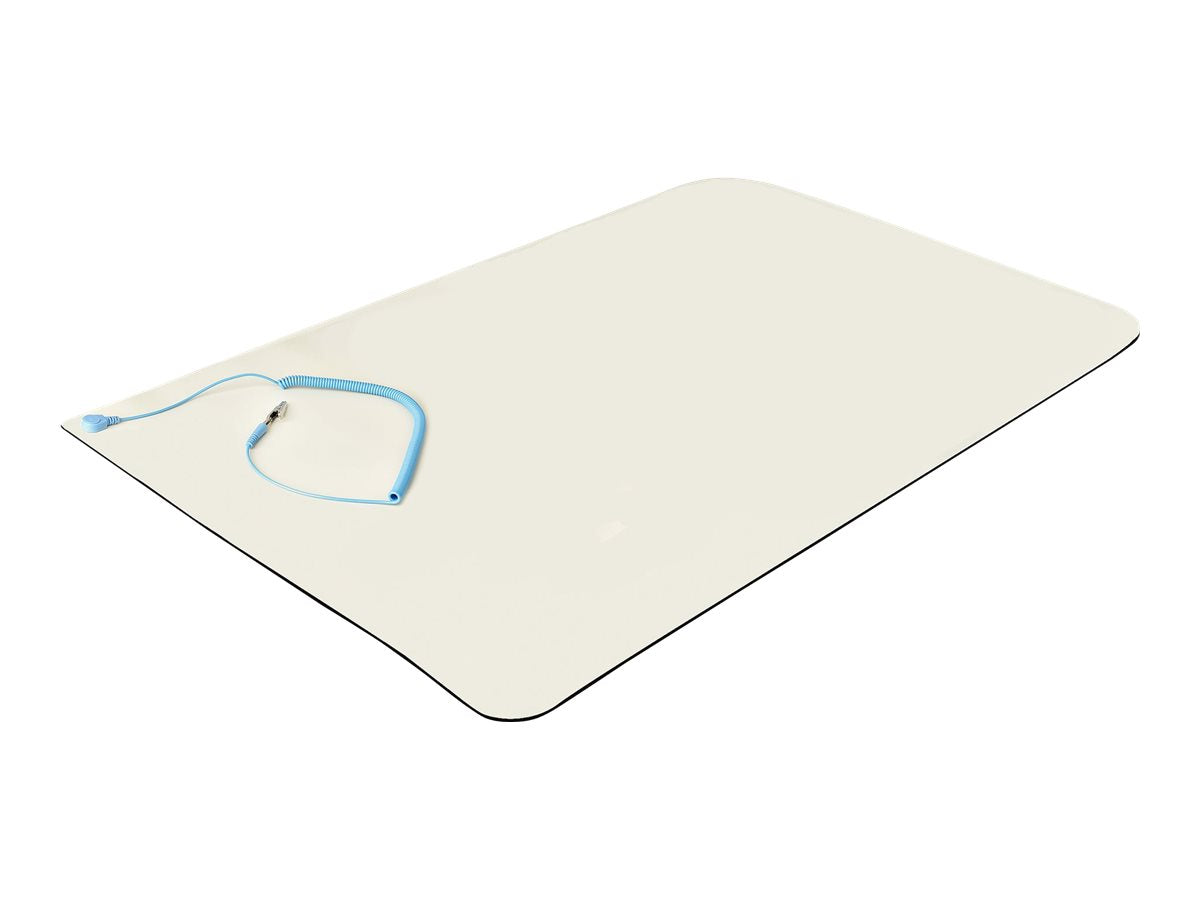

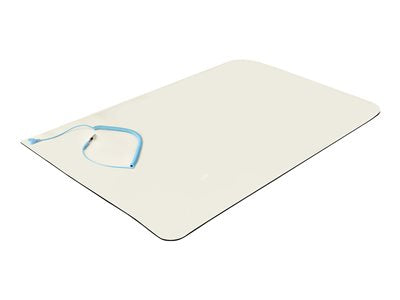

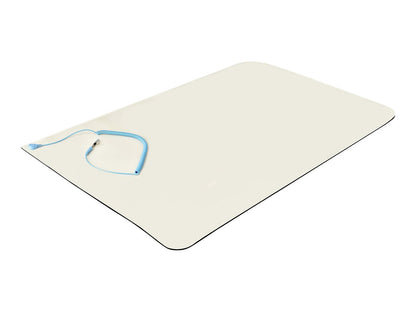

StarTech ESD Anti-Static Desk Mat, 23x47in, Beige

VENDOR: STARTECH Mfg Part#: LG-ANTI-STATIC-MAT UPC#: 065030894623
1 5
Photo is for illustration purposes only. Actual product may be different.
$37.25
$37.25
Sale Sold out
MSRP: $46.99
Shipping calculated at checkout.
  • 23 x 47 inch anti-static mat for desktops and worktables
  • Top layer constructed from anti-static PVC for effective ESD protection
  • Complies with ANSI/ESD S4.1 standard for professional use
  • Beige color for clean and professional appearance
  • Includes 2-year service and support warranty
  • TAA-compliant and manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Protects sensitive electronics by safely dissipating electrostatic charges during technical work
  • Ensures compliance with ANSI/ESD S4.1 and TAA standards for regulated or professional environments
  • Practical, large-size mat ideal for desks and repair stations without compromising flexibility

Product Overview

The ESD mat helps prevent damage from an electrostatic discharge. The size of the ESD table mat is 23 x 47 in - The electrical grounding mat complies with ANSI/ESD S4.1 - Use the ESD table mat for computer repair/assembly, server rooms, lab testing

Specifications

Product Overview
Product Type ESD Anti-Static Desk Mat
Form Factor Tabletop
Color Beige
Material Top Layer - Anti-Static PVC
Length 47 in (1.2 m)
Width 23 in (0.6 m)
Thickness 0.08 in (2 mm)
Weight 2.23 lb (approximate)
Power Requirements Grounding wire connection only (no external power)
Surface Resistance 10^6 to 10^9 ohms
Service & Support 2 Years Limited Warranty

Physical & Environmental
Mat Dimensions (W x D x H) 23 x 47 x 0.08 in (0.6 x 1.2 x 0.002 m)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
Operating Humidity 10% to 90% RH, non-condensing
Storage Humidity 5% to 95% RH, non-condensing
Rollable for Storage Yes
Reusable Yes
Anti-fatigue Properties No

Cloud Management & Licensing
Cloud Managed
License Required

Interfaces
Grounding Cable Included Yes
Grounding Cable Length 6 ft (1.8 m)
Connector Type on Grounding Cable Banana Plug to Ring Terminal
Snap Connector Yes (10mm male snap)

Compliance & Origin
Compliance Standards ANSI/ESD S4.1
Certifications RoHS, REACH
TAA Compliant Yes
Country of Origin Taiwan

Advanced Security Features
ESD Protection Level Protects sensitive electronics from ESD levels per ANSI/ESD S4.1
Use Cases Computer assembly, server repairs, electronics labs, testing environments
