StarTech Industrial 8-Port Gigabit PoE+ Switch, 30W PSE IESC1G80UP

VENDOR: STARTECH Mfg Part#: IESC1G80UP UPC#: 065030889605
1 5

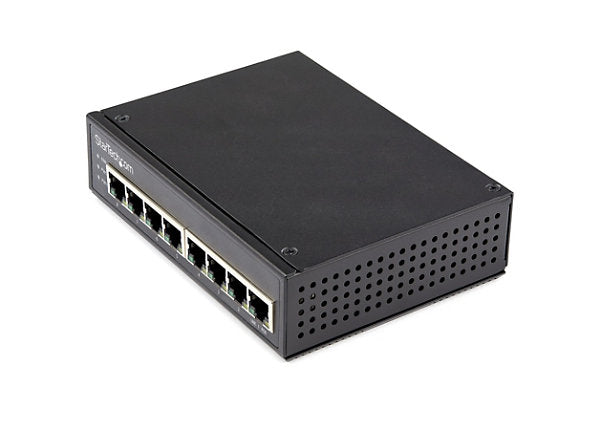

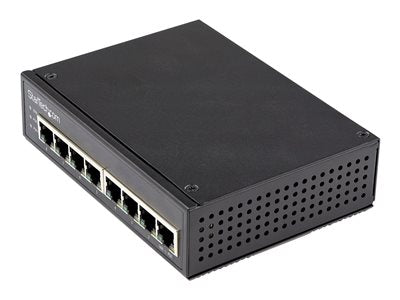

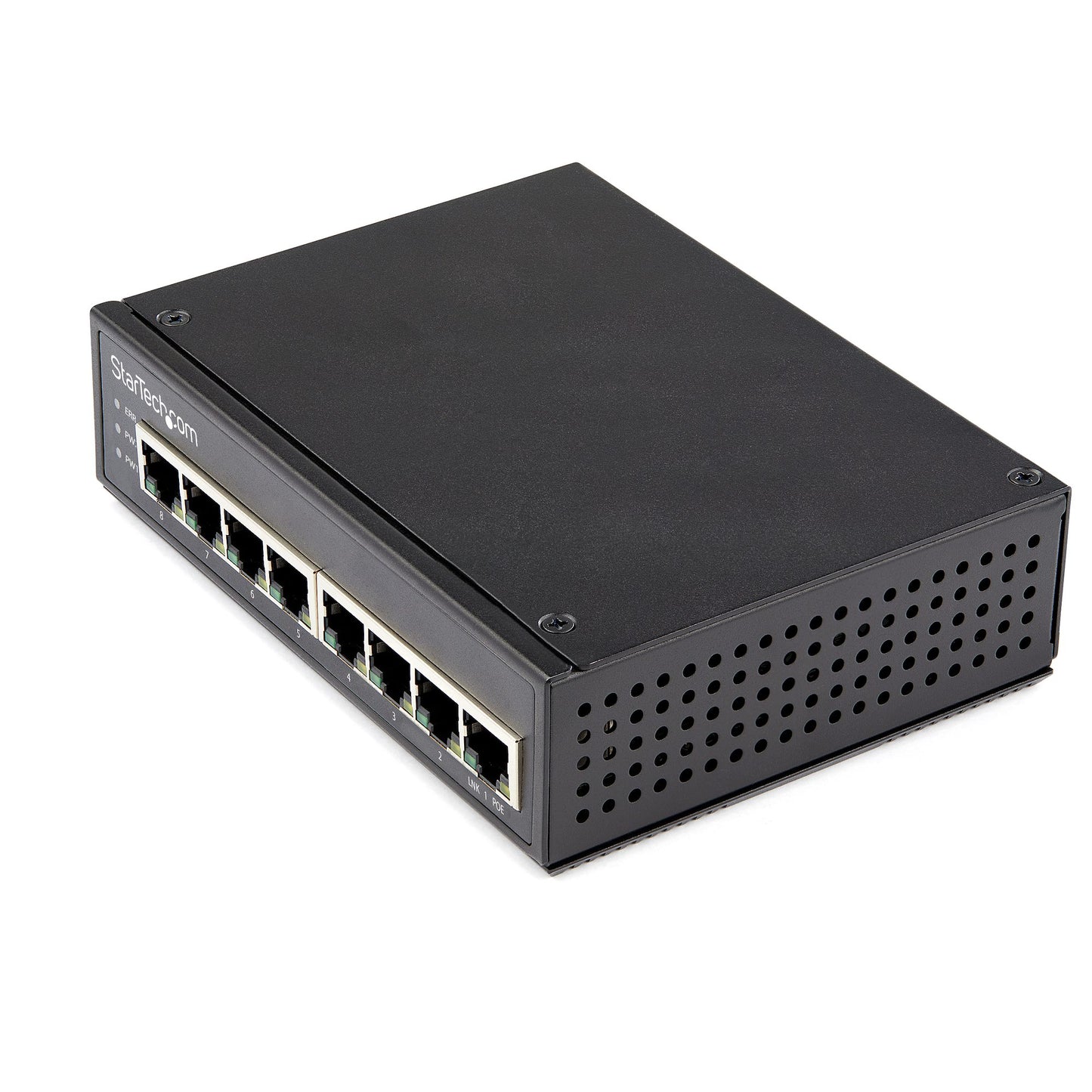

Photo is for illustration purposes only. Actual product may be different.
$455.99
$455.99
Sale Sold out
Shipping calculated at checkout.
  • - 8-port unmanaged Gigabit switch with IEEE 802.3af/at PoE+ support
  • - Up to 30W PSE per port for powering PoE-enabled devices
  • - Hardened IP-30 rated metal enclosure for industrial durability
  • - Wide operating temperature range from -40°C to 75°C
  • - Dual redundant power input option for enhanced uptime
  • - DIN rail and wall mountable for flexible deployment

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports high-power PoE+ output (30W per port), enabling direct powering of access points, cameras, and VoIP devices.
  • Industrial-grade durability with IP-30 rating and wide temperature tolerance (-40°C to 75°C) ensures dependable operation in extreme environments.
  • Unmanaged plug-and-play design with redundant power inputs simplifies network deployment while maximizing service uptime.

Product Overview

8 Port Gigabit PoE switch 30W PSE power per port to devices w/GbE on Cat5e/6 - Power over Ethernet Network IEEE 802.3af/at /10/100/1000 Mbps /Unmanaged /Alarm Relay /DIN/Wall Mount /Redundant Power Input IP-30 /Industrial Hardened -40C to 75C temp

Specifications

Product Overview
Product Type Unmanaged Industrial Ethernet Switch
Form Factor DIN Rail or Wall Mountable
Weight 640 g
Power Requirements 12~48V DC redundant power input
Max Power Consumption 206 Watt
PoE Power Budget 200W
PoE Per Port Output Up to 30W (IEEE 802.3at)
PoE Standards Supported IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

Physical & Environmental
Width 4.1 in (104 mm)
Depth 5.6 in (142 mm)
Height 1.6 in (41 mm)

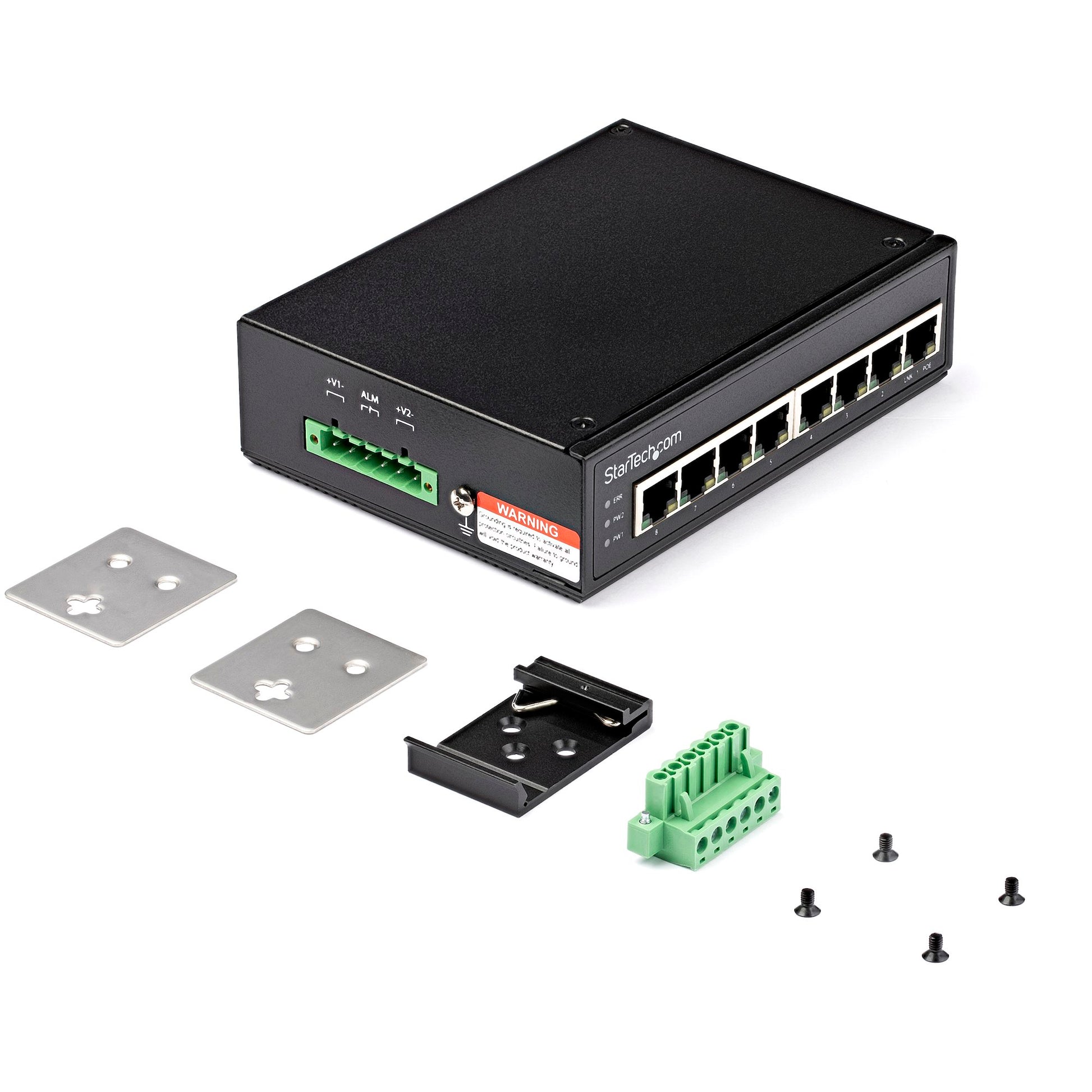

Mounting Options DIN Rail & Wall Mount
Enclosure Type IP30-rated metal housing
Operating Temperature Range -40°C to 75°C
Storage Temperature Range -40°C to 85°C
Operating Humidity 5% to 95% (non-condensing)
Vibration Resistance EN 50155 (Railway Applications)
Shock Resistance IEC 60068-2-27
Altitude Limit Up to 10,000 ft

Cloud Management & Licensing
Management Interface Unmanaged
Licensing Required No
Cloud Support No

Interfaces
Ethernet Ports 8 x 10/100/1000Base-T RJ-45 (PoE+)
Port Type RJ-45
Data Link Protocol Gigabit Ethernet
Throughput 11.9 Mpps @64 Bytes
Switching Capacity 16 Gbps
Packet Buffer Memory 2 Mbit
MAC Address Table Size 8K entries
Auto MDI/MDI-X Yes
Auto-Negotiation Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, UL, RoHS, REACH
EMI/EMC Compliance EN55022, EN55024, FCC Part 15

Advanced Security Features
Alarm Relay Output 1 x Contact Relay for Power Failure Alarm
Redundancy Support Dual Redundant Power Inputs
