Products Accessories and Cables TRENDnet Outdoor IP66 Steel...

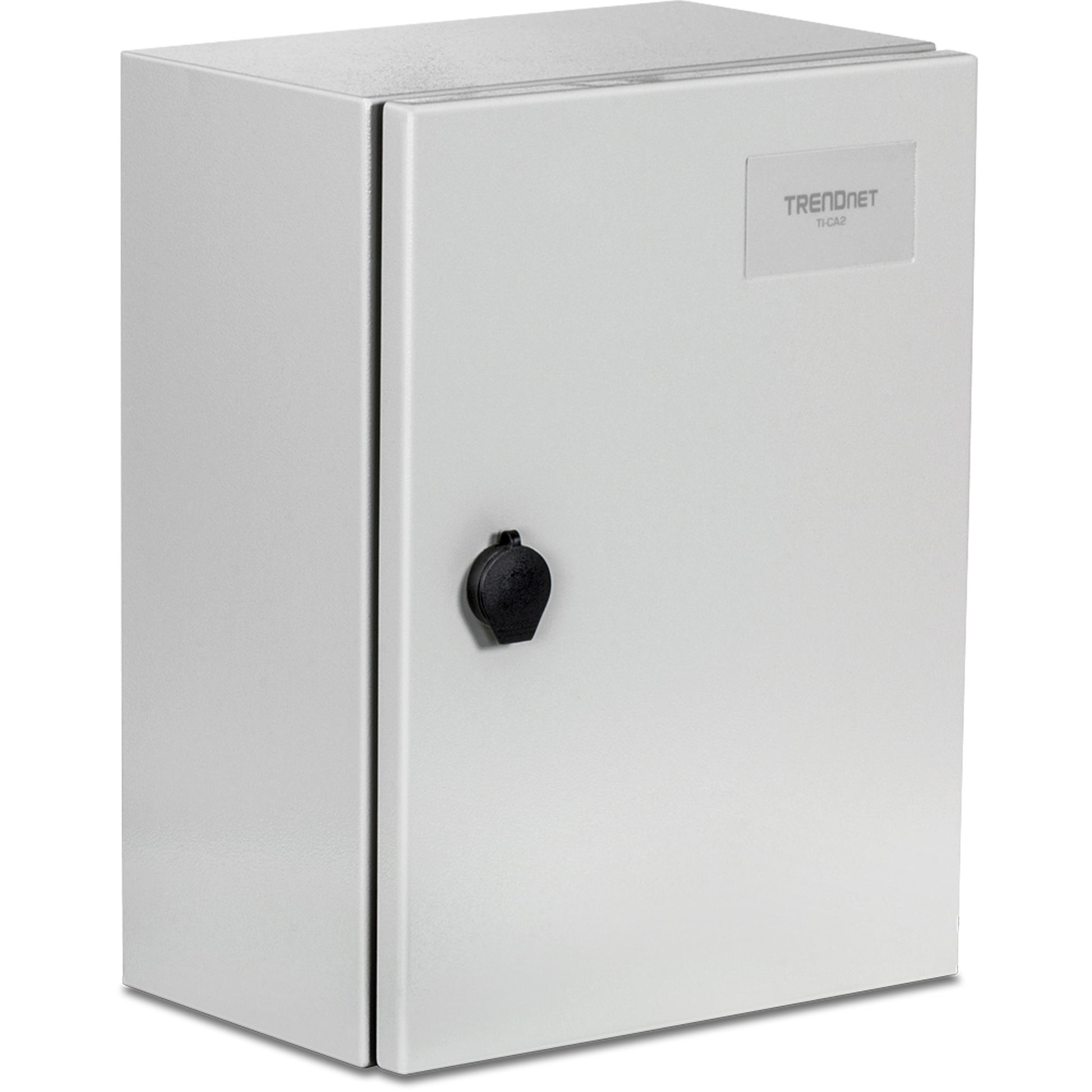

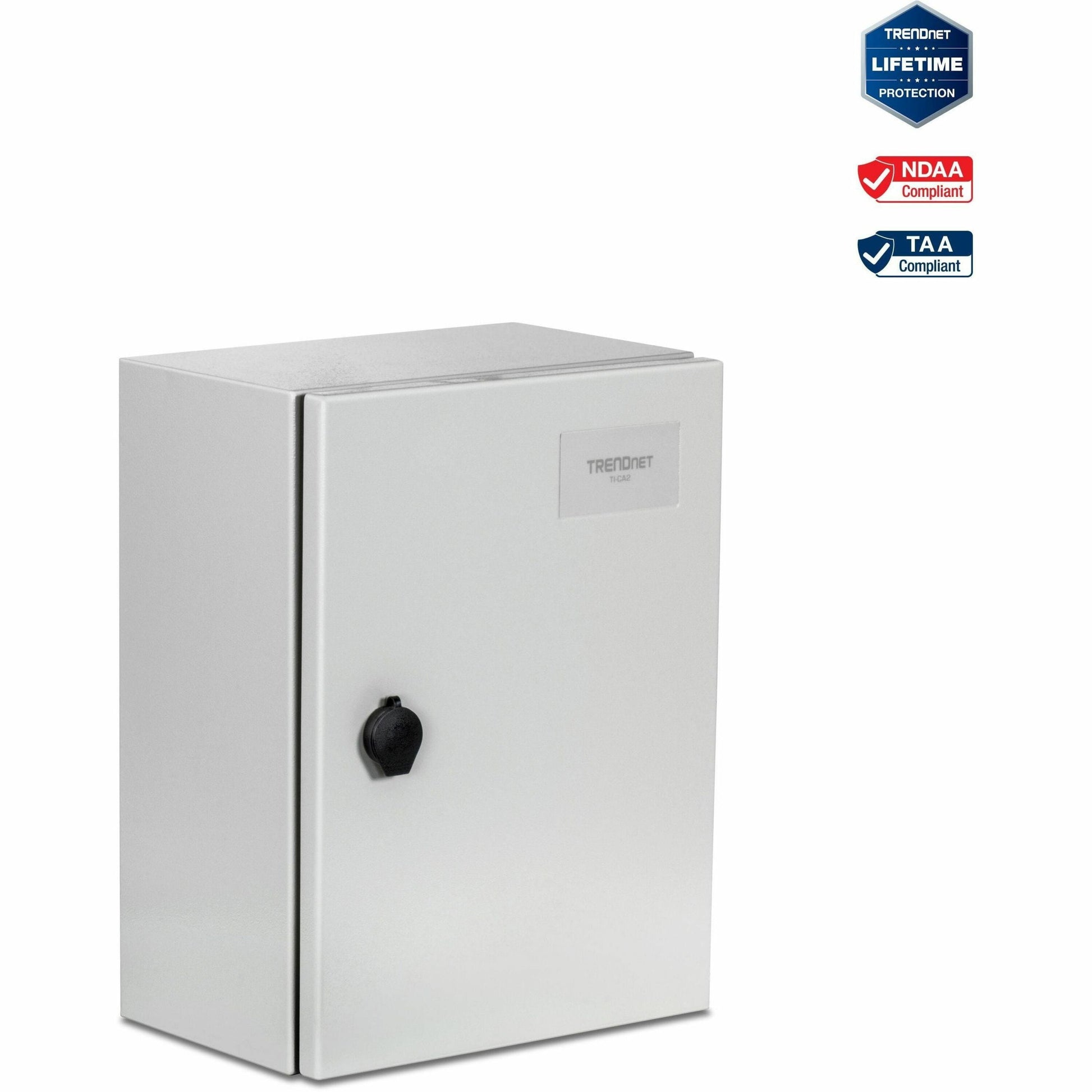

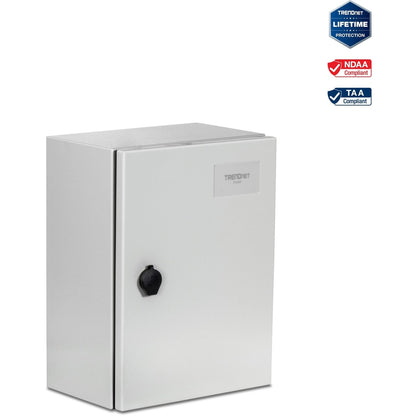

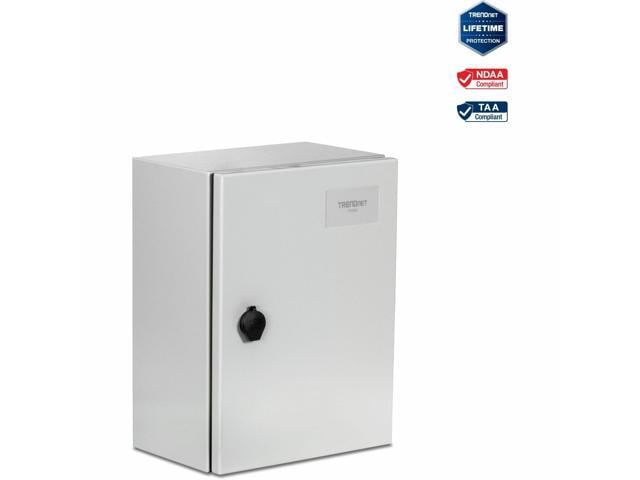

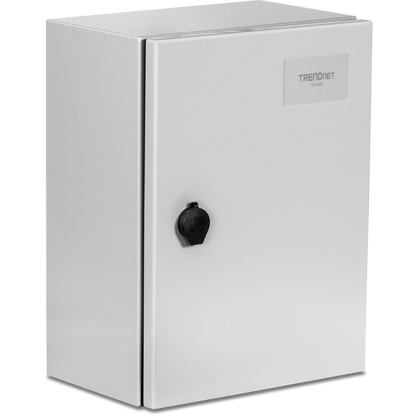

TRENDnet Outdoor IP66 Steel Enclosure with Lockable Hinged Door

VENDOR: TRENDNET Mfg Part#: TI-CA2 UPC#: 710931161939
1 5
Photo is for illustration purposes only. Actual product may be different.
$232.24
$232.24
Sale Sold out
MSRP: $234.99
Shipping calculated at checkout.
  • Industrial-grade steel enclosure with IP66 weather rating
  • Lockable hinged door for secure access
  • Suitable for TRENDnet industrial switches, converters, and injectors
  • TAA compliant and manufactured in Taiwan
  • Designed for rugged outdoor and industrial applications

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Provides reliable environmental protection for sensitive networking hardware with IP66 rated steel housing.
  • Ensures security and easy maintenance through a lockable hinged door design ideal for field deployments.
  • TAA compliance and Taiwanese manufacturing meet procurement standards for federal and commercial projects.

Product Overview

The TRENDnet Outdoor IP66 Steel Enclosure with Lockable Hinged Door, model TI-CA2, is well suited for use with TRENDnets line of industrial switches, fiber converters, and PoE injectors.

Specifications

Product Overview
Product Type Outdoor Steel Enclosure
Model TI-CA2
Form Factor Wall Mountable
Material Steel
Enclosure Rating IP66
Door Type Hinged with Lockable Latch
Color Gray
Weight 3.7 kg (8.2 lbs.)
Power Requirements Not applicable (passive enclosure)

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications IP66, NEMA-4X
RoHS Compliant Yes
REACH Compliant Yes
Halogen-Free Yes

Advanced Security Features
Physical Locking Mechanism Steel latch supports padlock (not included)
Tamper Protection Hinged door with secure latch design
Ingress Protection IP66 rated for dust and heavy water spray

Compatibility
Compatible Products TRENDnet industrial switches, PoE injectors, and fiber converters
Internal Mounting Options DIN-rail and optional component mounting

Interfaces
Cable Glands Yes, 4 included
Knockout Holes Yes, multiple sizes
Internal Mounting Plate Yes, pre-installed steel plate

Physical & Environmental
External Dimensions (WxDxH) 200 x 300 x 120 mm (7.9 x 11.8 x 4.7 in.)
Internal Mounting Plate Dimensions 192 x 292 mm (7.5 x 11.5 in.)
Operating Temperature -40° – 75°C (-40° – 167°F)
Storage Temperature -40° – 85°C (-40° – 185°F)
Operating Humidity Max 95% non-condensing
Installation Type Wall-Mount, includes built-in rear mounting brackets
Enclosure Type NEMA-rated industrial housing

Cloud Management & Licensing
Cloud Management Support Not applicable

Included Accessories
Wall Mounting Brackets Yes, integrated
Cable Glands 4 included
Mounting Plate Pre-installed steel backing plate
Installation Guide Yes
